46 GERBER EDGE Owner's Guide

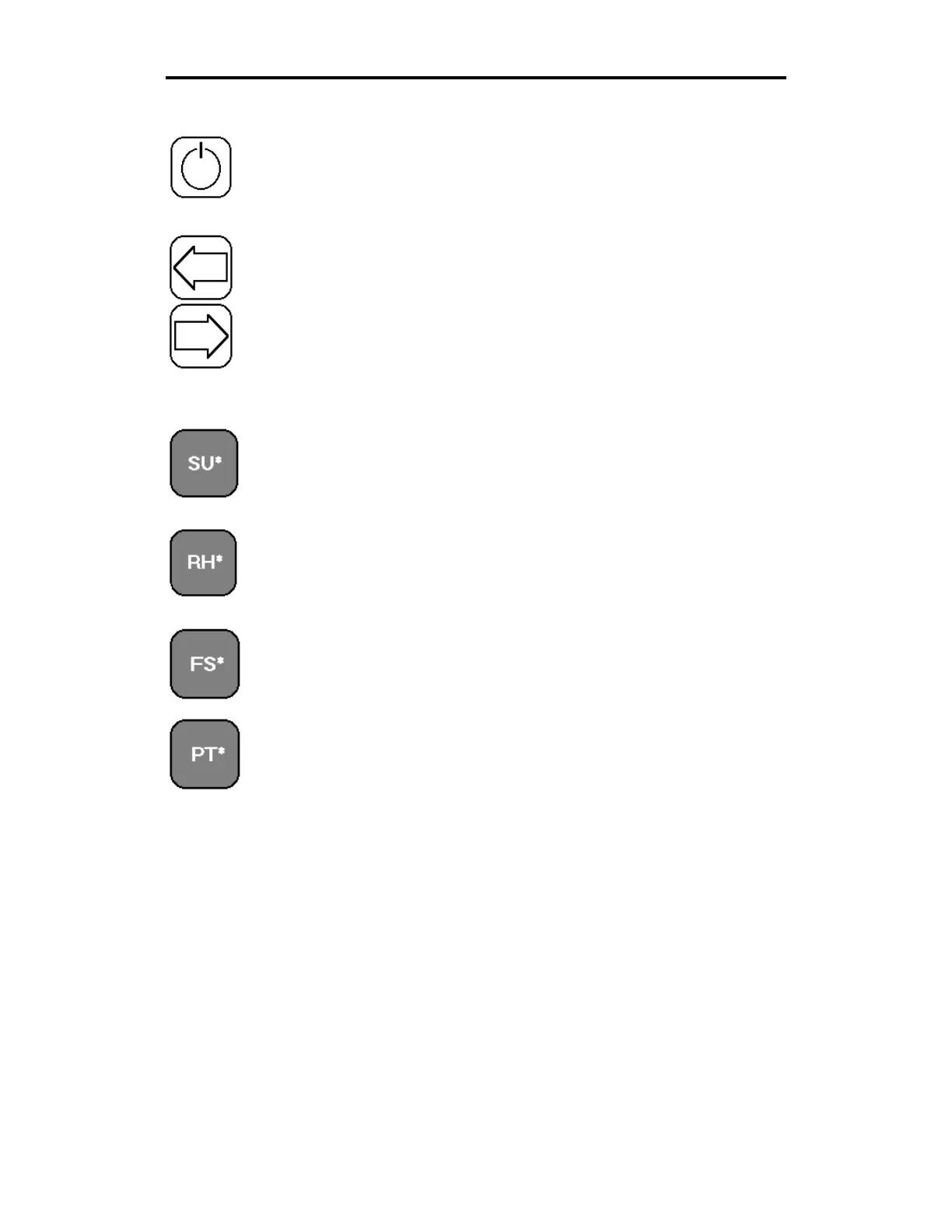

ON is the Online key. This key is used to set the GERBER EDGE
online and acknowledging message prompts. It is also used to interrupt
printing and enter the "Paused" mode, and to restart printing from the
"Paused" mode.
VS are the two Vinyl Slew keys. These keys are used to slew the vinyl
and make selections in the Setup menu.
UNLABELED KEYS
SU* is the Setup key. It is used to open the Setup menu, which allows
you to change the print test pattern or the GERBER EDGE
checksum. Pressing the Reset key returns the GERBER EDGE to
Offline.
RH* is the Rehome key. It is used to rotate the cam wheel to its home
position. Use this key if you drop the cover and the cam wheel moves
from the home position. The indication that the cam wheel is not in
the home position is that you cannot raise the cover.
FS* is the Foil Slew key. It is used to advance the foil in the color
cartridge. Foil slewing stops when the key is released.
PT* is the Print Test key. It is used to continuously print the test
pattern selected in the Setup menu. Pressing the Reset key stops
printing.
Firmware Overview
The block diagram below outlines the GERBER EDGE firmware by
showing the relationships among modes and keys. The block diagram is
explained in the following paragraphs.
