The color cartridge sensor. If a color cartridge is not installed, this
sensor prevents GERBER EDGE operation. Each color cartridge
has the color it contains encoded on the label. This sensor reads the
code on the color cartridge. If the color is not the color specified in
the display, an override message appears to allow you to substitute
for the specified color and continue operation.
!
The out-of-foil sensor. When all the foil in the color cartridge is
used, the GERBER EDGE displays an out-of-foil message alerting
you to replace the color cartridge.
Using the Keypad and Display

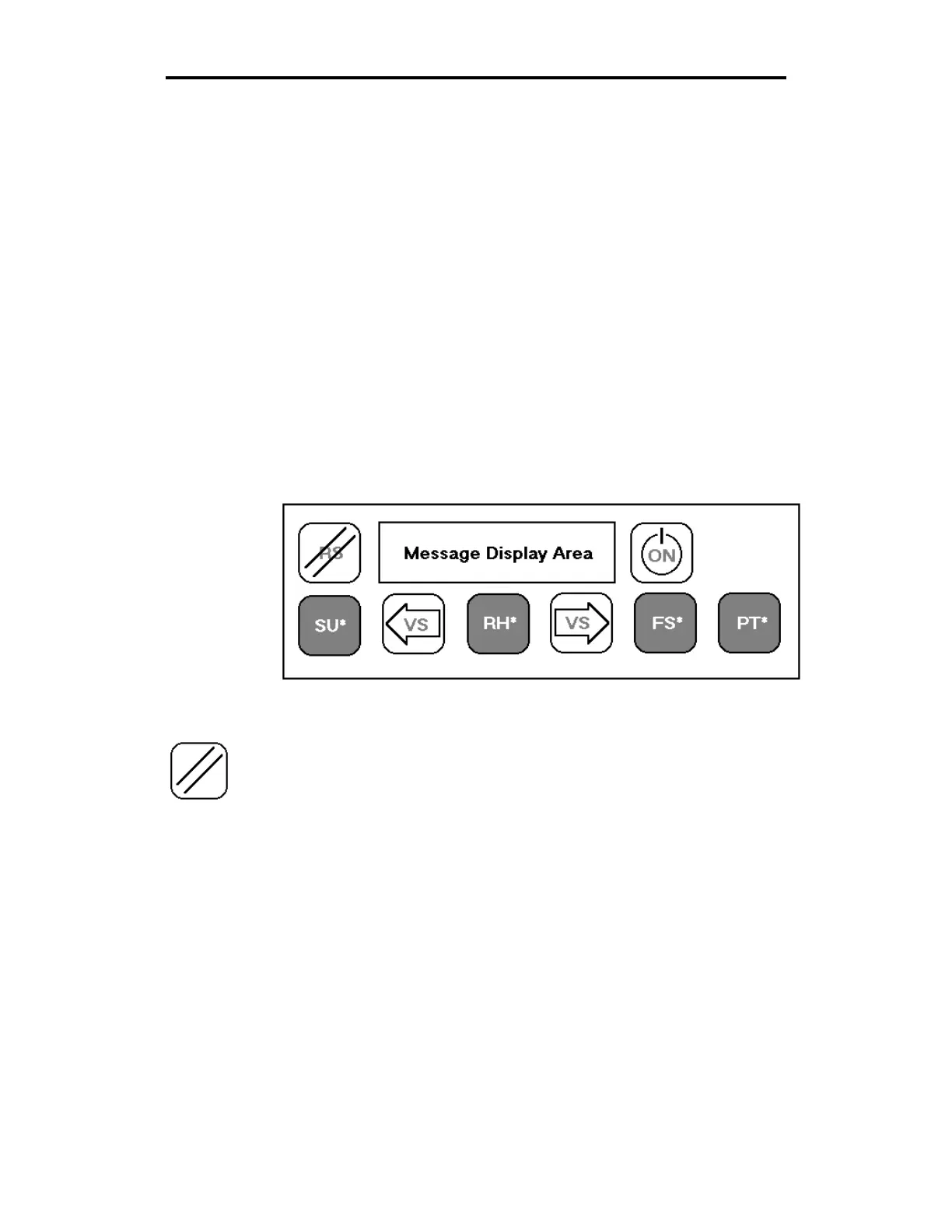

There are four labeled keys and four unlabeled or "hidden" keys on the
keypad. The illustration below shows the location of the hidden keys in
gray and the labeled keys as the existing icons. The gray abbreviations in
the icons are not actual labels on the keypad; they are used here for
explanation purposes. The gray hidden keys with the abbreviations are
not labeled on the keypad; they are used here for explanation purposes.
LABELED KEYS
RS is the Reset key. This key is used for stopping a job and setting the
GERBER EDGE offline, or to return to Offline from the Setup
menu, Print Test, or "Paused" mode. It is also used to reset the
GERBER EDGE to the original factory parameters (see the "Resetting
to Factory Parameters" paragraph in this section.
