Mechanical Description 43
THE PLATEN ASSEMBLY

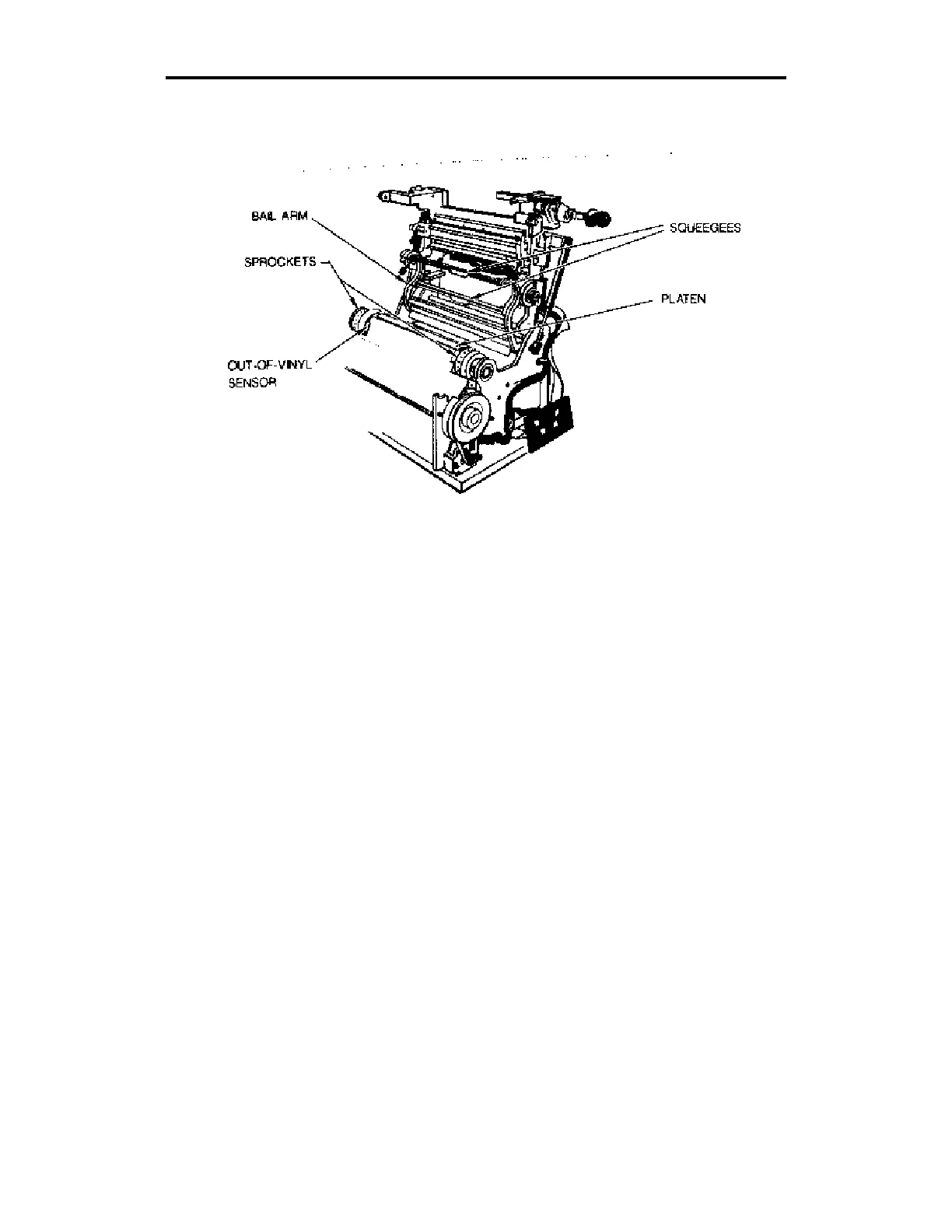

The platen assembly.
The platen assembly consists of the following parts:
!
The platen. The platen is the rubber roller on which the material
and foil are pressed tightly by the printhead.
!
The sprockets. The teeth in the drive sprockets use the holes in the
material to transport the material through the GERBER EDGE.
!
The bail arms. The bail arms hold the material in contact with the
drive sprockets. The bail arm squeegees clean the area to be printed.
!
The out-of-vinyl sensor. The GERBER EDGE will not operate if
vinyl is not loaded or if it runs out of vinyl during a job.
