Cleaning and care
57
7.12 Cleaning the Mix-Mix-System MMX
Method
1. Unlock and open the automatic door with the key.
2. Pull off the powder slide (1) on the grip wing to the front.
3. Depending on the model, remove either the outlet angle (5)
or the outlet hose from the mixing chamber (4).
4. Turn the flange (6) anticlockwise until it stops (from 6
o'clock to 5 o'clock).
5. Pull mixing chamber (4) forward.
6. Remove the separating nozzle (3) from the mixer housing.
7. Press the induction nozzle (2) out of the mixing chamber
from below.
8. Pull out the powder trap (7).
9. Remove the mixer disc (8) from the shaft (9).

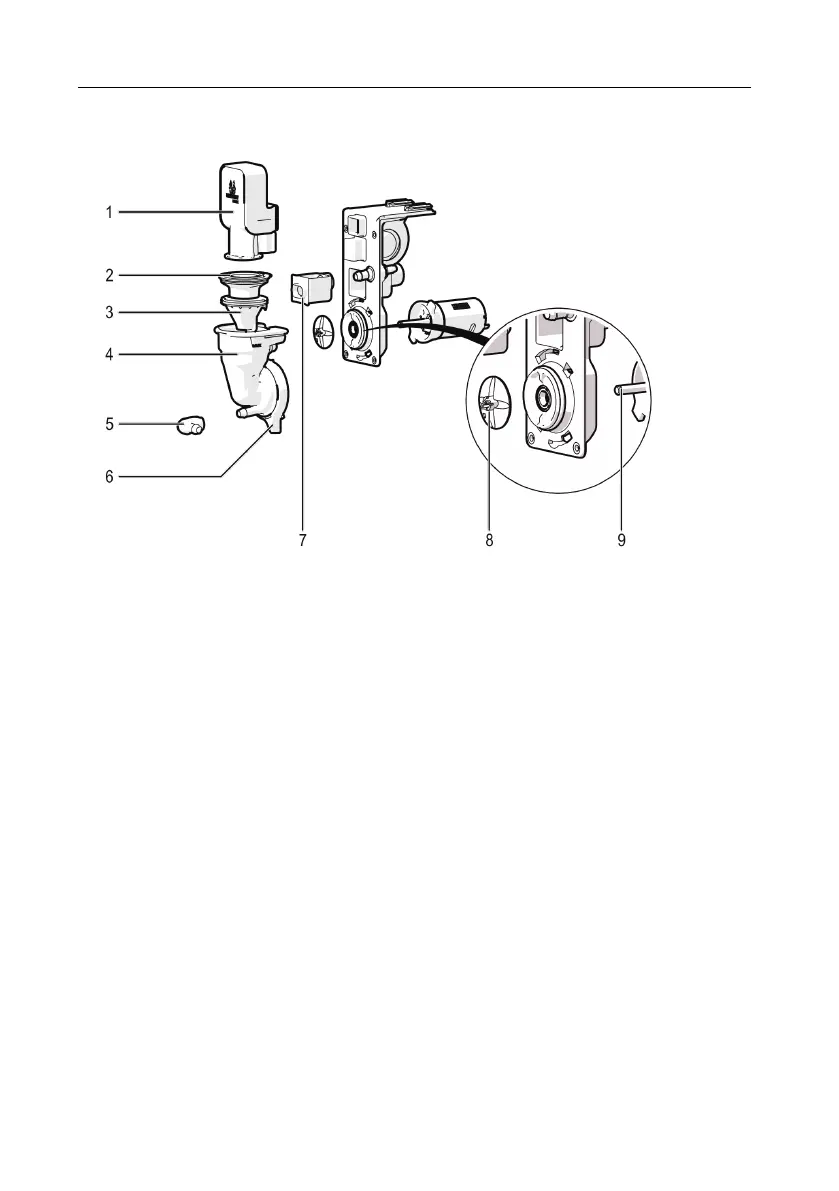

Removing the Mix-Mix-System
