1-10
Getting Started
NOTE: To remove the SIM card, slightly push in the card to release it and
then pull the card out of the slot.
3. If you have a microSD card to insert, insert it into the slot. (See “Using an
MicroSD” later for more information.)

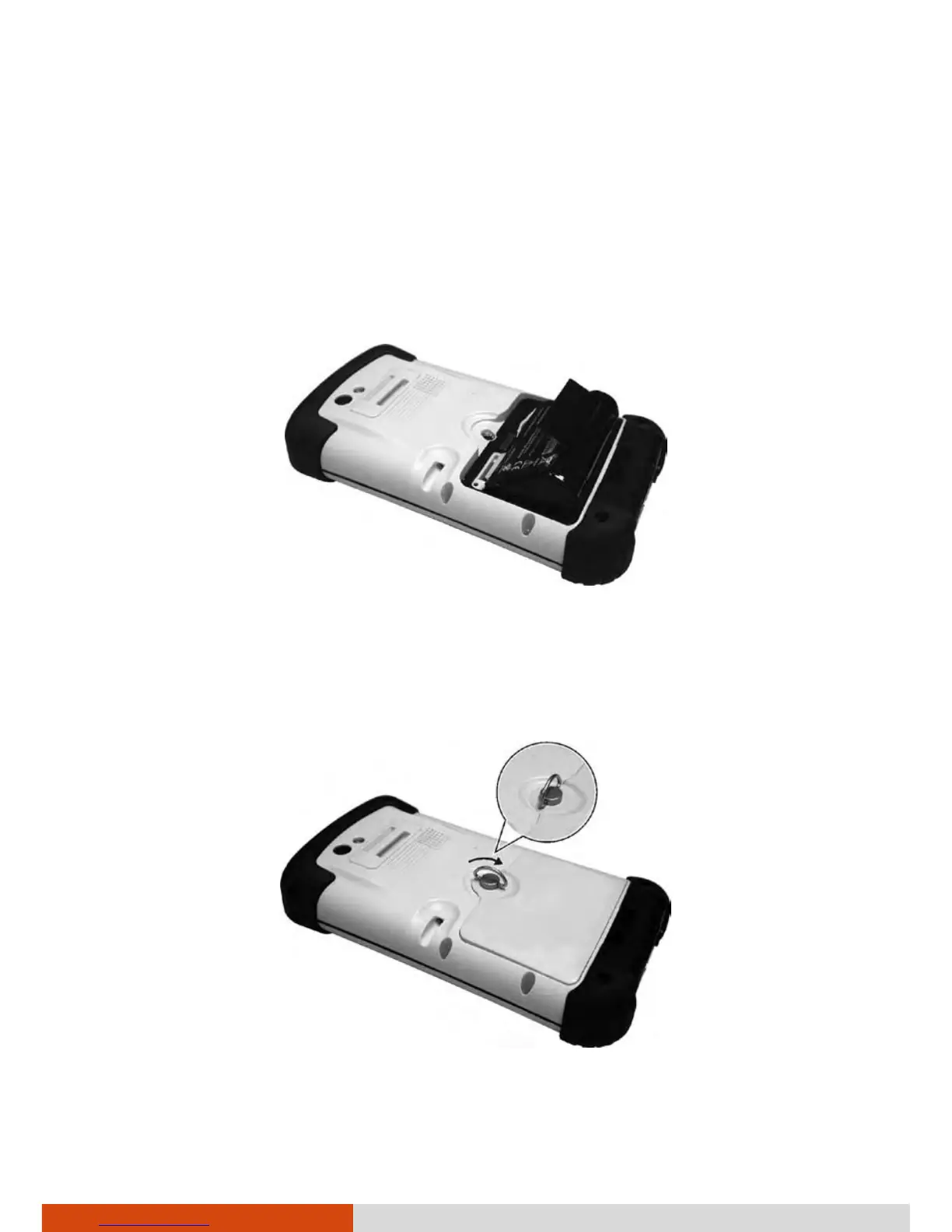

4. To install the battery, first attach the connector side of the battery to the
connector in the compartment and then lower the other side.
5. Attach the bottom side of the battery cover to the device at an angle
and then, with the handle still in the unlock (vertical) position, fit the
latch handle into place. Secure the latch by turning it clockwise to the
lock (horizontal) position.
Lock
position
