Expanding Your Computer 4-7
Using ExpressCards
Your computer has an ExpressCard slot.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very
extensive range of applications including memory, wired and wireless
communication cards, and security devices.

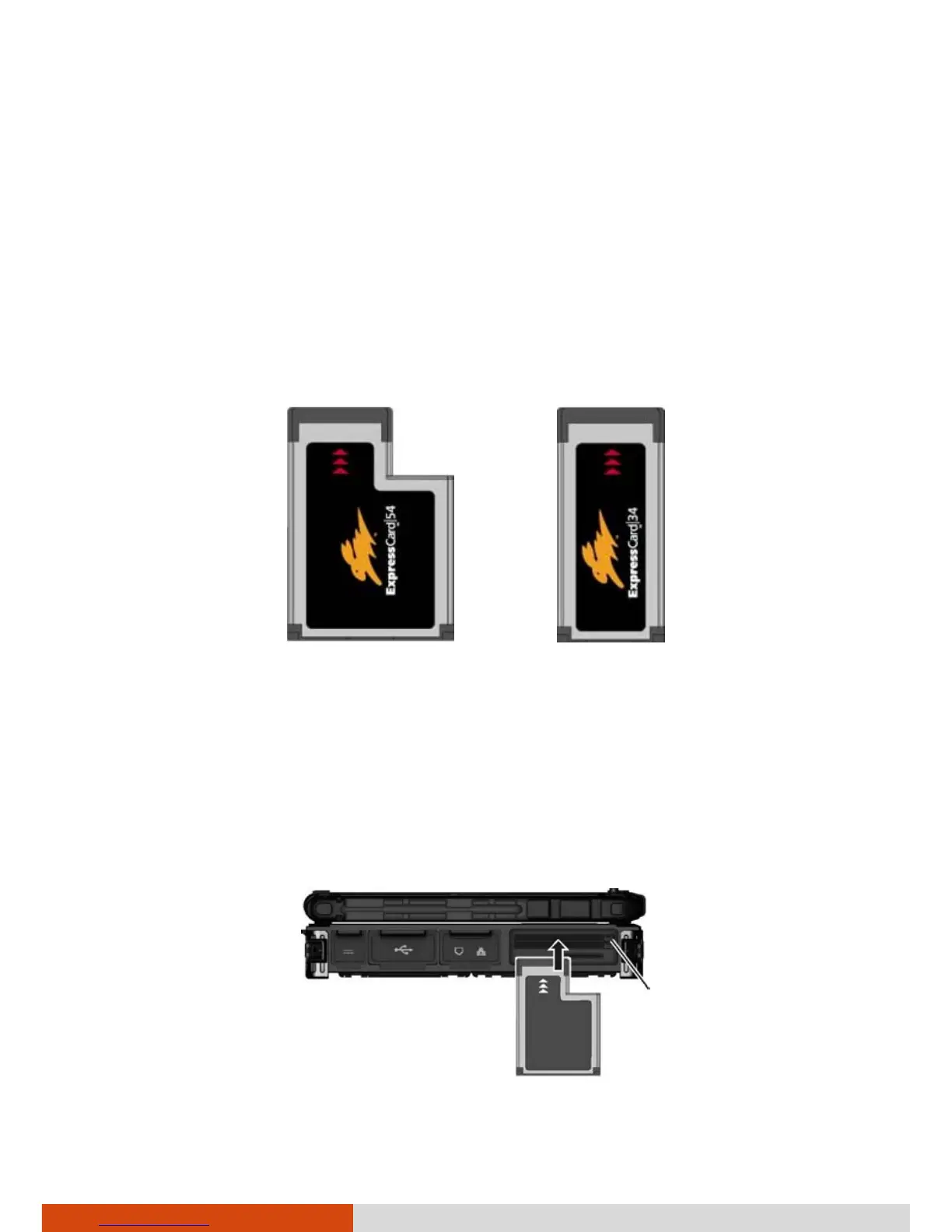

Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
To insert an ExpressCard:
1. Locate the ExpressCard slot on the left side of the computer. It can be
the upper slot (standard configuration) or lower slot depending on your
model.
2. Slide the ExpressCard, with its label facing up, all the way into the slot
until the rear connectors click into place.
Eject button
