GFA TS 971 - Mains Supply Connection

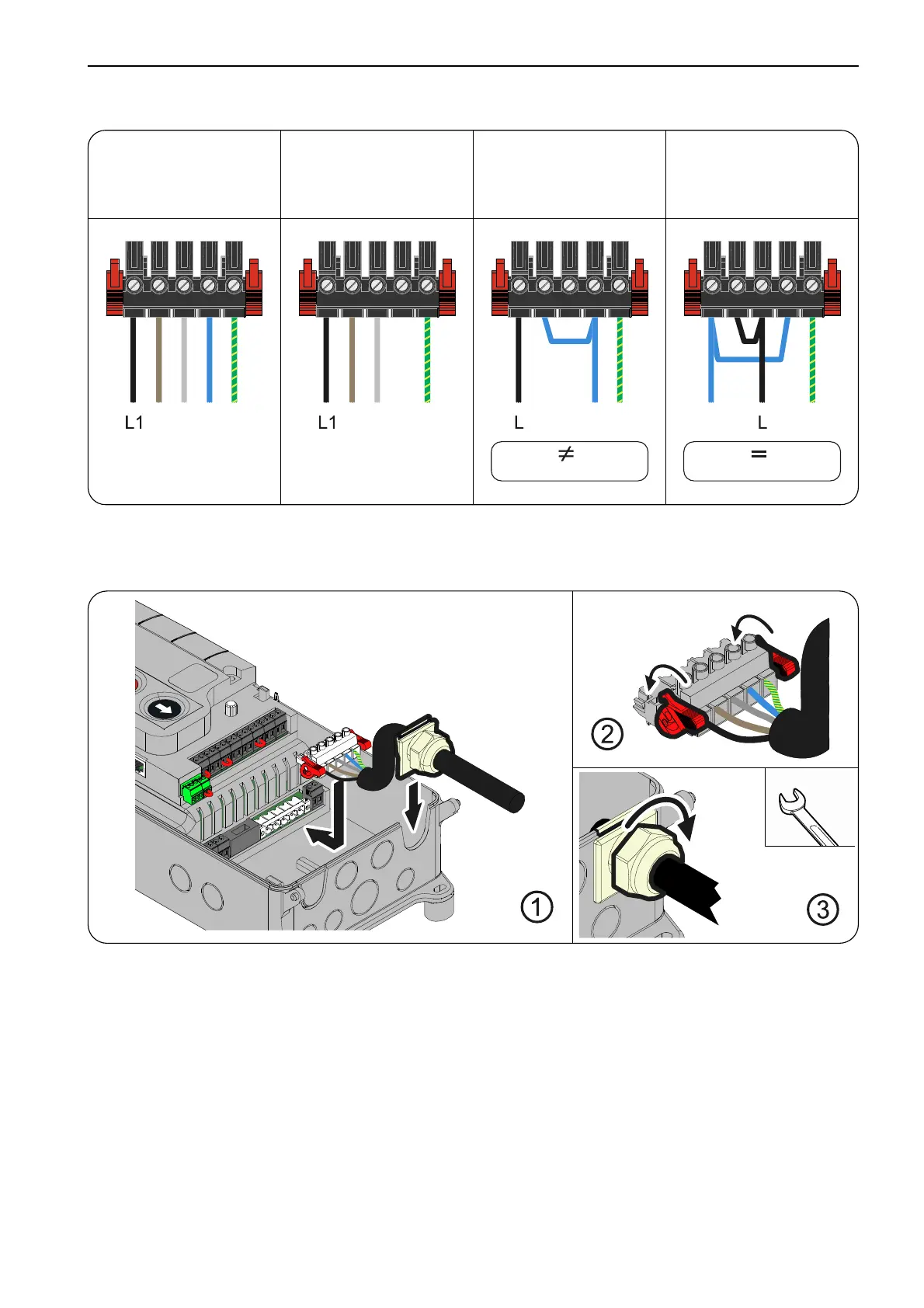

Mains connection
3~, N, PE
190 – 440 V
50 -60 Hz
3~, PE
190 – 440 V
50 -60 Hz
1~, N, PE, sym.
190 – 230 V
50 -60 Hz
1~, N, PE, asym.
190 – 230 V
50 -60 Hz
L2
L3
N
PE
L2
L3 PE
N
PE
SI 25.15WS, SI 45.7WS
NPE
SI 25.15WS, SI 45.7WS
Mains connection to control
3
Completing the electrical installation
Connect any other control devices and/or safety devices.
Install and tighten cable entries and/or cable glands.
For initial operation, leave the control covers open.
