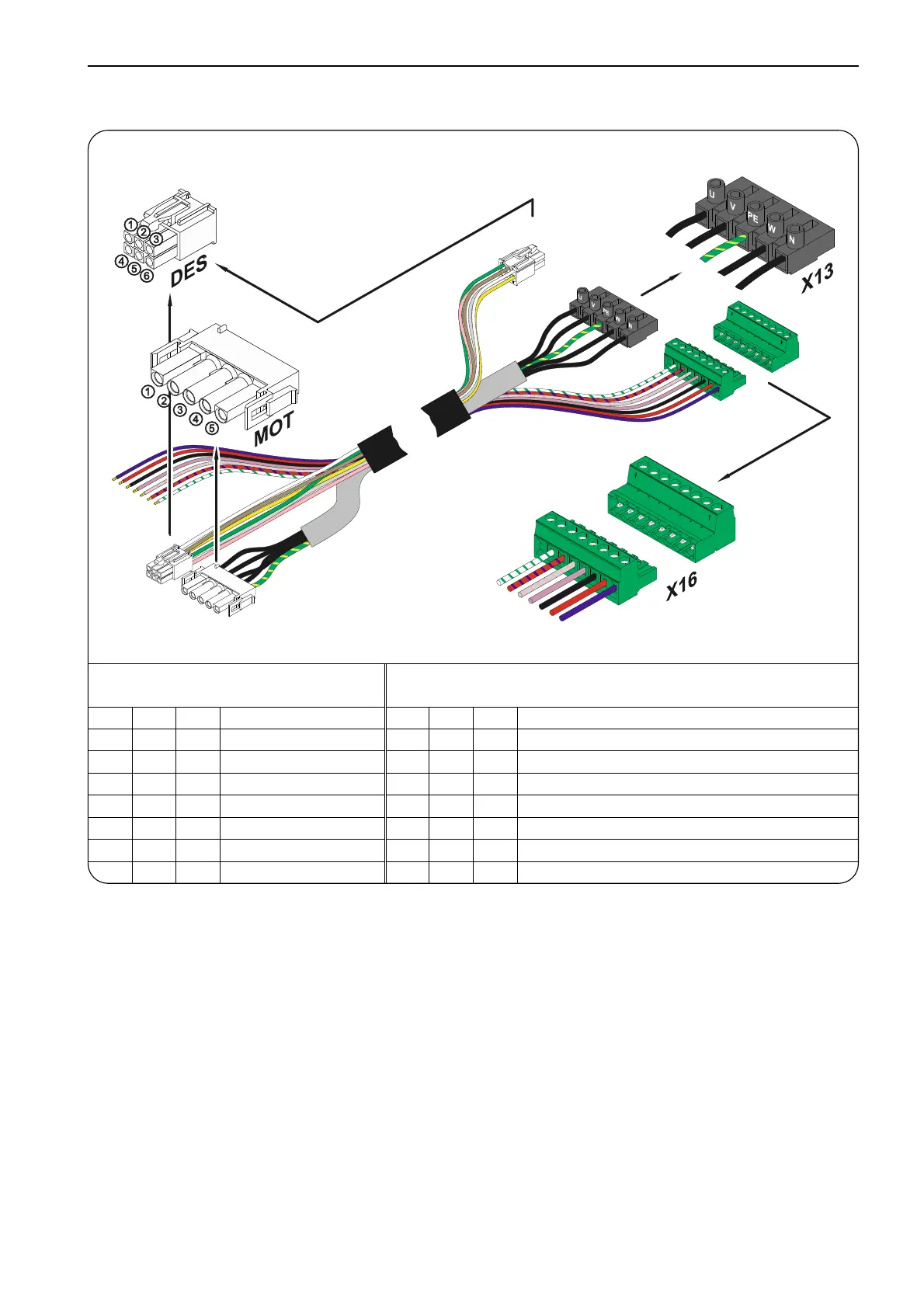

Connection cable connection overview
Motor connection cable Connection cable for limit switch
MOT X13
Motor plug
DES X12 Limit switch plug
Pin Core Term. Pin Core Term.
1 3 W Phase W 1 5/wh 1 +24 V safety circuit
2 2 V Phase V 2 6/bn 2 Channel B (RS485)
3 1 U Phase U 3 7/gn 3 Ground
4 4 N Neutral conductor (N) 4 8/ye 4 Channel A (RS485)
5 PE PE 5 9/gy 5 Safety circuit
6 10/pk 6 8 V DC supply voltage
