GFA TS 971 - Wireless Safety Device Setup

"WSD" Wireless Safety Device
"WSD" Wireless Safety Device
Open "WSD" door module
87
6
5
4
4
3
2
1

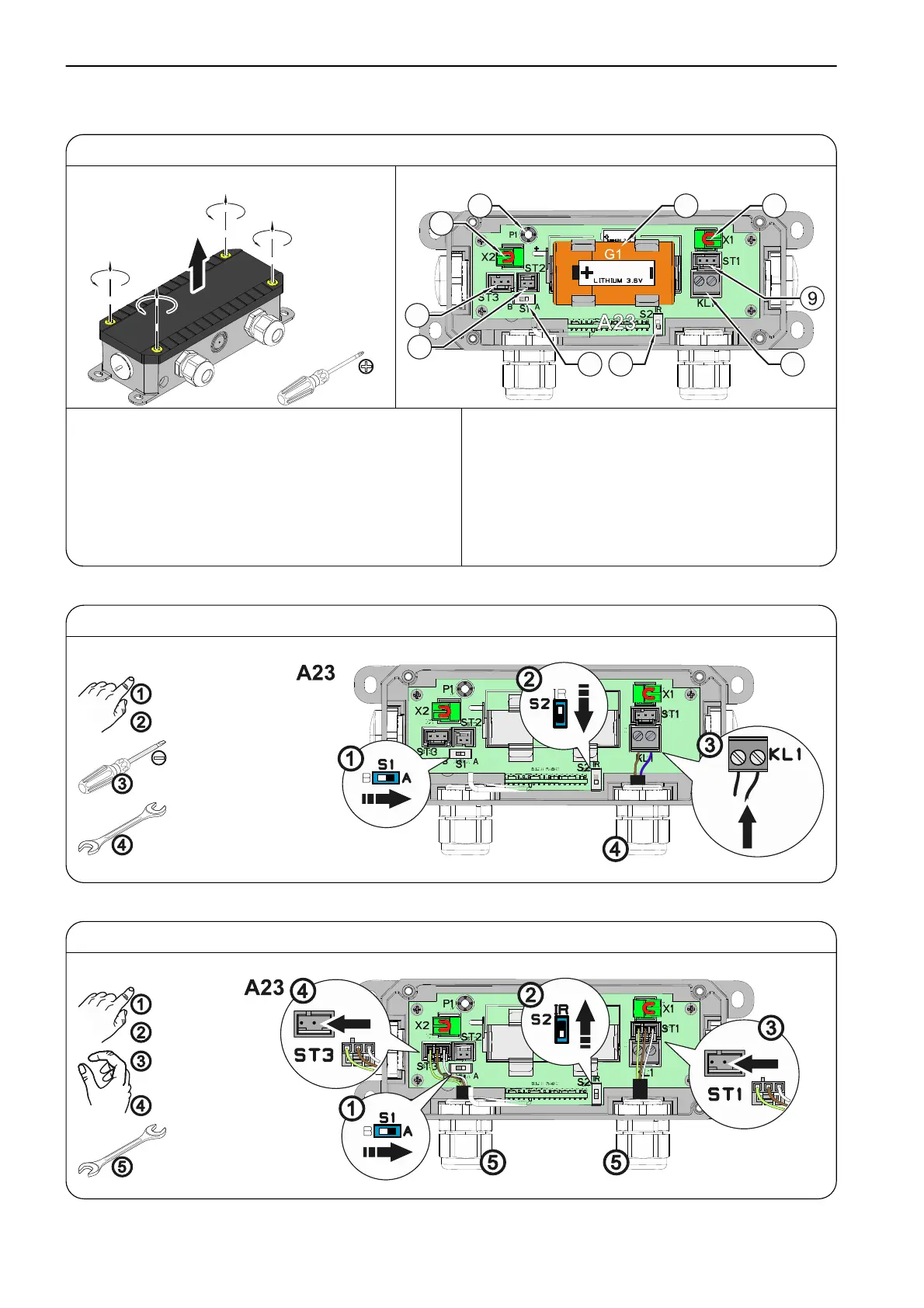

A23 "WSD" door module ⑥ ST2 System 2 connection cable socket
① P1 Door module push-button ⑦ S2 Safety edge evaluation switch:
② S1 Switch "A" System 1, "B" System 2 Optical (upper changeover position < "IR")
③ G1 Lithium battery, 9000 mAh Electrical (lower changeover position)
④ X1/2 Door safety switch connection ⑧ KL1 Terminal
⑤ ST3 Electrical safety edge system
Optical sensor or system 2 connection
cable socket
⑨ ST1 Optical sensor socket
8K2 electric al safety edge system on "WSD" door module
8K2 electrical safety edge system on "WSD" door module
OSE optical safety edge syst em 1 on "WSD" door module
OSE optical safety edge system 1 on "WSD" door module
