Gigabyte GA-Z87N-WIFI User Manual

Hardware Installation
- 22 -

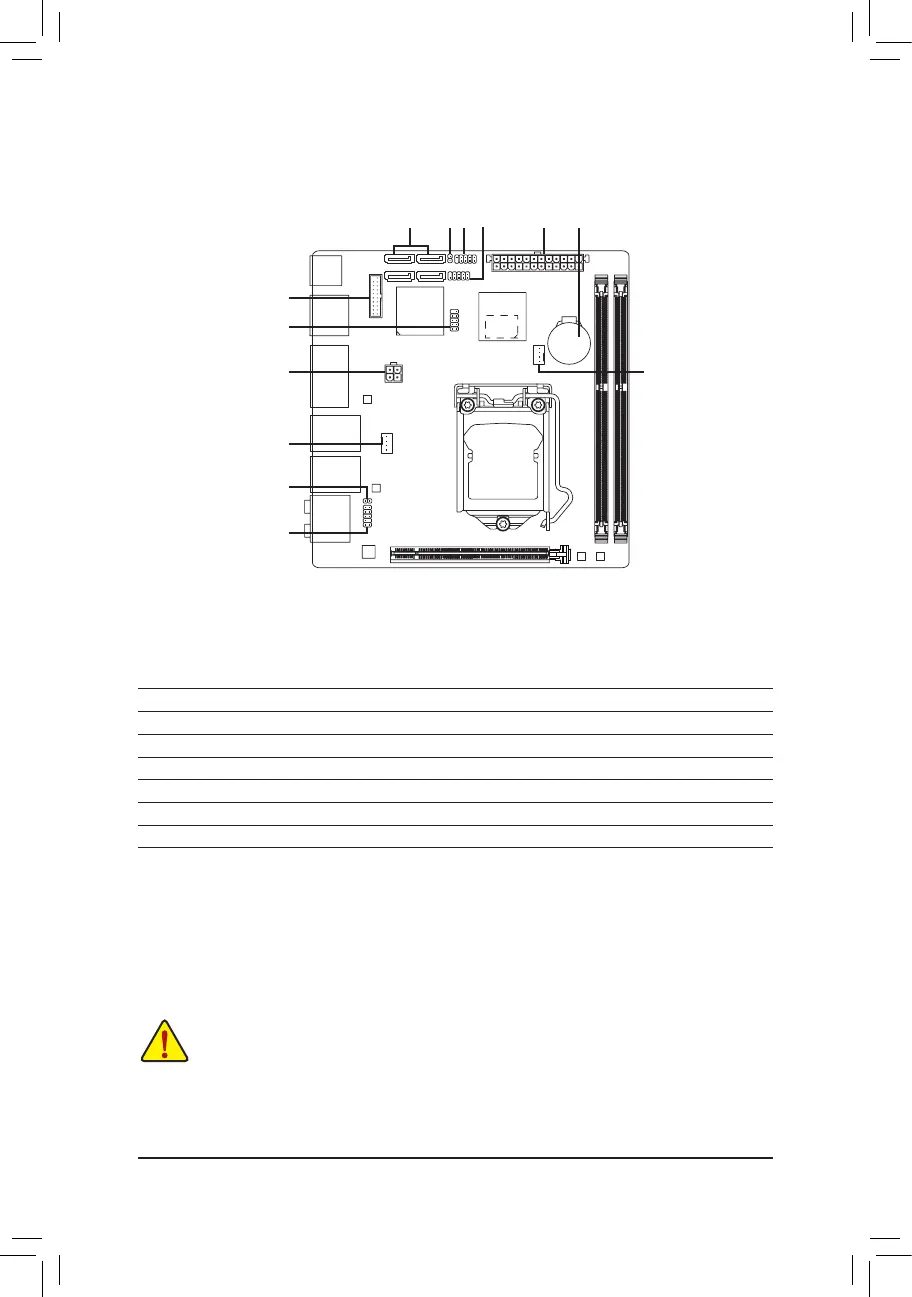

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Beforeinstallingthedevices,besuretoturnoffthedevicesandyourcomputer.Unplugthepower
cord from the power outlet to prevent damage to the devices.
• Afterinstallingthedeviceandbeforeturningonthecomputer,makesurethedevicecablehas
been securely attached to the connector on the motherboard.
1
4
2
10
12
6
118 5
7
9
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) BAT
6) SATA3 0/1/2/3
7) F_AUDIO
8) F_PANEL
9) SPDIF_O
10) F_USB30
11) F_USB
12) COM
13) CLR_CMOS
13
3

Gigabyte GA-Z87N-WIFI Specifications

General

Brand	Gigabyte
Model	GA-Z87N-WIFI
Category	Motherboard
Language	English
