Latitude Components Dispenser Overview
Page 4-2 MDE-5422B Latitude™ Owner’s Manual · March 2021

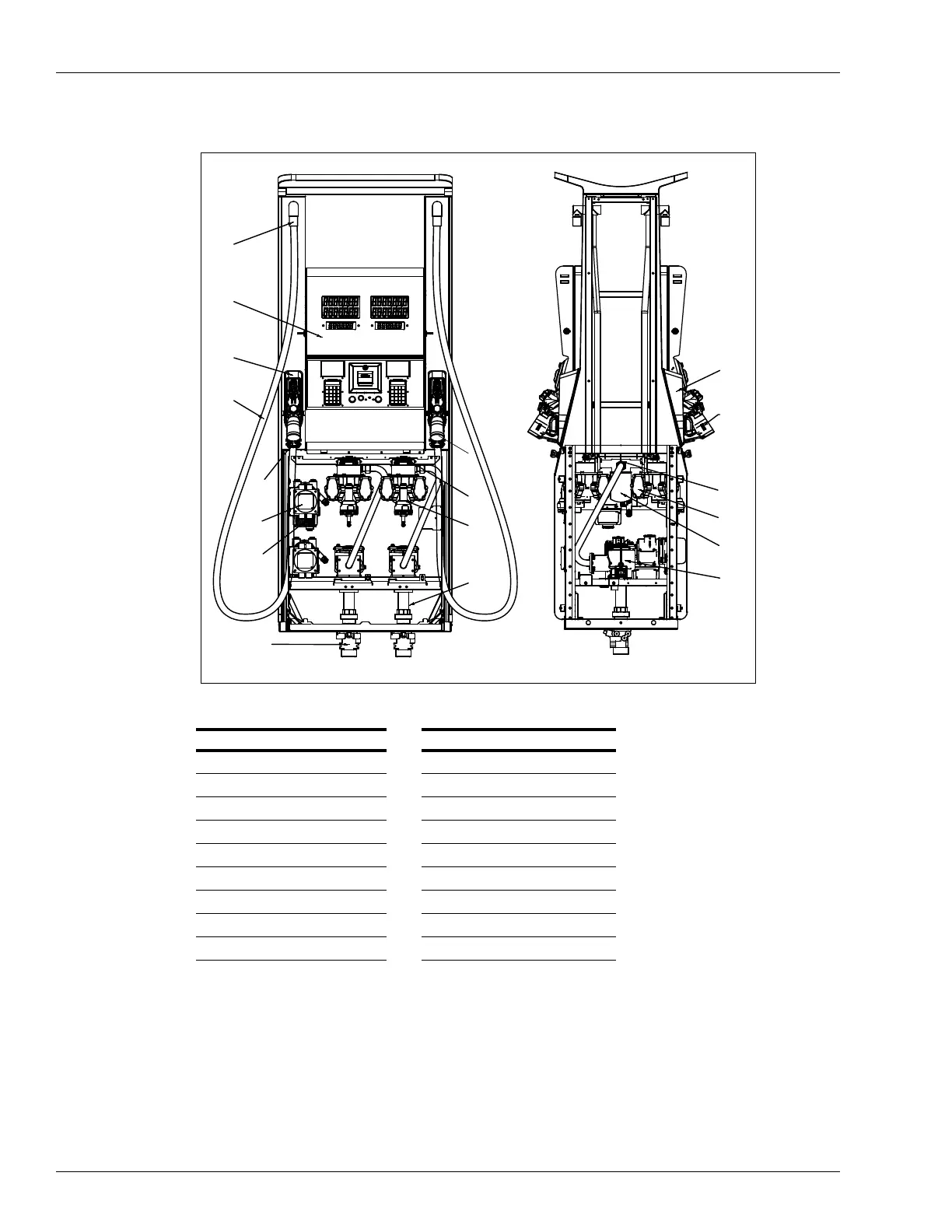

Figure 4-2: Latitude Dispenser
1
3
2

1
1
1
4
1
BB BB
1
1
1
1
BB
Z
Z
A
Z
Z
A
B
B
A
5
Front View
Side View
Sl. No. Menu Sl. No. Menu
1 Shear Valve 10 Inlet Pipe
2 Vapor Recovery Pump 11 Valve
3 Junction Box 12 Pulser
4 Swivel 13 Inlet Filter
5 Side Flow Indicator 14 Spin on Filter
6 Hose 15 Meter
7 Reed Sensor 16 Meter Manifold
8 Electronics Zone 17 Nozzle
9 Pump Breakaway 18 Nozzle Boot
