MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 3-3
Zoning Diagram
Supplementary Instructions for
European Union (EU) Countries
Zoning Diagram
Latitude pumps and dispensers are ATEX certified. The dispenser must be installed to not
compromise the zones illustrated in Figure 3-1, Figure 3-2 on page 3-4, and Figure 3-3 on
page 3-5. These zoning diagrams show the extent
of the external hazardous areas.
The zones 0, 1, and 2 indicated in th
e zoning diagrams define the probability of the hazard
actually being present in flammable concentrations.
• Zone 0:
A place in which an explosive atmosphere is present continuously or for long
periods or frequently.
• Zone 1:
A place in which an explosive atmosphere is likely to occur in normal operation
occasionally.
• Zone 2:
A place in which an explosive atmosphere mist is not likely to occur in normal
operation but, if it does occur, will persist for a short period only.

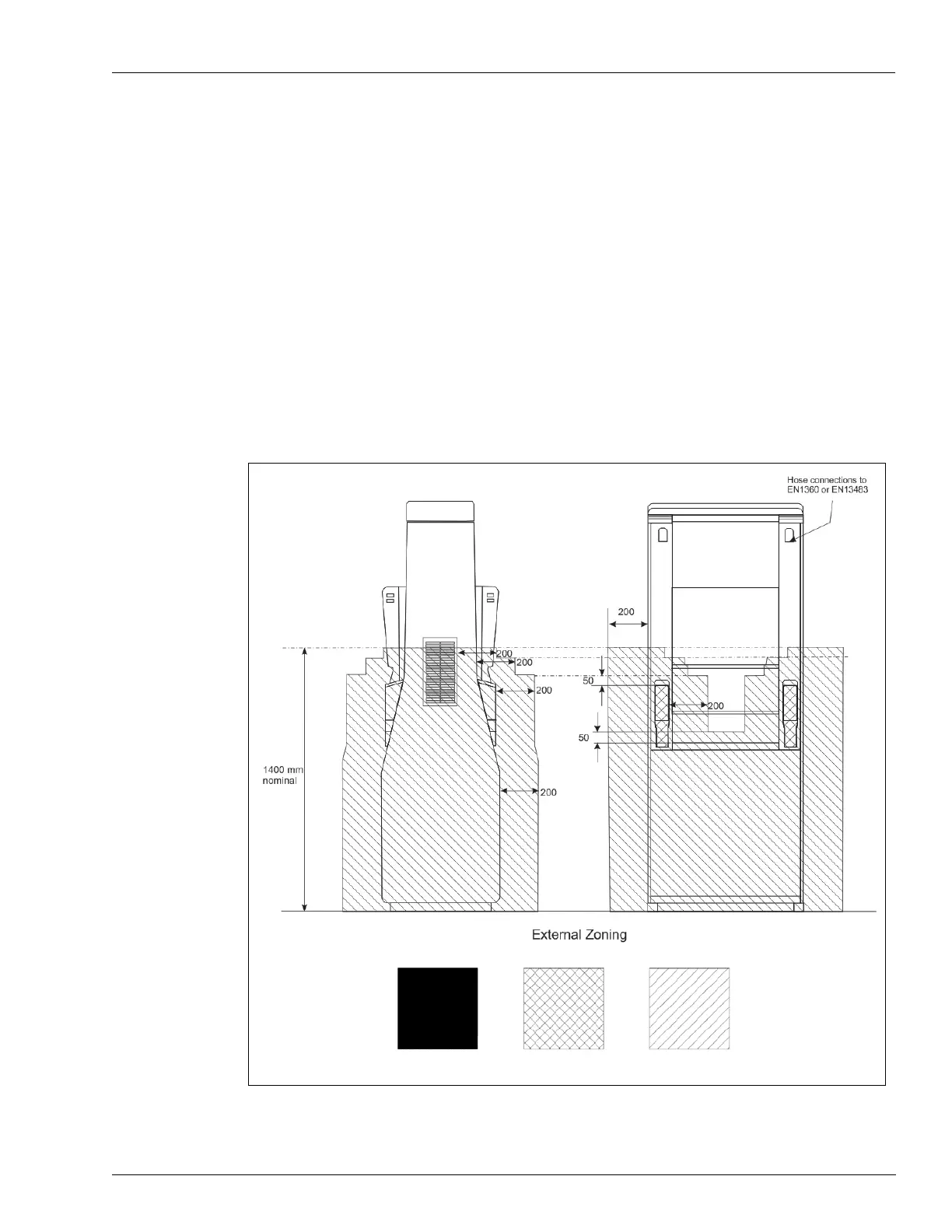

Figure 3-1: Zoning Diagram for LS-200 Lane Configuration
Zone 0
Zone 1
Zone 2
