Page 5-4 MDE-5422B Latitude™ Owner’s Manual · March 2021
Latitude Operation Working Principle
3 Rest the nozzle on the cradle and release.

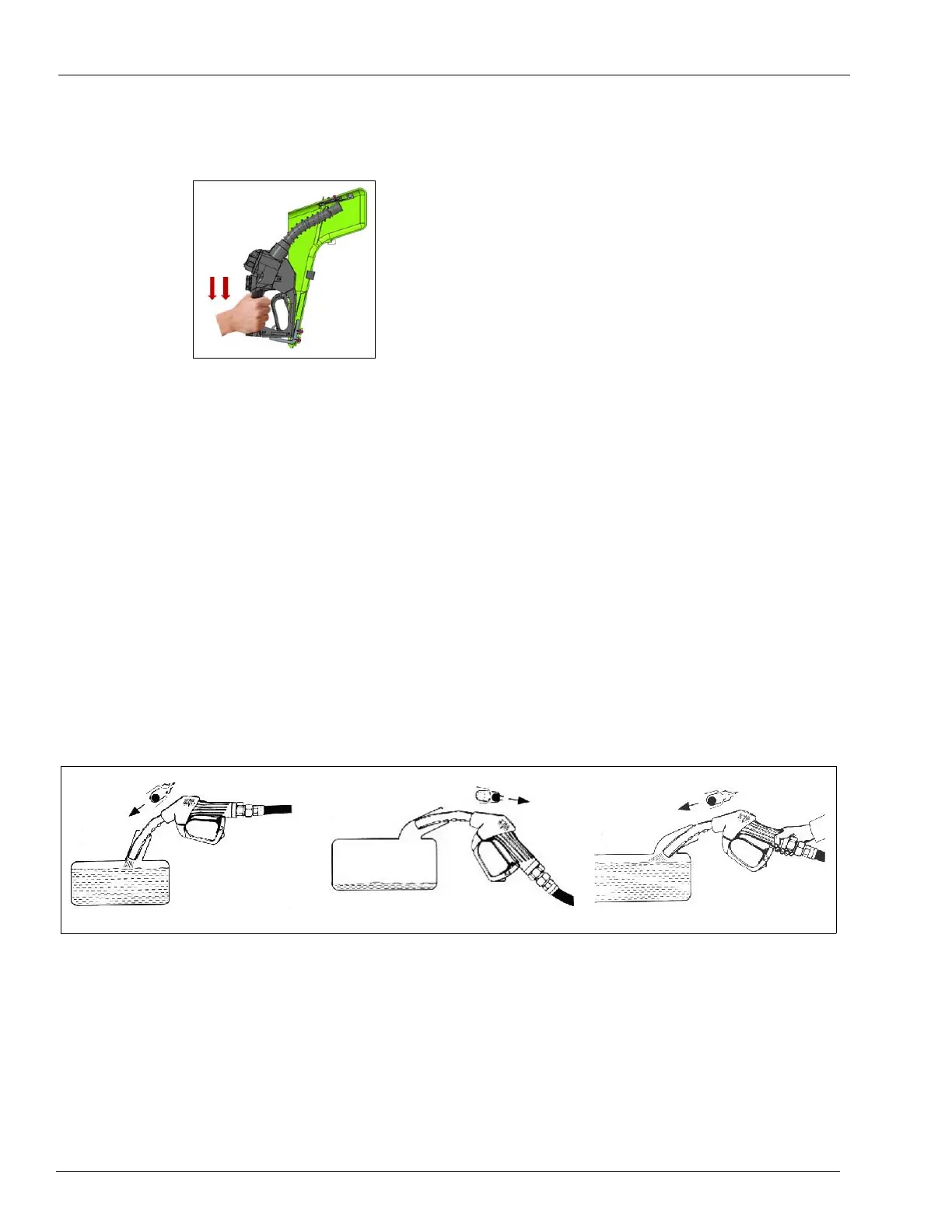

Figure 5-7: Resting Nozzle on Cradle
Operating Pump/Dispenser
To operate the pump/dispenser, proceed as follows:
1 Fill the tank.
a Insert the nozzle pipe deep into the car filler and position the nozzle so that it does not slip
out [see Figure 5-8 (i)].
b Squeeze the trigger of the nozzle. DO NOT remove the nozzle spout from the filler. If the
nozzle is positioned horizontally, the safety mechanism might prevent the nozzle from
opening [see Figure 5-8 (ii)]. In this case, the nozzle must be tilted slightly 
[see Figure 5-8 (iii)].
Note: Tanks with incorrectly positioned filler or poor ventilation can cause the nozzle to
shut off pr
ematurely, or may cause fuel to be spilled. In these cases, the filling speed
must be reduced by squeezing the nozzle trigger partially. In case of an attended
service operation, the nozzle may include a hold-open latch. This must be removed at

self-service sites.
Figure 5-8: Filling Tank
(i)
(ii)
(iii)
c Terminate filling by releasing the nozzle trigger.
Note: Automatic nozzles close as soon as the maximum fuel level of the
tank is reached.
2 Draw the nozzle out of the car filler neck. Ensure not to touch the trigger and return it to the
support on the nozzle boot.
