16
Installation
FSH−2−PH
*17”

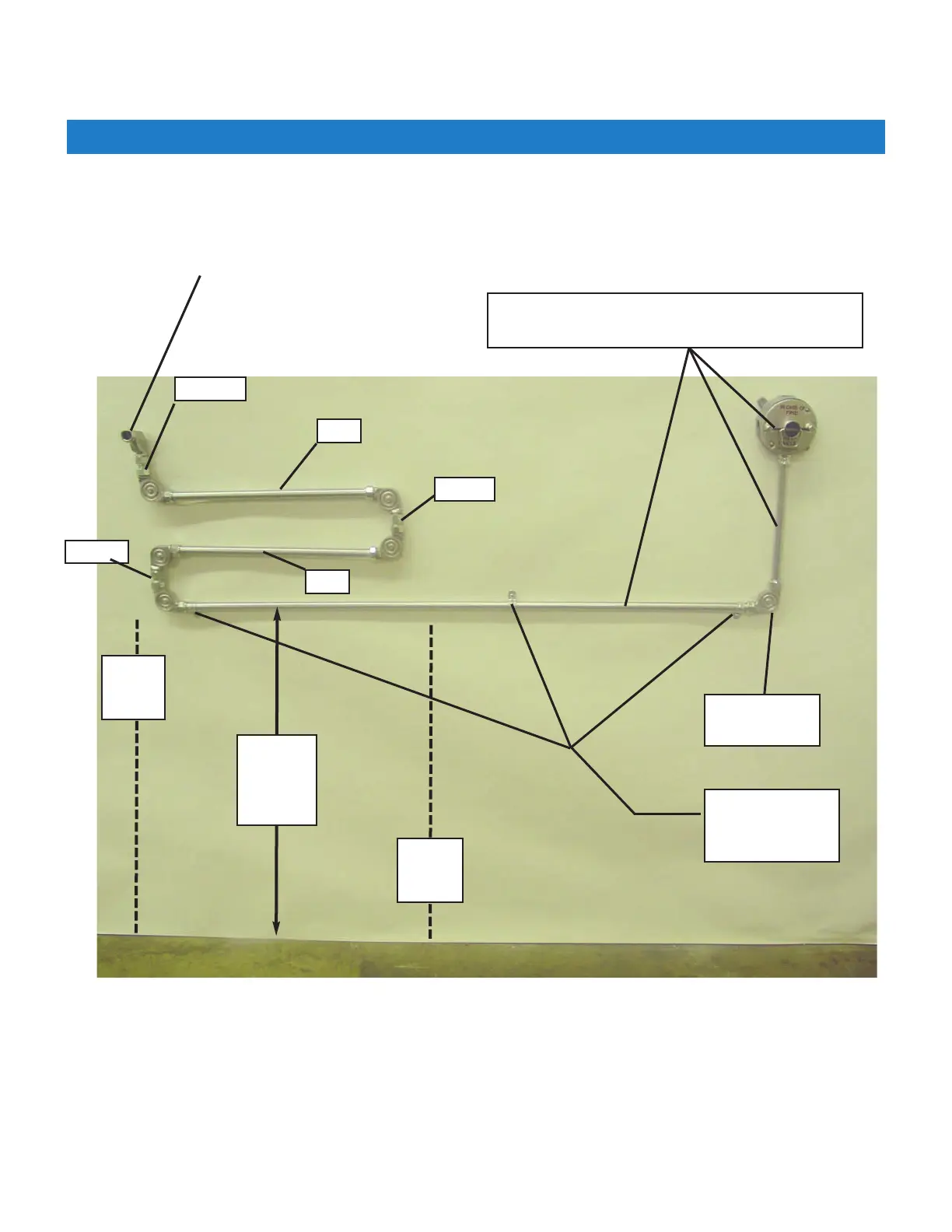

90° Pulleys 
(7) needed
Ansul Manual Pull Assembly location and conduit
lengths shall be determined by local code.
Support brackets
mounted to wall
on 16” centers.
Cut 1/2 EMT conduit to lengths, as indicated below, and mount the specified pieces to the wall, as shown.
Note: Conduit pieces marked with (*) will not to be affixed to the wall.
*17”
*13/4”
*13/4”
*13/4”
* Not mounted to wall
32” from
floor @
hood
center
Left
hood
side
Connecon point
on hood back
2.05.3 Remote Manual Activation Station − continued
Right
hood
side
