User Manual
25

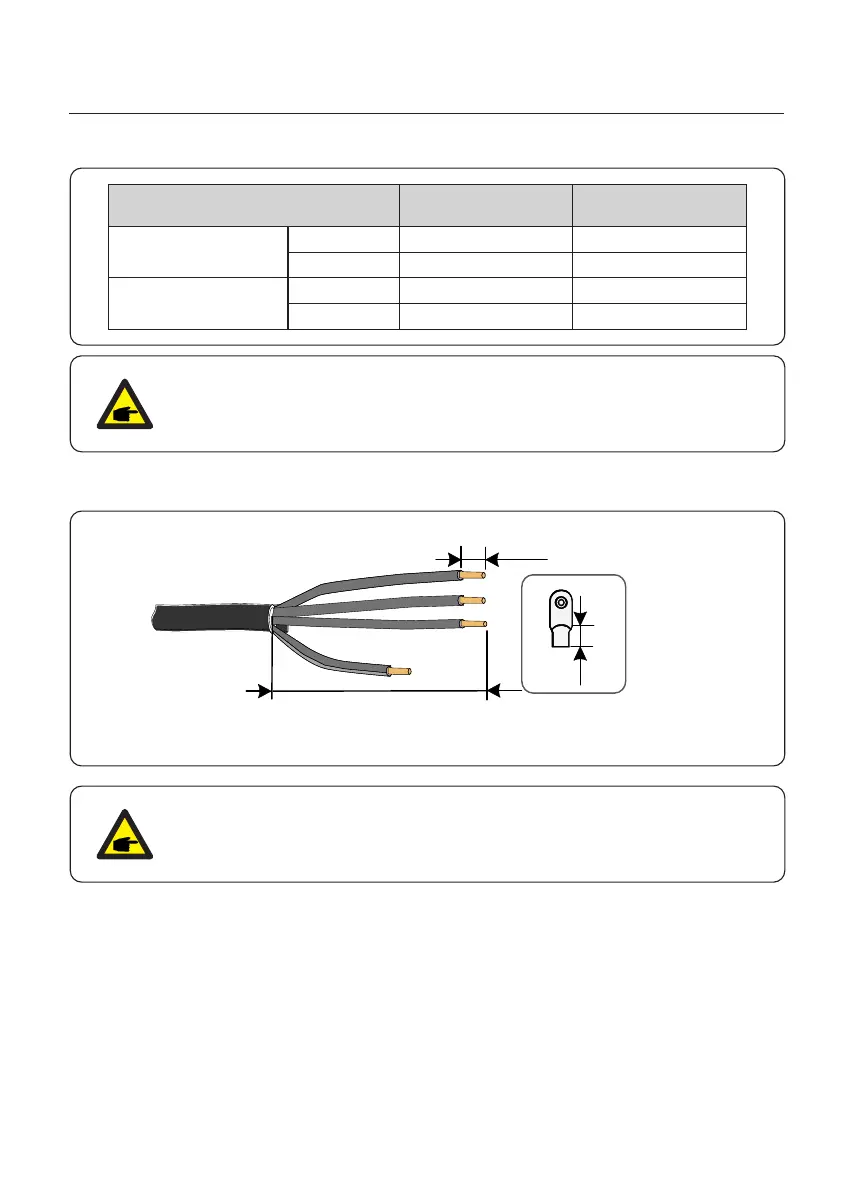

Figure 3.20 Strip AC cable
NOTE
S2 (insulation stripping length) is 2mm-3mm longer than S1.
(OT cable terminal crimping area)
2. Strip the insulation of the wire past the cable crimping area of the OT terminal, then
use a hydraulic crimp tool to crimp the terminal. The crimped portion of the terminal
must be insulated with heat shrinkable tube or insulating tape.
1. Strip the end of AC cable insulating jacket about 12 inch then strip the end of each
wire.
Cable specification
300kcmil (150)
1-3” (26~92)
2” (50.8)
AC Phase L1-L3 wire
Conduit diameter
Inch/ (mm)
Conductor gage
AWG/ (mm )
2
Range
Recommended
2/0- 600kcmil (70~300)
Range
Recommended
2/0 (50)
Ground wire
1-2/0 (35~50)
NOTE
Cable ampacity of ground wire should be more than half of cable ampacity
of AC phase L1,L2,L3 wire.
3. Installation
Same Conduit
Same Conduit
To Next Page
