User Manual
26

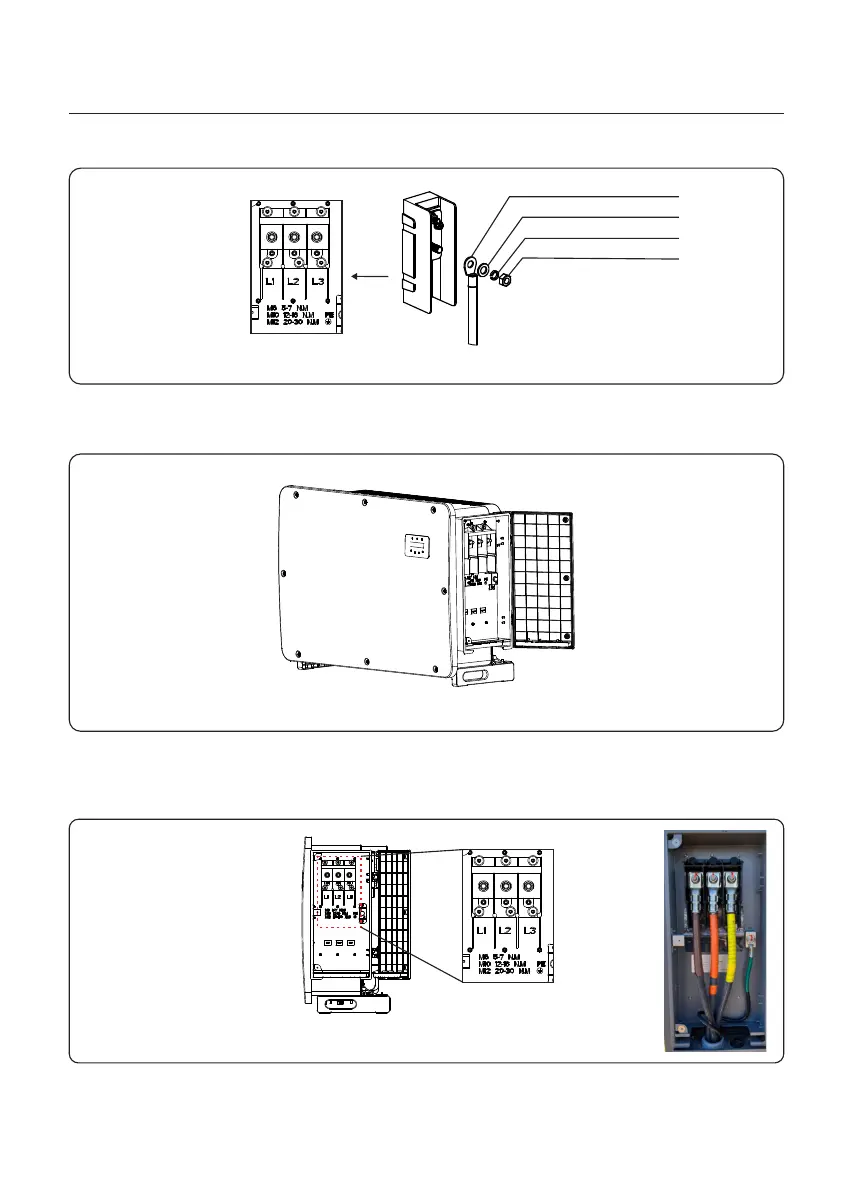

Figure 3.22 Remove the junction box cover
5. Insert the cable through the nut, sheath, and AC terminal cover. Connect the cable to
the AC terminal block and tighten the nuts using a torque socket wrench.
The torque is 17-21 ft.lbs.
Figure 3.23 AC L1,L2,L3 terminals
3. LOTO the AC breaker disconnect to ensure is does not close unexpectedly.
4. Remove the 3 screws on the inverter junction box and open the junction box cover.
Copper terminal of cable
flat washer
spring washer
nut
Figure 3.21 Connecting to AC terminals
3. Installation
