Receipt, storage and transport 18
Code No. 549758
Rev. nº 10/0418

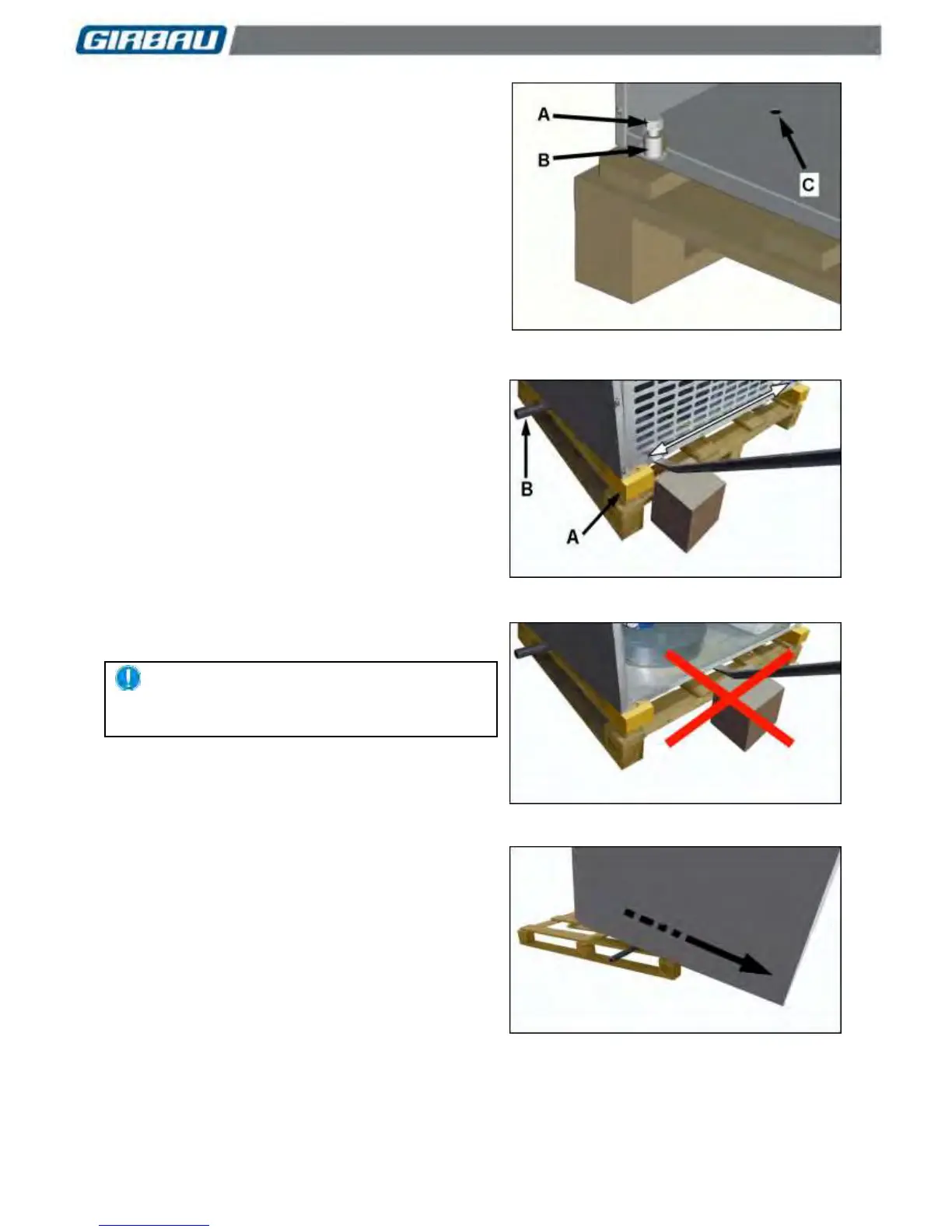

Move the machine on the transporting crate base as close
as possible to the final location.
Remove the bottom rear cover from the dryer. Remove
the bolts (Fig. 2.9/A) securing it to the transport base.
Refit the lower rear cover and fasten properly.
Keep the spacers (Fig. 2.9/B) from the securing bolts.
These should be used if necessary to attach the machine
to the floor.
Fig. 2.9
Using a lever inserted at the sides of the back of the
machine, lift the rear.
Insert a thick block (Fig. 2.10/A) at both sides of the rear
of the base to aid in inserting a roller (Fig. 2.10/B) that
allows the machine to slide over the transporting crate
base.
Fig. 2.10
Fig. 2.11
CAUTION!
Never lift the machine at the middle or without the
rear cover fitted and secured (Figure 2.11).
Slide the machine towards the rear of the transporting
crate base until it is positioned at the final location (Figure
2.12).
Fig. 2.12
