GIRBAU ED340 - Gas Heating Combustion Analysis

Initial start-up 65
Code No. 549758
Rev. nº 10/0418
CAUTION!
Check the free movement of the flap for regulating the exhaust output.
This flap is a safety device that blocks the entry of air through the exhaust pipe in the event of a blow
back.
For this reason IT SHOULD NEVER BE REMOVED.
9.2. Machines with gas heating. Analysis of the
combustion gases
Once the drying program has begun:
 Wait a few minutes until the exhaust temperature exceeds
80 ºC (176 ºF).
 Analyse the combustion products (Fig. 9.1). THE
RESULT MUST COMPLY WITH THE REQUIREMENTS
IN FORCE IN THE COUNTRY WHERE THE DRYER IS
INSTALLED.
 Some operating conditions may call for slight modification
of the combustion control devices, particularly the Venturi.
See Section 8.2.1 on how to adjust the position of the
Venturi.

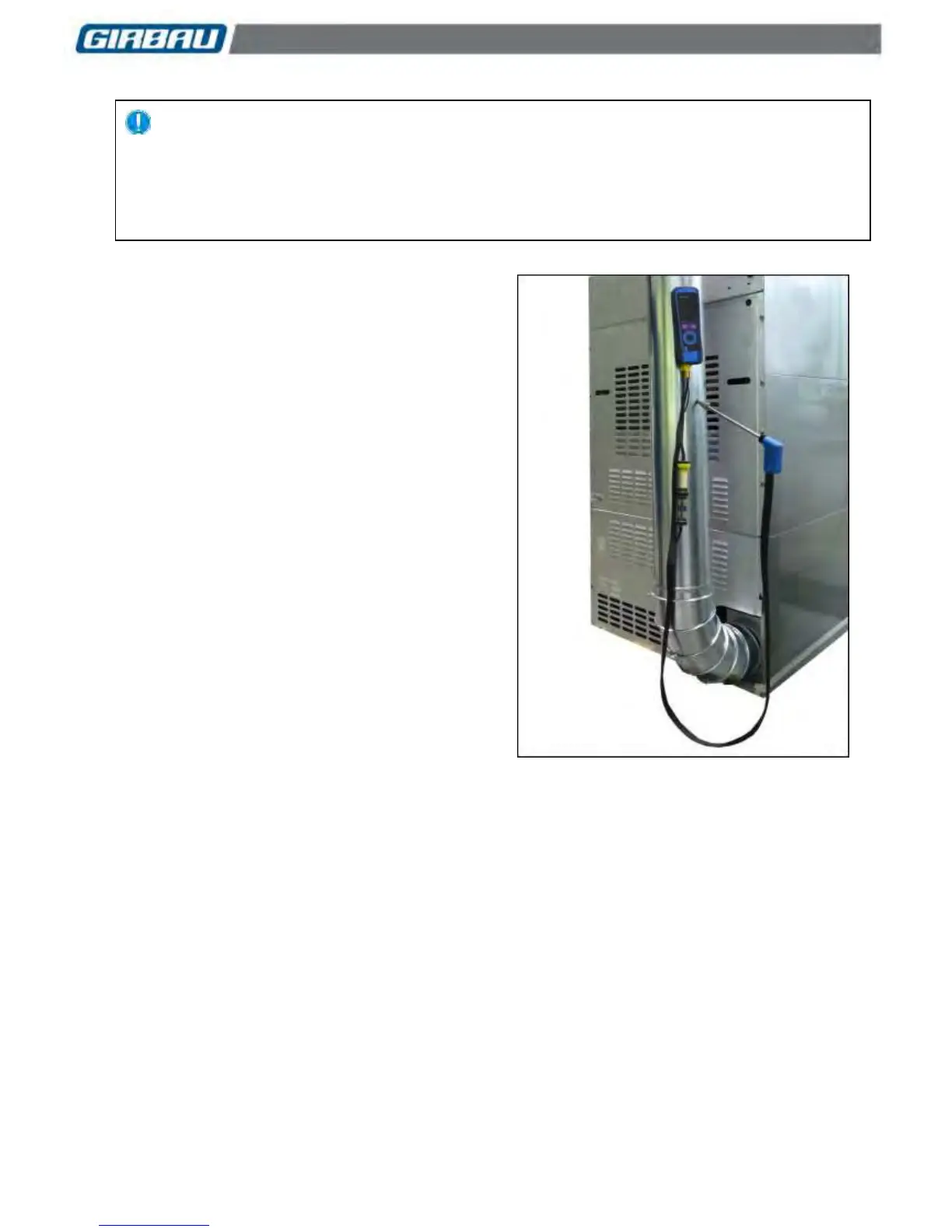

Fig. 9.1
