GIRBAU ED340 - Page 33

Connecting the machine 33
Code No. 549758
Rev. nº 10/0418
Nameplate:
Heating ........................... G/V
Voltage ........................... 200…240
Phases ............................ 1Ph+N

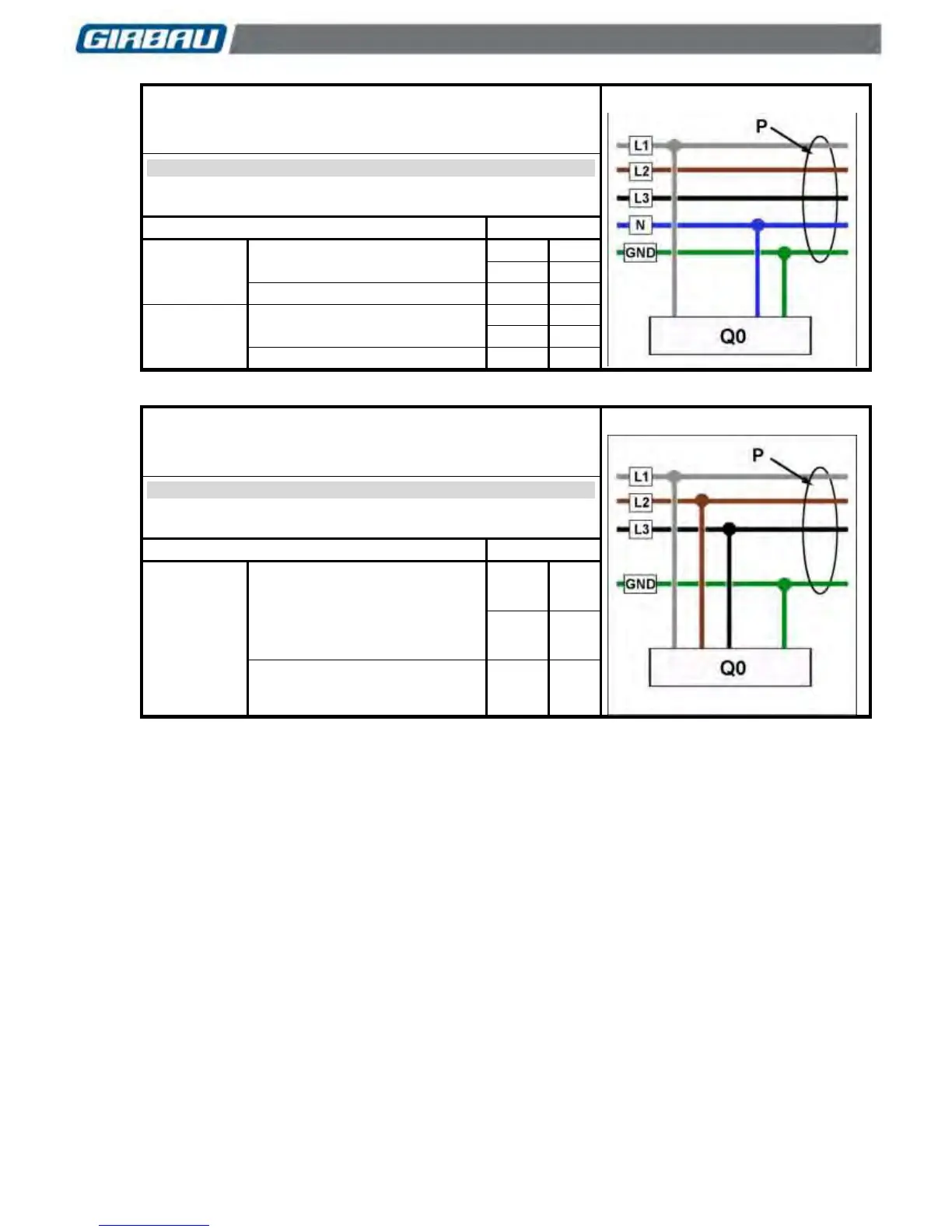

CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 380…415
Phases ............................ 3 Ph + N
Number of wires
2 + PE/GND
ED260
ED340
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
6
ED460
ED660
Wire section
mm
2
1.5
AWG
14
Automatic External Switch
A
10
Nameplate:
Heating ........................... G/V
Voltage ........................... 200…240
Phases ............................ 3Ph
CONNECTION DIAGRAM
Mains supply available (P):
Voltage ........................... 380…480
Phases ............................ 3 Ph
Number of wires
2 + PE/GND
ED900
ED1250
Wire section
mm
2
2.5
AWG
14
Automatic External Switch
A
10
