Connecting the machine 50
Code No. 549758
Rev. nº 10/0418

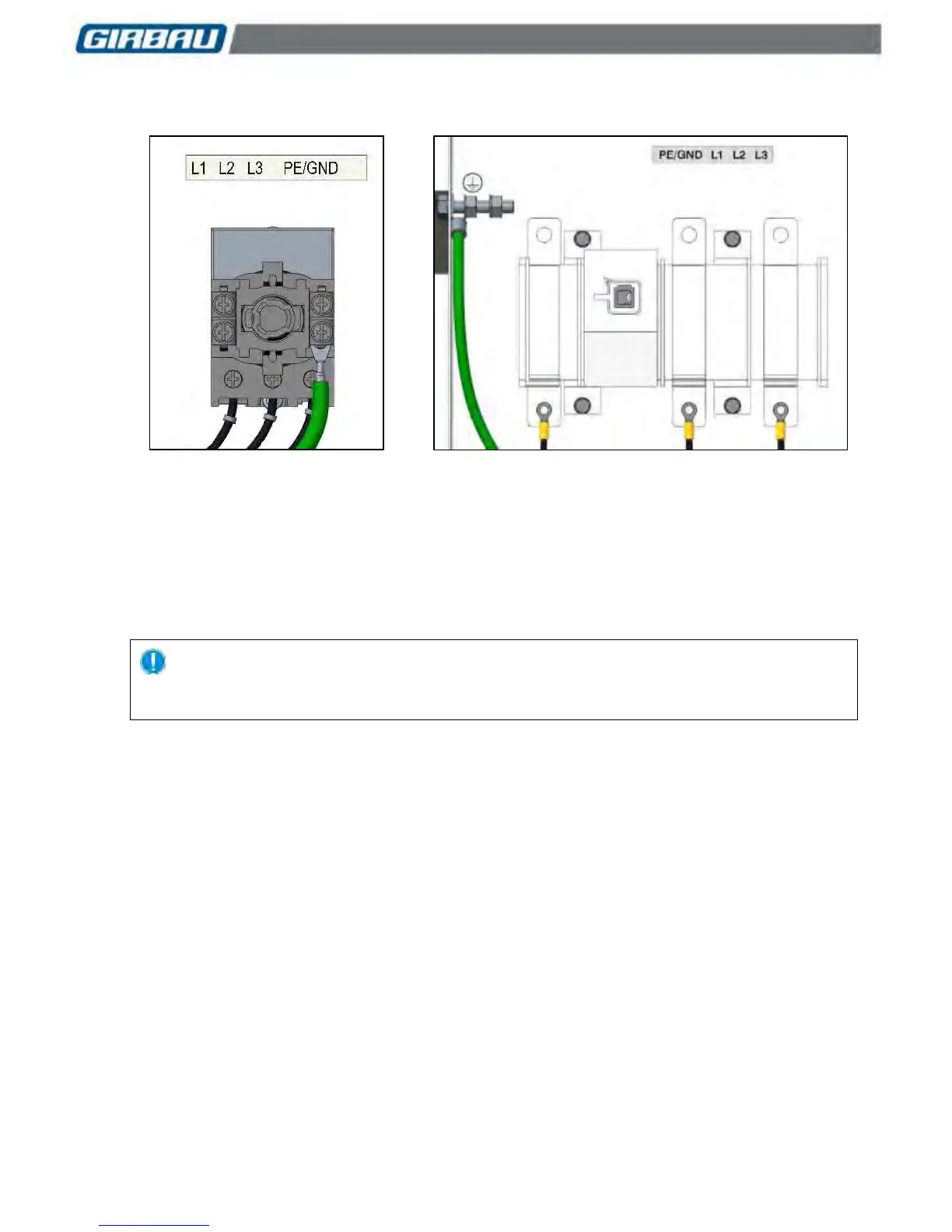

 Connect the power supply cable to the terminals of the breaker switch. (Fig. 5.3: Models with gas or steam
heating; Fig. 5.4: Machines with electric heating).
Fig. 5.3
Fig. 5.4
 Replace the covers protecting the terminals.
 Connect the earth cable.
 Assemble all the covers and fix them. Assemble the switch handle.
 Check that the cable or the cable protection conduit is correctly attached to the back cover of the machine.
CAUTION!
The earth connection cable is a protection device. Attach it correctly.
