PROCEDURE 5. CONNECT TO AN EXTERNAL MONITOR (OPTIONAL)
The external monitor must be safety-approved medical equipment.
WARNING
By using an HDMI-to-DVI cable, you can connect the GlideScope Video Monitor to an external monitor that is
approved for medical use. For more information, please contact your Verathon
®
Customer Care representative.
Note: Image quality on the external monitor may vary according to the resolution of the external monitor.
Note: To maintain electromagnetic interference (EMI) within certified limits, the GlideScope Titanium system
must be used with the cables, components, and accessories specified or supplied by Verathon. For additional
information, see the System Parts & Accessories and Component Specifications sections. The use of accessories
or cables other than those specified or supplied may result in increased emissions or decreased immunity of the
system.
1. Ensure that the video monitor is turned off.
2. On the back of the monitor, remove the HDMI cap from the video-out port.
3. Connect the HDMI end of the cable to the video-out port.

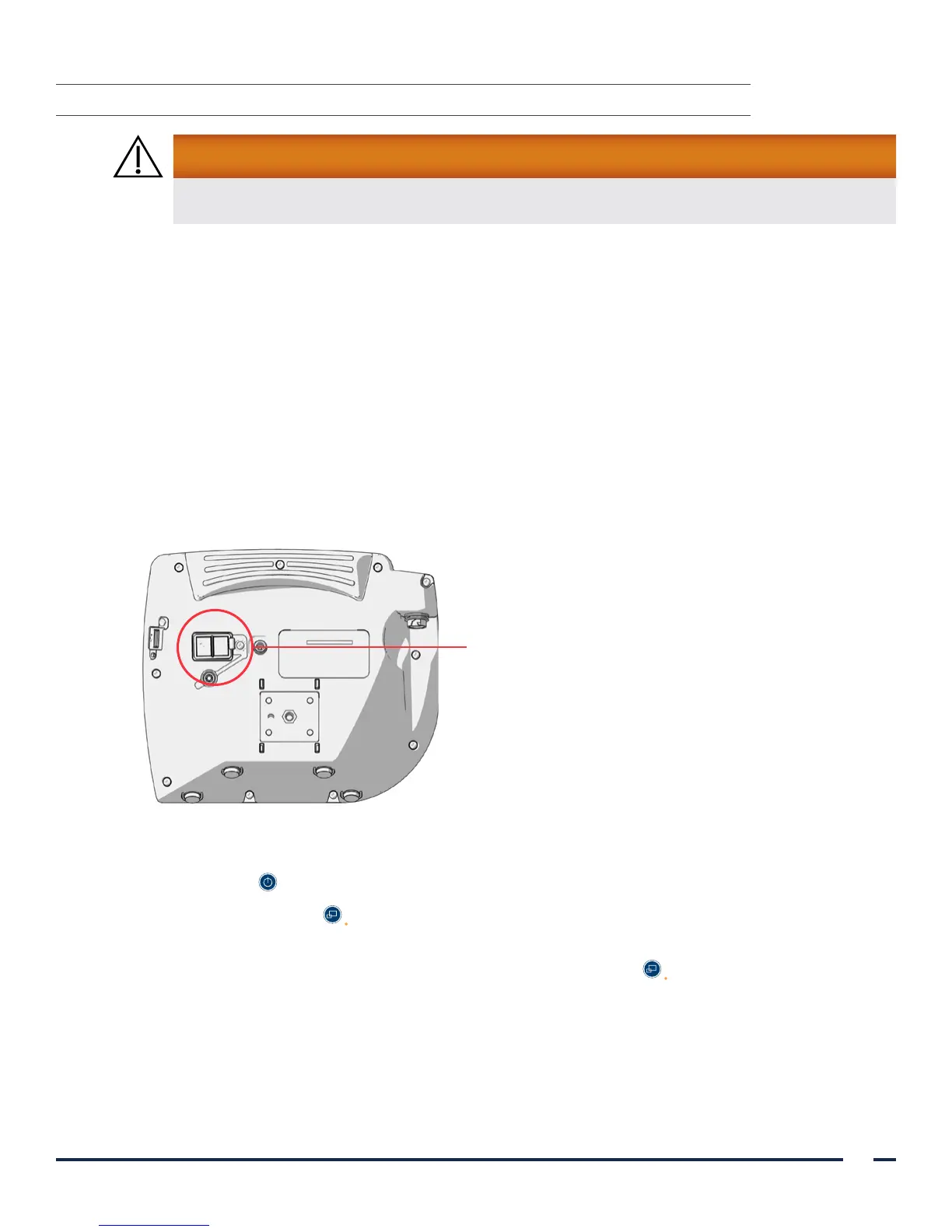

Video-out port
4. Connect the other end of the cable to the DVI port on an external monitor that is approved for medical use.
5. Press the Power button. The monitor turns on.
6. Press the External Video button. The indicator LED to the right of the button illuminates when the
connection is successful, and the video displays on the external monitor.
7. To stop sending video to an external monitor, press the External Video button again.
8. Prior to disconnecting the HDMI-to-DVI cable, ensure the video monitor is turned off.
