5 Set-up
18 Installation manual 0020237648_03

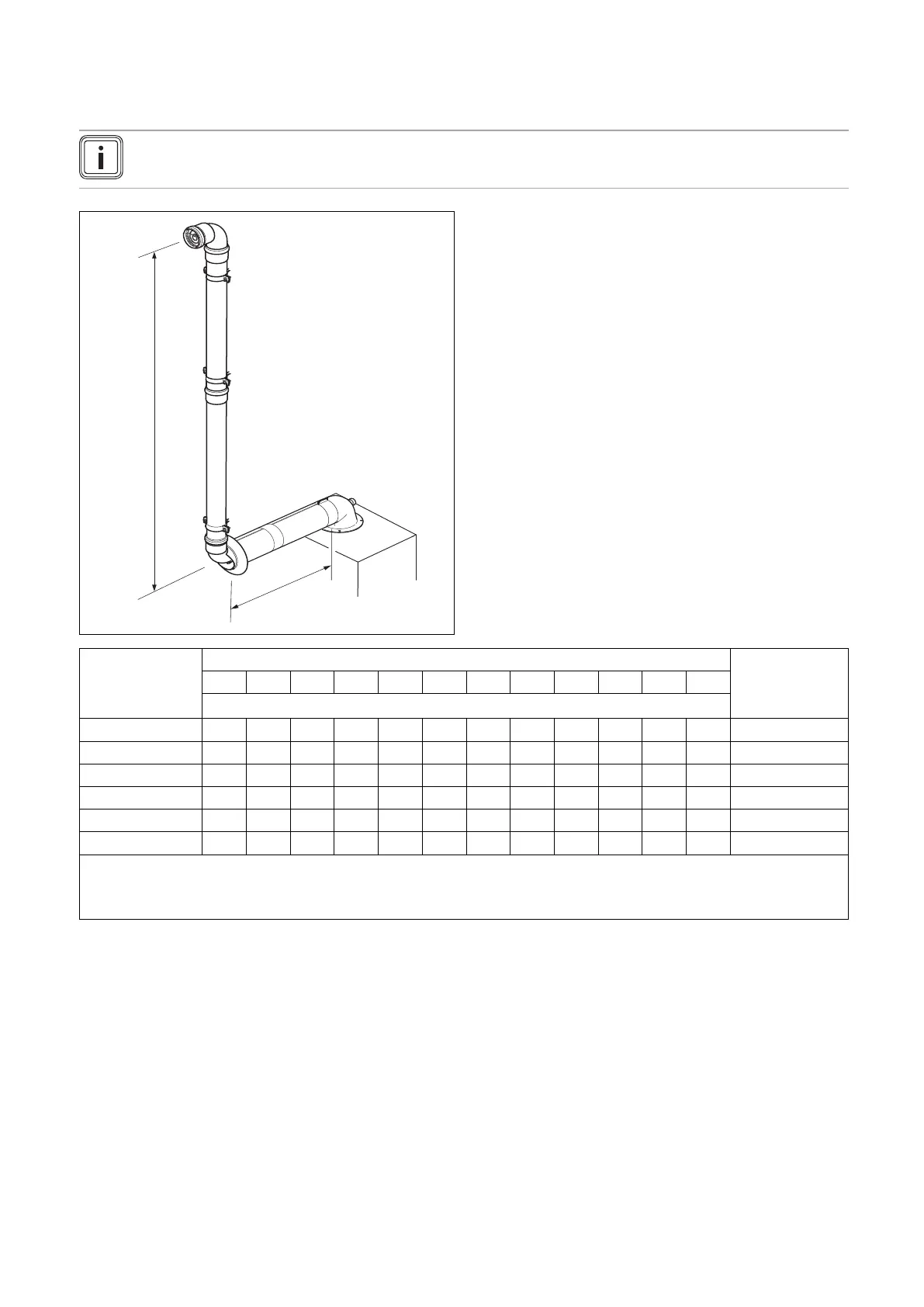

5.1.10 Variable terminal set (VTK)
5.1.10.1 Maximum permissible pipe lengths
Note
Not valid for article number 0010035513
A
B
Pipe length A Maximum pipe
length
A + B
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Pipe length B
1)
ENERGY 9.5 9.0 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 10.0
ULTIMATE 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0 9.0
ESSENTIAL 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0 9.0
EASICOM 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0 9.0
BETACOM 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0 9.0
MICRACOM 8.5 8.0 7.5 7.0 6.5 6.0 5.5 5.0 4.5 4.0 3.5 3.0 9.0
1) The inclusion of additional elbows in the flue system reduces the pipe length as follows:
– By 0.5 m for each 45° elbow
– By 1.0 m for each 90° elbow
You can vary the flue pipe length "A" and the concentric pipe length "B". However, the total pipe length must not be
exceeded (→ Installation instructions).
Example: "A" = 4.0 m + "B" = 6.0 m = 10 m
The terminal for the flue system set should lie at least 2 m above the ground surface.

Glow-worm ENERGY Specifications

General

Model	ENERGY
Category	Boiler
Efficiency Rating	A
Fuel Type	Natural Gas
Boiler type	Combi
Mounting	Wall-mounted
Warranty	7 years
Weight	32 kg
