Goodwe BT Series - Installing the Inverter

8
User Manual V1.3-2021-12-15 02 Installation Instructions
110mm
120mm
120mm
1
• The mounting support shall be nonammable and reproof.
• Make sure that the support surface is solid enough to bear the product weight load.
• Do not install the product on the support with poor sound insulation to avoid the noise
generated by the working product, which may annoy the residents nearby.
Mounting Support Requirements

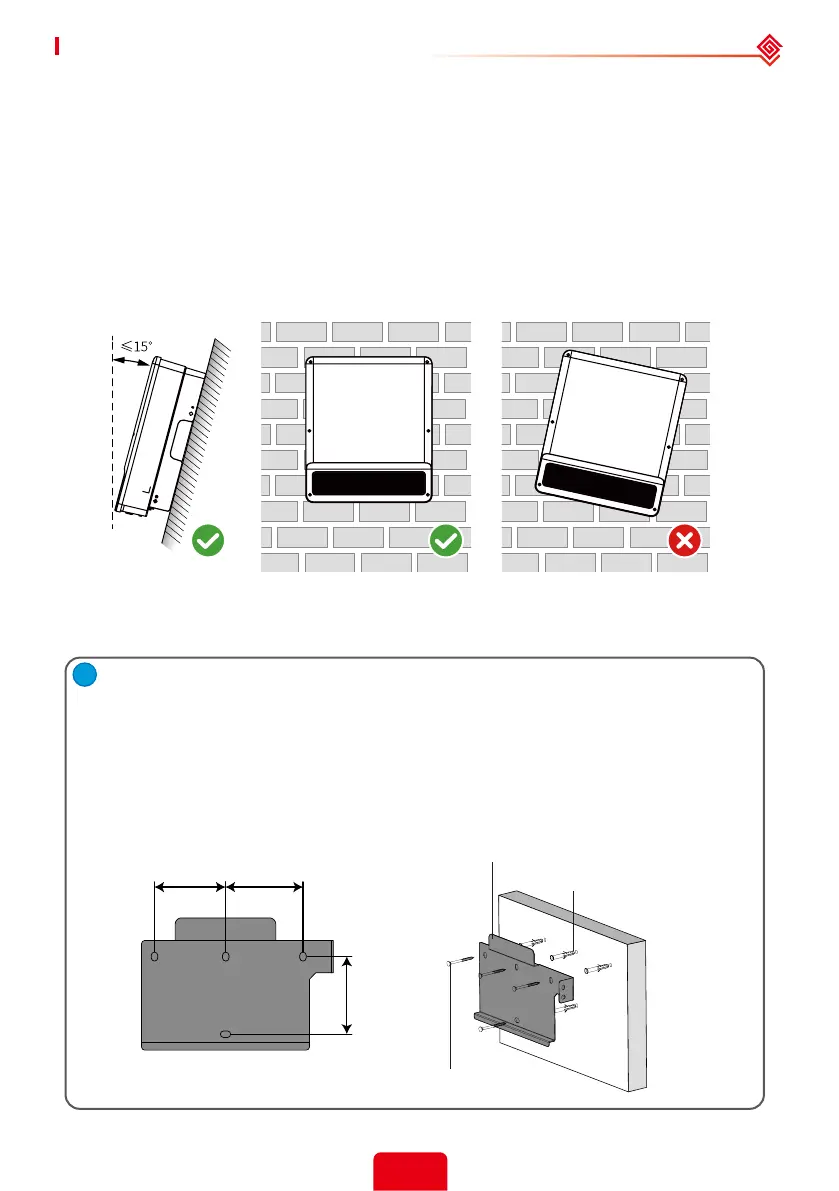

Installation Angle Requirements
• Install the inverter vertically or at a maximum back tilt of 15 degrees.
• Do not install the inverter upside down, forward tilt, back forward tilt, or horizontally.
2.3.2 Installing the Inverter
The inverter is suitable for mounting on concrete or other non-combustible surfaces only.
Please use the mounting bracket as a template to drill 4 holes in the correct
positions (e.g. 10mm in diameter and 80mm in depth).
Use the expansion bolts in the accessory box and tightly attach the mounting
bracket to the wall.
Note: The bearing capacity of the wall must be greater than 25kg. Otherwise, the wall
may not be able to prevent the inverter from dropping.
wall bracket
expansion pipe
self-tapping screws
