Goodwe BT Series User Manual

19
02 Installation Instructions User Manual V1.3-2021-12-15
5
4
123456
3
123456
2.6 Earth Fault Alarm Connection
The inverter complies with IEC 62109-2 13.9. Fault indicator LED on inverter cover will light up
and the system will email the fault information to customer.
Inverter should be installed at eye level for convenient maintenance.

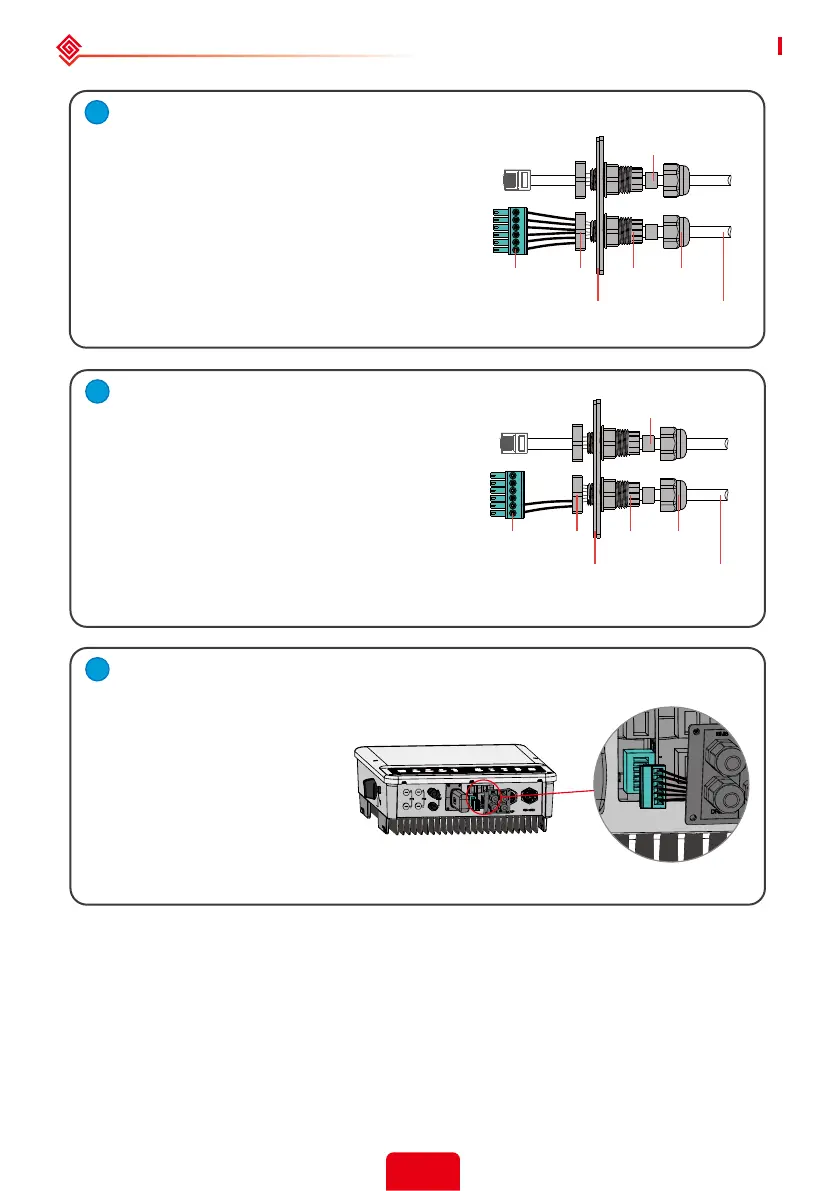

1. Put DRED cable through the plate.
2. Connect DRED cable on the 6-pin erminal.
1. Put the cable through the plate.
2. Wiring from the No. 5 and 6 holes
respectively.
Connect the terminal to the right position
onto the inverter.
Cable
Screw
RS485
communication board
The
Insulator
Screw Cap
Nut
Single hole
seal ring
Cable
Screw
RS485
communication board
The
Insulator
Screw Cap
Nut
Single hole
seal ring
For DRED:
1: DRM1/5
2: DRM2/6
3: DRM3/7
4: DRM4/8
5: REFGEN
6: COM/DRMO
For Remote ShutDown:
5: REFGEN
6: COM/DRMO
