20
User Manual V1.3-2021-12-15 02 Installation Instructions
Grid
Single-Phase Grid-Tied inverter
PV
L
N
Reset
SMART METER
USB
Power Meter
CT1 [2]
CT2 [2]
To Battery Cable
To Smart Meter
Back-Up Load
Battery
On-Grid Lo
ad
RCD
RCD

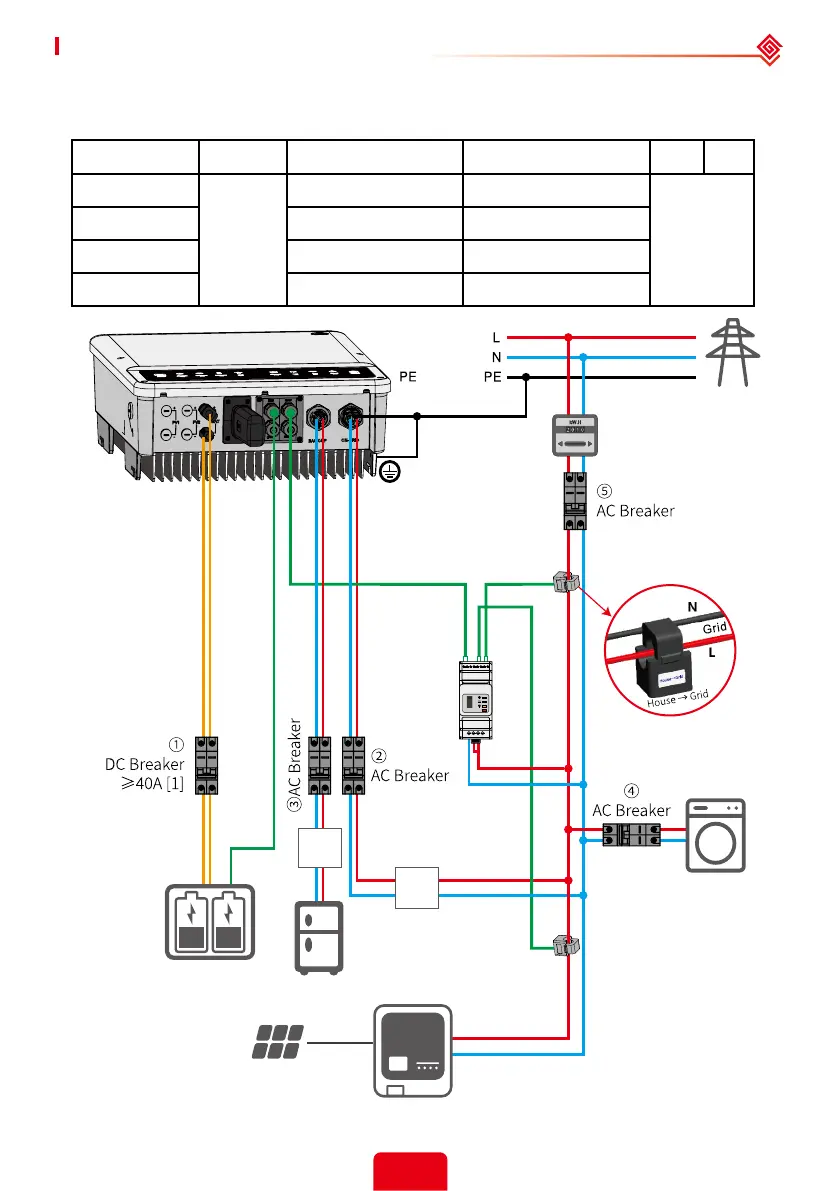

Wiring system
Note: This diagram indicates the wiring structure of the inverter, not the electric wiring standard.
Inverter
① ② ③ ④ ⑤
GW3K-BH
40A/600V
DC
breaker
50A/230V AC breaker 32A/230V AC breaker
Depends
on
household
loads
GW3600-BH 50A/230V AC breaker 32A/230V AC breaker
GW5000-BH 63A/230V AC breaker 32A/230V AC breaker
GW6000-BH 63A/230V AC breaker 40A/230V AC breaker
