12
User Manual V1.3-2021-12-15 02 Installation Instructions
MC
MC

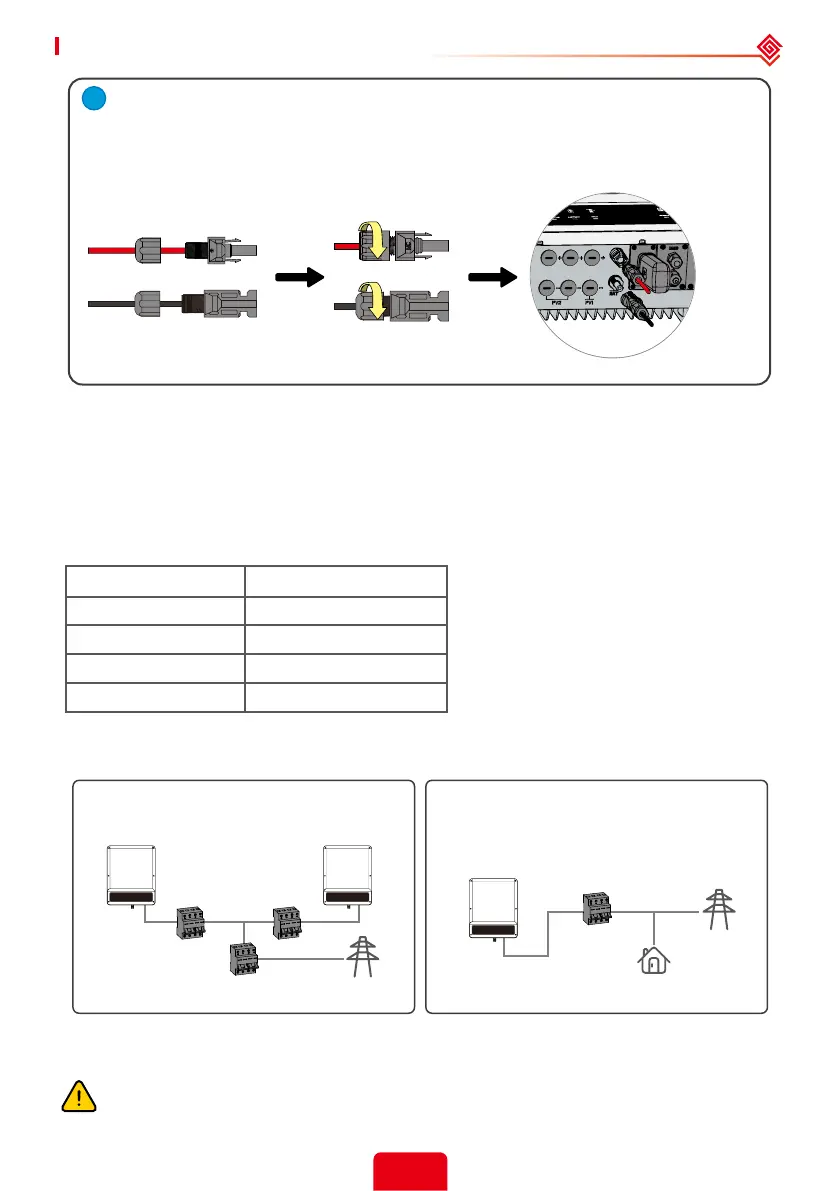

Screw the cap on and plug onto inverter side.
Note: There will be a click sound if connectors are inset correctly into BAT plugs.
Note: For the compatible lithium batteries (Pylon/BYD) connection, please refer to battery
connection.
2.4.3 On-Grid&Back-up Connection
An external AC breaker is needed for on-grid connection to isolate the inverter from the utility
grid when necessary.
The requirements for the on-grid AC breaker are shown below.
Note: The absence of AC breaker will lead to inverter damage if an electrical short circuit happens on
grid side.
1. Use separate AC breakers for individual
inverters.
AC breaker
AC breaker
AC breaker
AC breaker
Grid
Grid Load
2. On the AC side, an individual breaker
should be connected between the inverter
and grid but before any loads.
Inverter Model AC Breaker Specication
GW5K-BT 25A / 400V (e.g. DZ47-60 C25)
GW6K-BT 25A / 400V (e.g. DZ47-60 C25)
GW8K-BT 32A / 400V (e.g. DZ47-60 C32)
GW10K-BT 32A / 400V (e.g. DZ47-60 C32)
AC cable is required to connect to both on-grid and back-up side.
Make sure the inverter is totally isolated from any DC or AC power before connecting AC
cable.
To Next Page
