13
02 Installation Instructions User Manual V1.3-2021-12-15
Note:
1. Neutral cable shall be blue, line cable shall be black or brown (preferred) and protective earth cable
shall be yellow-green.
2. For AC cables, PE cable shall be longer than N&L cables, so in case that the AC cable slips or is taken
out, the protecting earth conductor will be the last to take the strain.

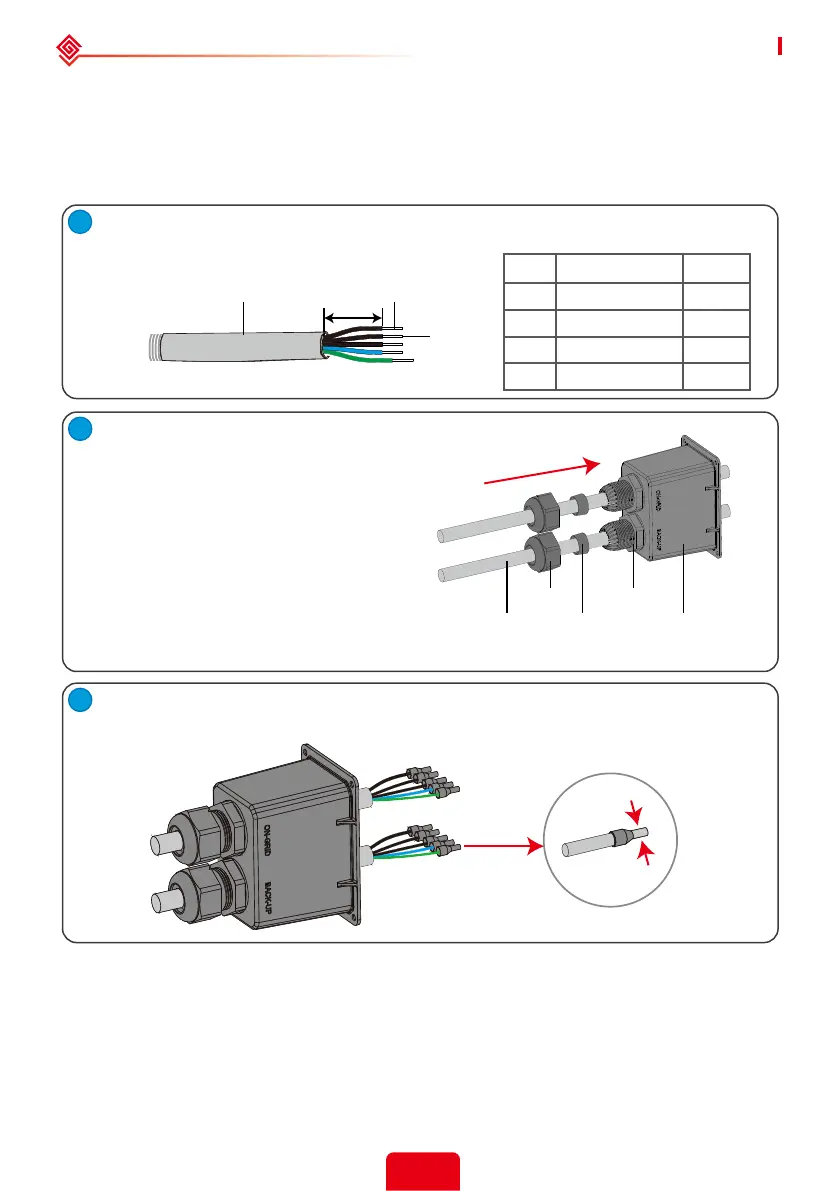

Prepare the terminals and AC cables according to the correct table.
A
B
C
D
1
Grade Description Value
A Outside diameter 13-18 mm
B Separated wire length 20-25 mm
C Conductor wire length 7-9 mm
D Conductor core section 4-6 mm
2
Cables
Screw Cap
AC Sheet Cover
The Insulator
Single Hole
Seal Ring
Place the AC cable through the terminal cover
as shown in the gure.
Note: Please use the terminals in the accessory
box.
Press the connectors tightly on the cable conductor core.
Note: Make sure the cable jacket is not locked within the connector.
To Next Page
