9
03 Product IntroductionUser Manual V1.1-2022-12-20
No. Parts Description
1 PV string PV string is composed of series connected PV panels. Only for hybrid
inverters.
2 Inverter Supports ET, ET Plus, and BT series inverters.
3 Battery Select the battery model according to the inverter model and the
approved battery list.
4 Battery
breaker
Recommended specications: nominal current40A, nominal
voltage600V.
5 AC circuit
breaker
For one inverter model, specications of the BACK-UP load breakers
and ON-GRID load breakers shall be the same. AC circuit breakers
should be prepared by the customers.
An SPDT switch is recommended to ensure that the BACK-UP loads
do not stop working when the inverter is o or in maintenance.
Recommended specications of AC Circuit Breaker and SPDT Switch:
For GW5KL-ET, GW5K-BT, GW5K-ET, GW5KN-ET, GW6KL-ET, GW6K-
BT, GW6.5K-ET, GW6.5KN-ET: the nominal current25A and the
nominal voltage400V.
For GW8KL-ET, GW8K-ET, GW8K-BT, GW8KN-ET, GW10KL-ET,
GW10K-BT, GW10K-ET, and GW10KN-ET: the nominal current32A
and the nominal voltage400V.
6 SPDT (Single
Pole, Double
Throw) switch
7 AC circuit
breaker
Depend on the actual using load.
8 Smart meter Included in the deliverables of the inverter. Recommended model:
GM3000.

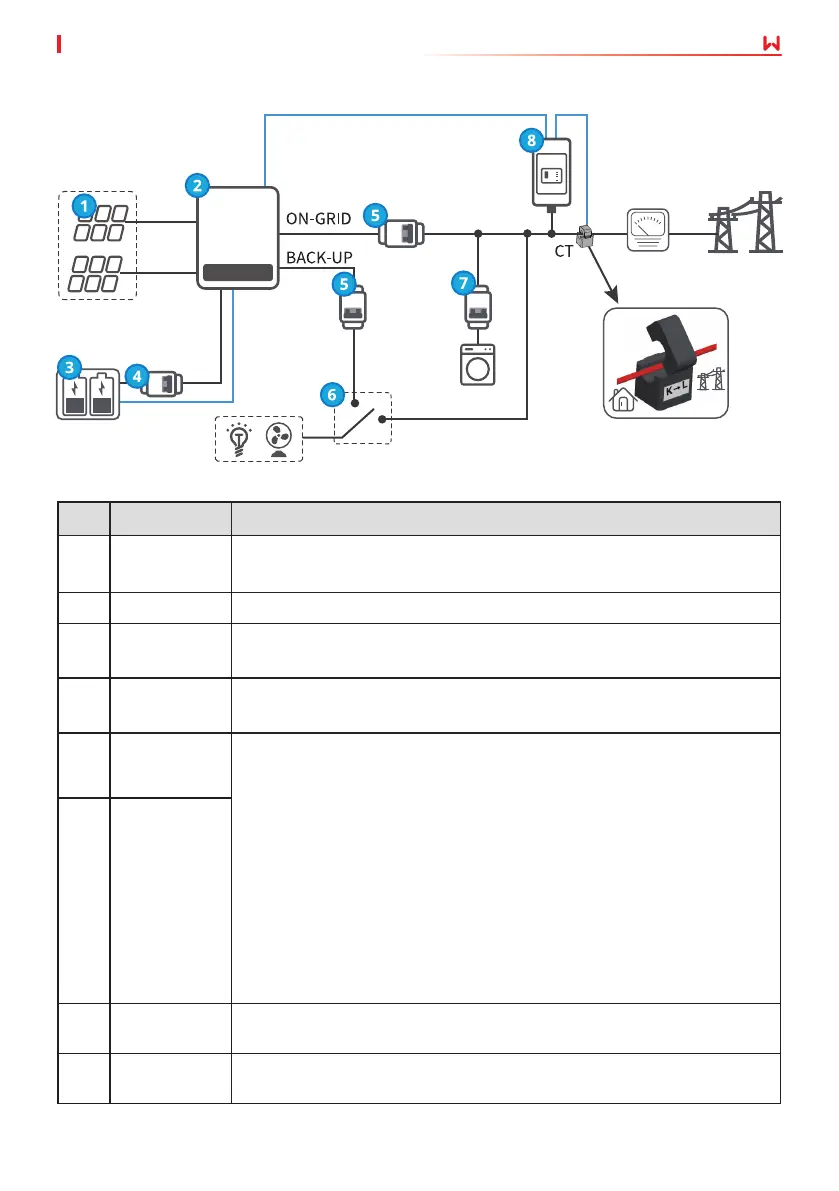

Self Consumption System (Hybrid Scenarios)
Utility
meter
Utility grid
PV string
Battery
Battery
breaker
Smart
meter
AC circuit
breaker
AC circuit
breaker
Household
loads
SPDT (Single Pole,
Double Throw) switch
BACK-UP loads
Inverter

Other manuals for Goodwe GW10K-ET

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Goodwe GW10K-ET and is the answer not in the manual?

Goodwe GW10K-ET Specifications

General IconGeneral
ModelGW10K-ET
Max. DC Input Voltage1000 V
Number of MPPTs2
Rated AC Output Power10000 W
Max. AC Output Power11000 VA
Frequency50 Hz / 60 Hz
Efficiency98.3%
Dimensions516 x 415 x 180 mm
Weight25 kg
Max. DC Input Power13000 W
Start Voltage180 V
MPPT Voltage Range200V - 1000V
Number of MPP Trackers2
Max. Short Circuit Current per MPPT15 A
Nominal AC Output Power10000 W
Max. AC Apparent Power11000 VA
Nominal AC Voltage230 V / 400 V
Nominal Grid Frequency50 Hz / 60 Hz
THDi<3%
DC SwitchYes
Protection ClassIP65
Operating Temperature Range-25°C to +60°C
Cooling MethodNatural Convection
Rated Output Power10000 W
Grid Frequency50 Hz / 60 Hz
Max. Efficiency98.3%
Noise Level<30 dB
Protection DegreeIP65
TypeThree Phase
AC Voltage Range180V - 280V
Power Factor0.8 leading - 0.8 lagging
Rated Grid Voltage230 V
