Goodwe GW10K-ET User Manual

10
03 Product Introduction User Manual V1.1-2022-12-20
Smart
meter
Smart
meter

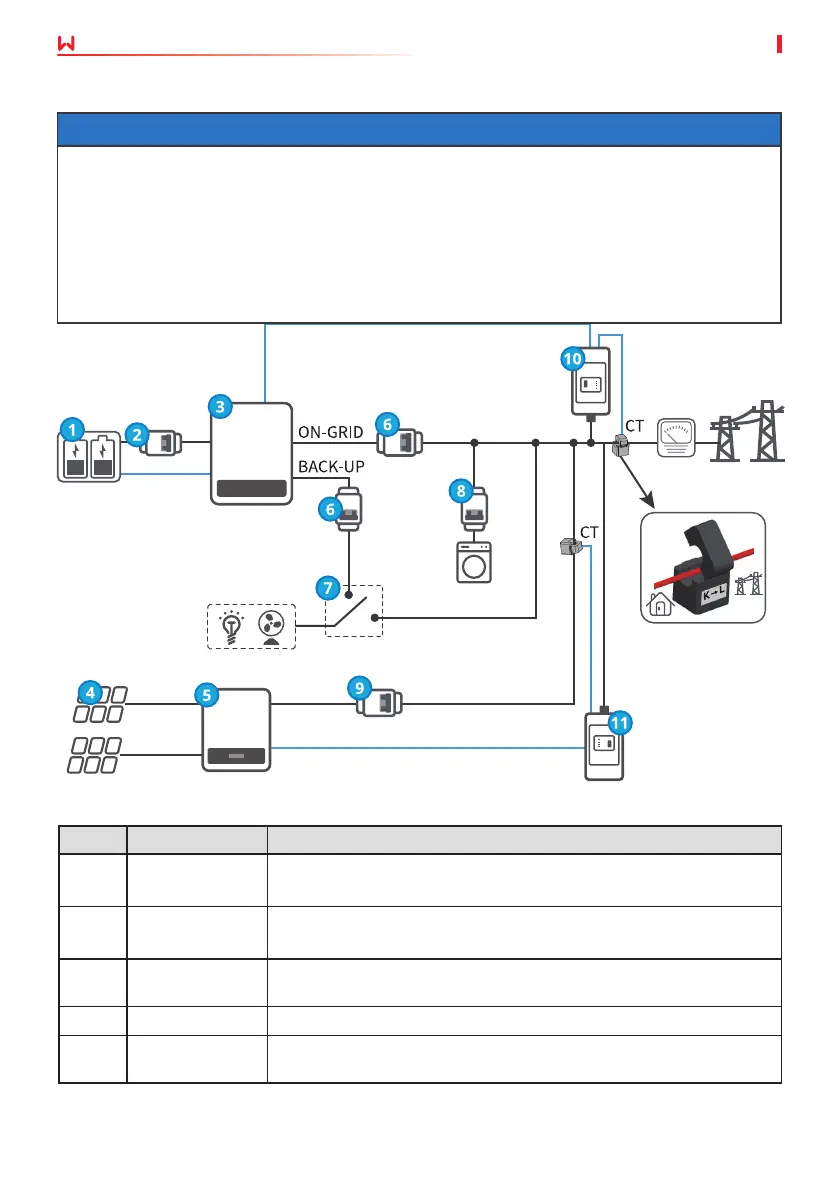

Self Consumption System (AC-Coupled Scenario)
Utility
meter
Utility grid
PV string
Battery
Battery
breaker
AC circuit
breaker
AC circuit
breaker
AC circuit breaker
SPDT (Single Pole,
Double Throw) switch
AC-
Coupled
inverter
Household
loads
BACK-UP loads
Grid-
Tied PV
inverter
NOTICE
• Before enabling the power limit function, ensure that the AC-Coupled inverter or hybrid
inverter supports power limit.
• Enable the power limit function if GoodWe AC-Coupled inverter or grid-tied PV inverter is
applied in the PV system. Complete the power limit settings as required if a grid-tied PV
inverter from other manufacturers is applied.
• When power limit function is enabled, the PV system will purchase 100W power from the
utility grid.
No. Parts Description
1 Battery Select the battery model according to the inverter model and the
approved battery list.
2 Battery breaker Recommended specications: nominal current≥40A, nominal
voltage≥600V.
3 AC-Coupled
Inverter
Supports BT series inverters.
4 PV String PV string is composed of series connected PV panels.
5 Grid-Tied PV
Inverter
Supports grid-tied PV inverters from a third-party.

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
