307-84710
Setup
1. Connect hose and gun.
(Refer to Fig. 2.)
a. Remove
the plastic cap plug from
the filter outlet
nipple (57) and screw the 50 ft. (15.2 m) main
fluid
hose (202) onto the nipple.
b. Connect the whip end hose (203) between the
main
fluid hose and
the gun (204) inlet adapter
.
c. DO
NOT use thread sealant, and DO NOT install
the
spray tip yet!
WARNING
If you are supplying your own hoses and spray gun,
be
sure the hoses are electrically conductive, that
the
gun
has a tip guard, and that each part is
rated for at
least
3000 psi (210 bar) Maximum Working Pressure
.
This
is to reduce the risk
of serious injury caused by
static sparking, fluid injection or over-pressurization
and
rupture of the hose or gun.
2. Two
gun hookup.
(Refer to Fig. 2.) Remove the cap
(56) from the secondary hose outlet and attach an
accessory
hose and gun to the 1/4 npsm(m)
nipple.
CAUTION
To avoid damaging the pressure control, which may
result in poor equipment performance and compo-
nent
damage, follow these precautions.
1. Always use nylon spray hose at least 50 ft.
(15.2 m)
long.
2.
Never use a wire braid hose; it is too rigid to act
as a pulsation dampener
.
3. Never
install any shutof
f device between the filter
(51)
and the main hose (202). See Fig. 2.
4. Always
use the
main filter outlet (57) for one gun
operation.
Never plug this outlet.
3. Fill
packing nut/wetcup.
(See Fig. 2.) Fill the pack
-
ing
nut/wetcup (416) 1/3 full with
Graco Throat Seal
Liquid
(TSL), supplied.
4. Check
the engine oil level.
Refer to the Honda en
-
gine manual, supplied. This is a summary of the in-
formation: Remove one of the oil fill plugs; the oil
should
be almost overflowing. See Fig. 3. Add oil
as
necessary.
Recommended lubrication oil: Use a high–quality,
detergent oil, SAE 10W–40, classified “FOR SER-
VICE
SE or SF”, for regular use and for breaking–in
a
new engine.

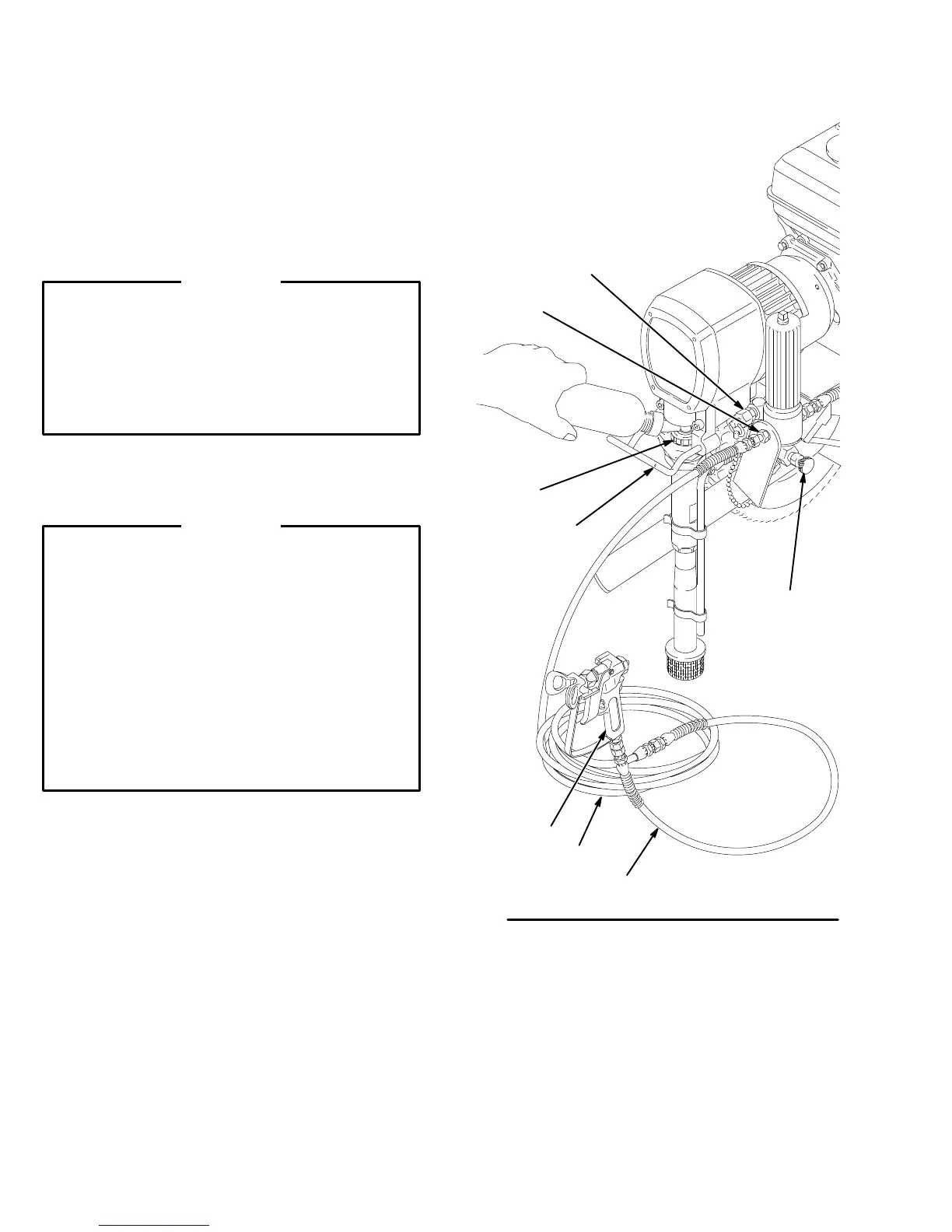

Fig. 2
0140
KEY
53 Pressure
drain valve
56
Secondary hose cap
57
Outlet nipple
71
Pail hanger
202
Main hose
203
Whip end hose
204
“Contractor” gun with RAC IV
Dripless tip guard and 517
size SwitchT
ip
416 Wetcup
56
71
53
204
202
204
57
416
To Next Page
