Clamp
NOTE: A
standard steering wheel puller and two 1/4–28
x
3 or 4 in. long screws are required to remove the
clamp.
NOTE: Refer
to Fig. 15.
1. Loosen
the two screws (16) on the clamp (3), work
-
ing
through the slot at the bottom of the clutch hous
-
ing (2).
2. Install two screws (B) of the tool (A) in two of the
threaded holes in the clamp (3). Tighten the screw
(C)
until the clamp comes of
f.
3. Skip
ahead to
Reassembly
,
page 26, Step 3, or con
-
tinue
to the right.

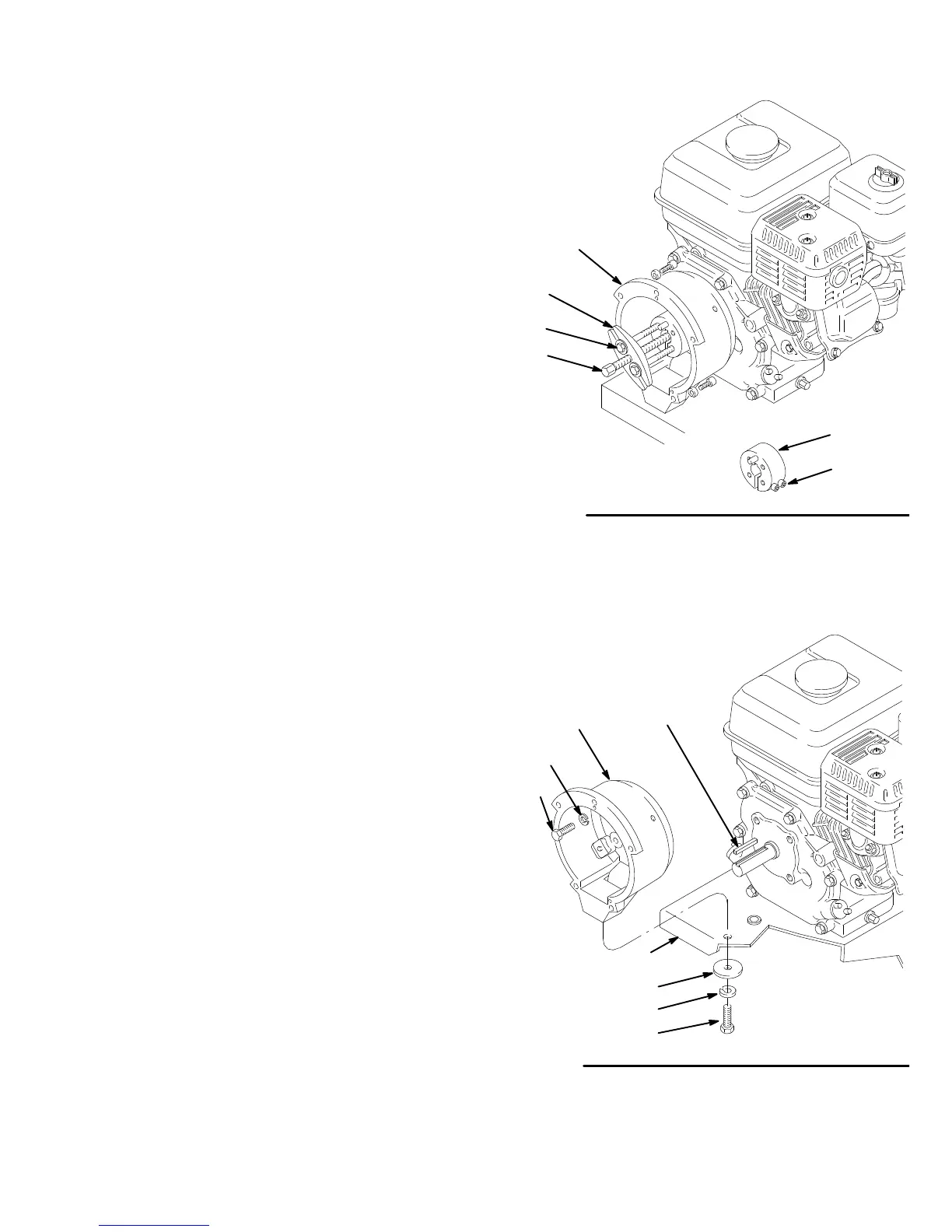

Fig. 15
2
3
16
C
B
A
0155
Clutch
Housing
NOTE: Refer
to Fig. 16.
1. Remove
the four capscrews (8) and lockwashers (9)
which
hold the clutch housing (2) to the engine.
2. Remove the capscrew (15), lockwasher (80) and
washer
(99) from beneath the mounting plate (D).
3.
Remove the engine key (13).
4.
Pull of
f the clutch housing (2).
5.
Skip ahead to
Reassembly
,
page 26, Step 1.
Fig. 16
8
9
2
13
99
80
15
D
0156
