Field and W iring Harness
NOTE: Refer to Fig. 14.
1. Remove the engine from the cart. See page 23.
2. Pull the plastic caps (B) off the wire screws (98) in
both places on the field. Loosen the screws and re-
lease
the wires (96).
3. Loosen the four setscrews (12) holding the field (6)
to
the clutch housing (2).
4. Pull of f the field.
5. Skip ahead to Reassembly , page 26, Step 4 or con -
tinue
on page 25.

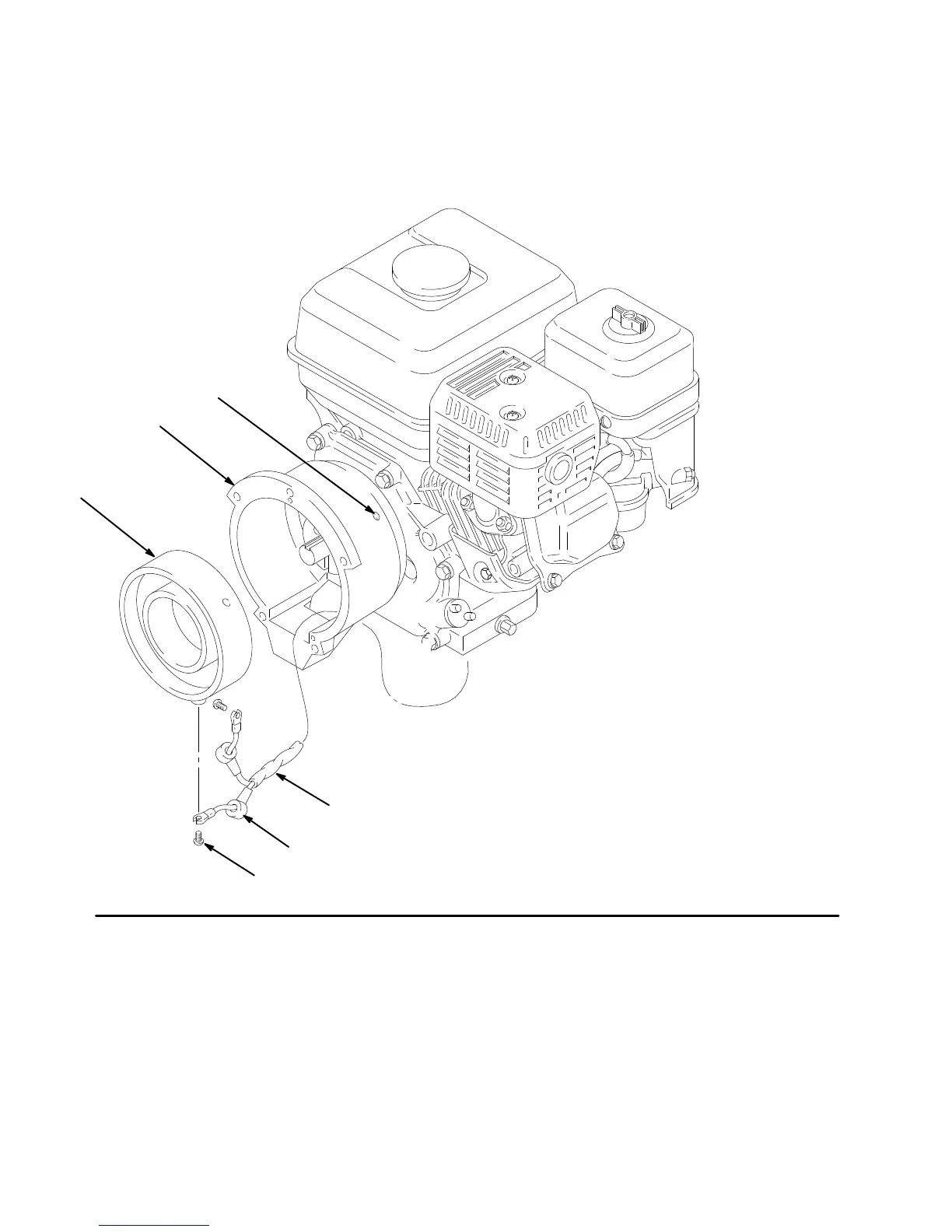

Fig. 14
6
2
12
96
98
B
0046
