307-84740
Parts
– Pressure Control
Part
No. 222–369 – Basic Pressure Control for the GM5000 Sprayers
Includes items 300 to 313,315, 325 and 326. Does not includes items 314,316 to 320.
For Upright Cart Sprayers
,
Order the Basic Pressure Control 222–369, and item 314 and/or 316 to 318 as required
For Lo–Boy Cart Sprayers
,
Order the Basic Pressure Control 222–369, and item 314 and/or 319 and 320 as required
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
300
{ 222–380 PRESSURE CONTROL
Includes items 302 to 304
1
301Y{ 183–466
LABEL, warning
1
302
{ 105–679 ON/OFF SWITCH 1
303{ 105–659 BOOT, switch 1
304
{ 107–255 GUARD, locking 1
305
{ 157–021 LOCKW
ASHER, No. 8, internal
2
306
{ 100–284 NUT
, hex, msc 8–32
1
307
{ 108–219
RECTIFIER, bridge
1
308
{ 108–783 SCREW
, mach, frhd 8–32 x
13
/
16
”1
309{ 222–352 TRIAC ASSEMBLY 1
310
{ 107–070 SCREW
, flat head; csk hd
2
311
{ 100–072 NUT
, hex
2
312
{ 103–181 LOCKWASHER 2
313{ 220–979 CONDUCTOR, red 2
314 220–978 CONDUCT
OR, red, white, black
1
315{ 100–035 SCREW
, mach, slotted pan head;
No. 8 x 5/16”
1
316 183–461
NIPPLE, hex; 3/8–18 npsm x 1/4–18
2
317 100–840 ELBOW, str
, 1/4–18 npt (m x f)
2
318 108–852 CONNECTOR, 45
_ 1
319 156–823 UNION, swivel, 1/4 npt (f) swivel x
1/4 npt(m)
1
320 110–195 UNION, swivel, 45
_ 2
325{ 108–814
PLUG, pipe
1
326
{ 101–754
PLUG, pipe
1
Y
Replacement Danger and W
arning labels, tags and cards
are available at no cost.
{
Parts marked with a dagger are supplied with the basic
pressure control. See Parts Drawing on page 41.

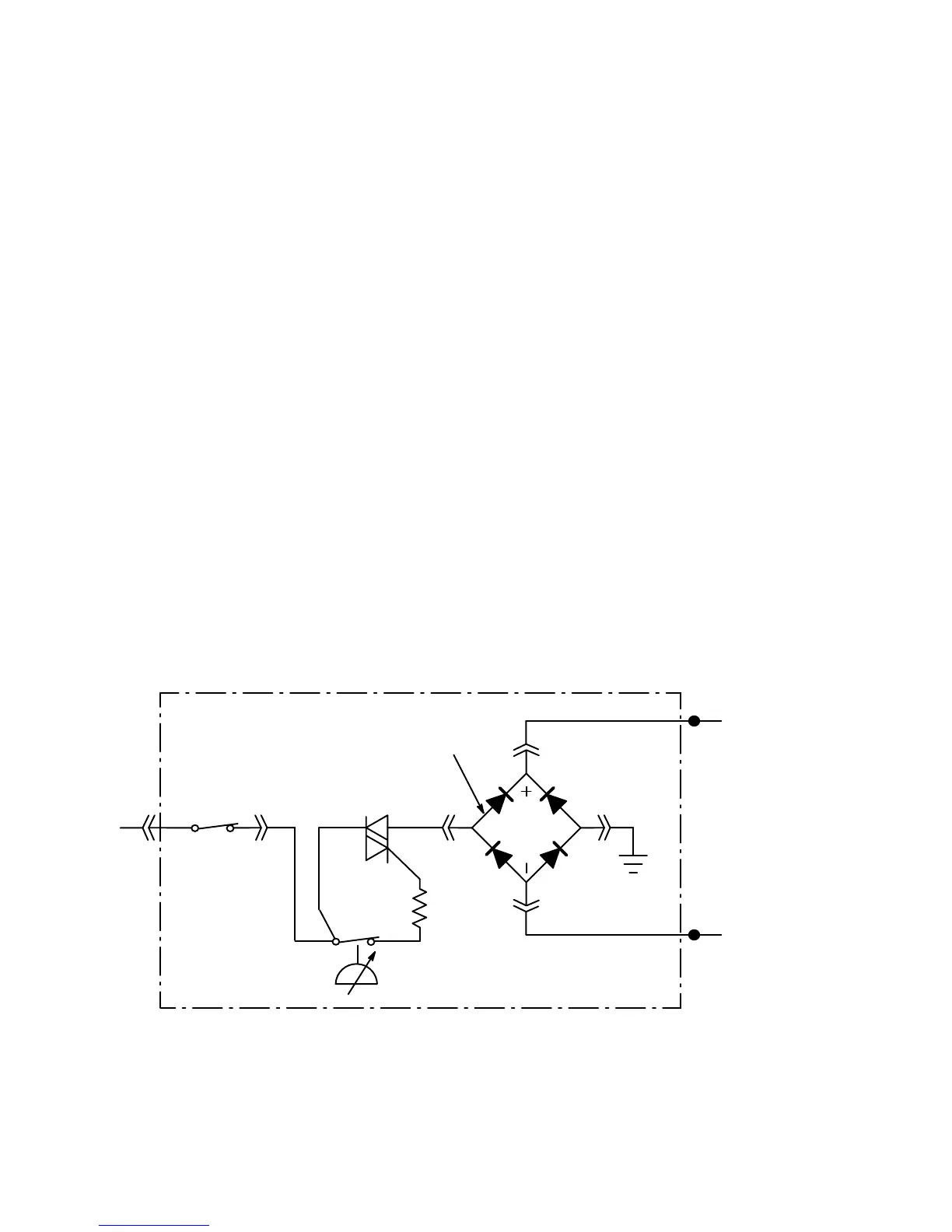

Wiring
Schematic – Pressure Control
WHITE
RED
BLACK
WHITE
ADJUSTABLE
PRESSURE
SWITCH
GROUND
RED
RED
MAIN
SWITCH
MT2 MT1
G
R
CLUTCH
FIELD
CLUTCH
FIELD
RECTIFIER
CNO
ENGINE
0054
RED
RED
