Graco GM 5000 User Manual


Parts – Displacement Pump
Model 220–872, Series A
Includes items 401 to 425
REF
NO. PART NO. DESCRIPTION QTY
401* 107–098 P
ACKING, o–ring, PTFE  1
403* 108–690
SEAL, u–cup, polyurethane 1
404* 108–775 BALL; sst 1
405* 183–171 PLUG 1
406* 183–174 V–P
ACKING, leather 2
407* 183–175 V–P
ACKING, leather 2
408* 183–176
GLAND, male 1
409* 183–177
GLAND, female 1
410* 183–178
GLAND, male 1
411
183–179 NUT , hex, retaining 1
412* 183–182 V–P
ACKING, polyurethane 3
413* 183–183 V–P
ACKING, polyurethane 3
414* 186–653 WASHER, backup 1
415* 183–185
GLAND, female 1
416 183–186 NUT
, packing 1
417* 183–172 O–RING, PTFE
 1
418 183–361 SLEEVE, cylinder 1
419 183–181 CYLINDER 1
420 183–180
GUIDE, ball 1
421* 183–173
PIN, ball stop 1
422 220–631 VAL
VE, piston 1
423 220–629 VAL
VE, intake 1
424 220–630 ROD, piston 1
425* 101–947
BALL 1
* These parts are also included in Repair Kit 220–877,
which may be purchased separately . Keep an extra kit on
hand to reduce down time.
Accessories
224–788 Sleeve Removal T ool
220–877
Packing Repair Kit
See contents in parts list, above

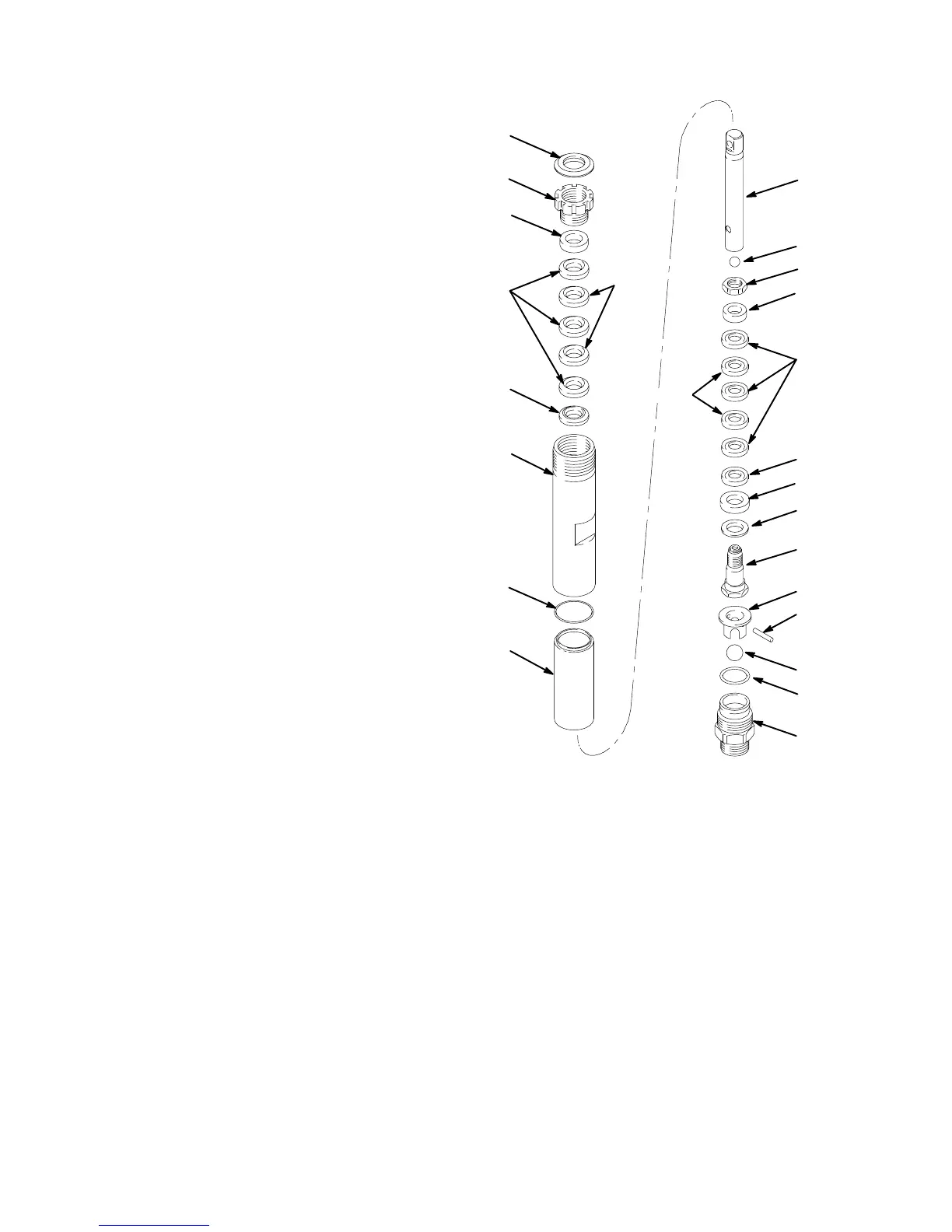

*405
416
*409
*413
*408
419
*417
418
407*
424
425*
411
410*
415*
403*
414*
422
420
421*
404*
401*
423
*406
412*
