Graco GM 5000 User Manual

307-847 35

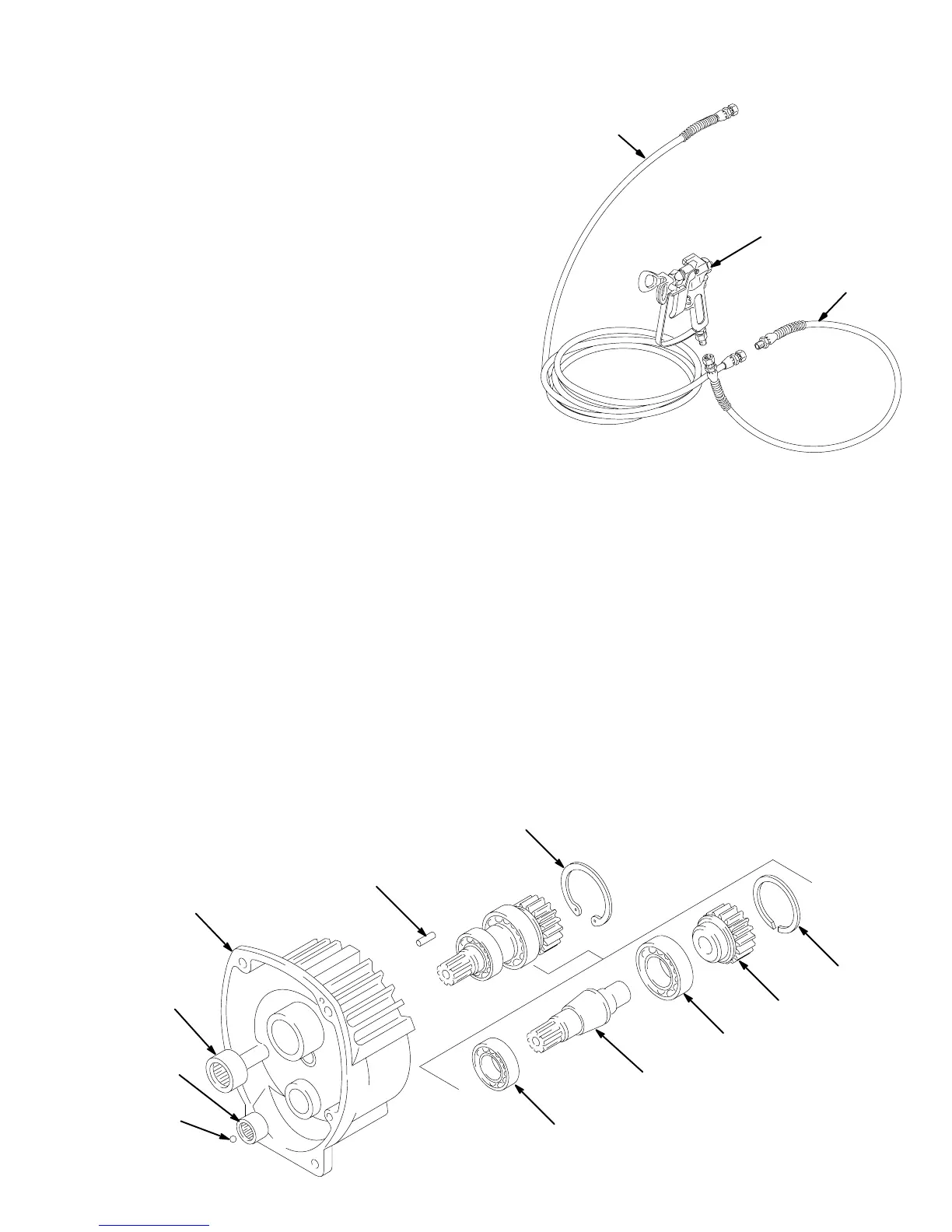

Parts – Complete Sprayers
Model 231–052 Sprayer with Upright cart
Includes items 201 to 204
Model 231–085 Sprayer with Lo-Boy cart
Includes items 202 to 205
Ref
No. Part No. Description Qty
201 220–886 GM5000 Upright Basic Sprayer
See parts list on page 37 1
202 223–541
HOSE, grounded, nylon; 1/4” ID;
cpld 1/4 npsm(fbe); 50 ft (15 m);’
spring guards both ends 1
203 214–701
HOSE, grounded, nylon; 3/16” ID;
cpld 1/4 npsm(m) x 1/4 npsm(f) swivel;
3 ft (0.9 m); spring guards both ends 1
204 220–955 “CONTRACTOR” SPRAY GUN
Includes RAC IV
 DripLess T ip Guard
and 517–size SwitchT ip
See 307–614 for parts 1
205 222–488
GM5000 Lo-Boy Basic Sprayer
See parts list on page 39 1
204
203
202
0160
Parts – Pinion Assembly
Ref No. 19
Pinion Housing Assembly 220–920
Includes items 19a to 19m
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
19a 183–394 .HOUSING, pinion 1
19b 105–489
.PIN, dowel 2
19c 108–692 .BEARING 1
19d 100–069 .BALL, sst 1
19e 107–088 .BEARING 1
19f** 108–797**
.BEARING, ball, small 1
19g** 183–395** .SHAFT
, pinion 1
19h** 108–798**
.BEARING, ball, large 1
19j** 183–396**
.HUB, armature 1
19k 108–799
.RING, retaining, internal, large 1
19m** 108–796**
.RING, retaining, small 1
**Included in Repair Kit No. 221–032.
19a
19c
19d
19b
19k
19m**
19j**
19h**
19g**
19f**
19e
0169
