Engine
NOTE: The engine must be removed before the Field,
Clamp
and Clutch Housing can be removed.
1. Working under the mounting plate (A) of the cart, re -
move the screw (15), lockwasher (80) and washer
(99) which hold the clutch housing (2) to the cart. See
Fig. 13.
2. Still working under the mounting plate, remove the
two
locknuts (1 1 1) and then pull the screws (14) out
of the base of the engine. Disconnect the red wire
from the engine lead (B). Disconnect the black and
white wires from the field. For the upright cart only
,
loosen the clamp (97). Pull the wires carefully
through the grommets (66) before removing the en -
gine.
See Fig. 12 and 13.
3. Lift the engine carefully and place it on a work bench.
4. Remove the Field and W iring Harness, Clamp and
Clutch Housing , as instructed on pages 24 and 25.
5. Skip ahead to Reassembly , page 27, Step 5.
NOTE: All service to the engine must be performed by
an
authorized HONDA dealer .

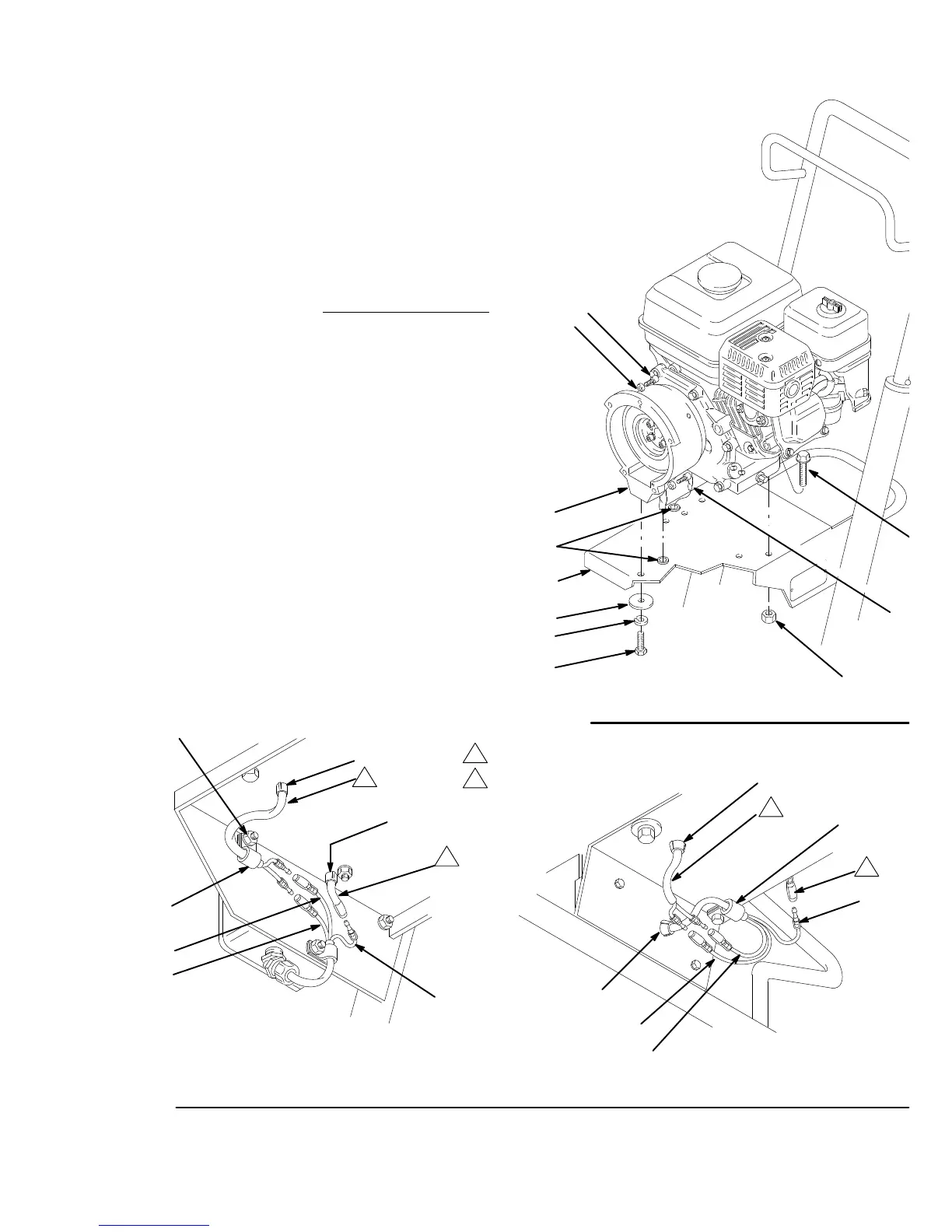

Fig. 12
10
11
2
99
80
15
111
66
B
A
Fig. 13
View from under engine mounting
plate on upright cart
V iew from under engine mounting
plate on lo-boy cart
97
97
WHITE
BLACK
RED
66
66
WHITE
BLACK
RED
66
66
0154 0147
62,9,61
1
2
T
o field
T o engine
1
1
2
2
