307-847 13

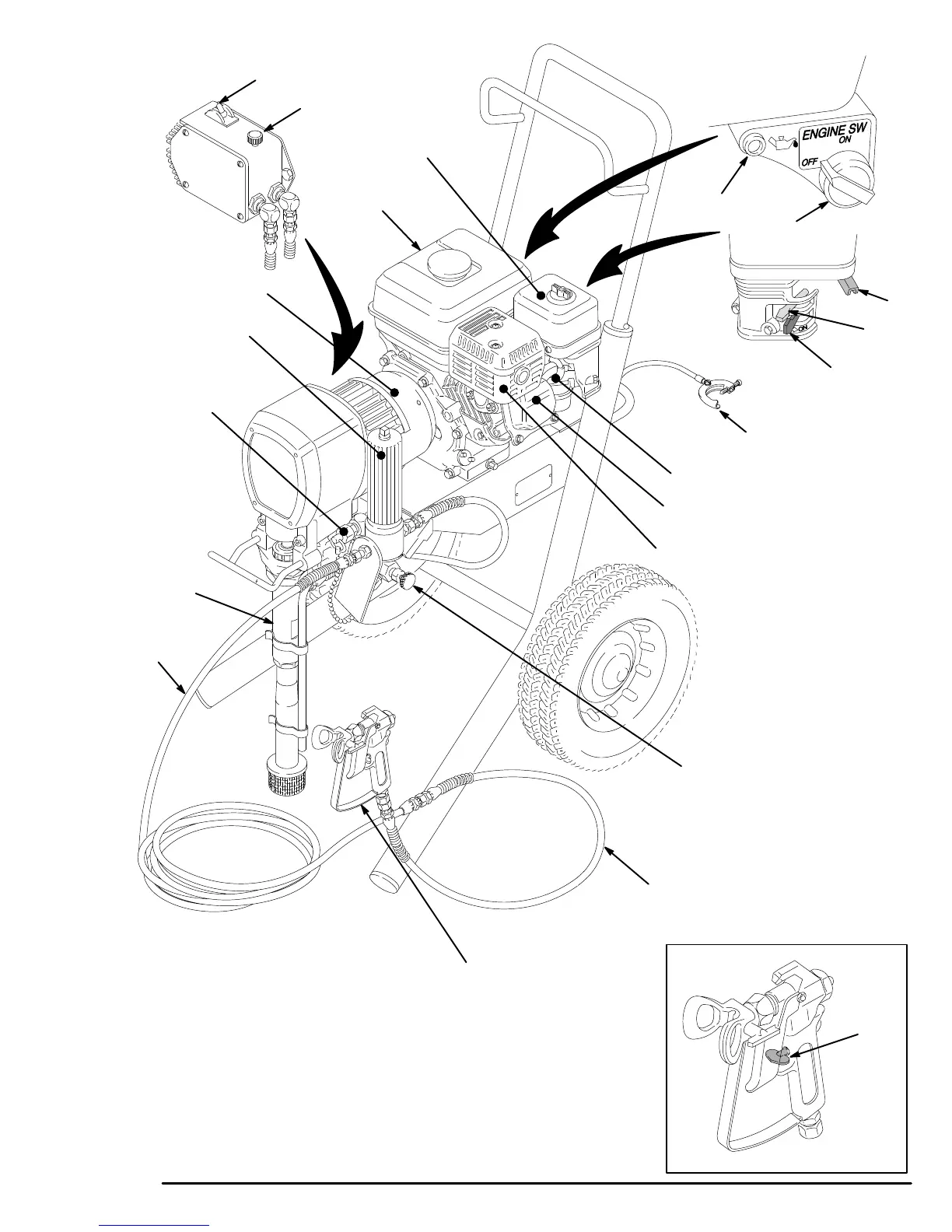

Fig. 4
0136
0015
0016
0138
KEY
A Pressure
Control ON/OFF
switch
B
Pressure adjusting knob
C Air cleaner
D Fuel T ank
E Muffler
F Engine
G
Spark plug cable
H Fuel shutof f lever
J Choke
K Throttle
L
Engine ON/OFF switch
M Engine oil light
NT rigger safety latch
(shown engaged)
4 Clutch
28
Displacement pump
47 Grounding wire and clamp
51 Fluid filter
53 Pressure drain valve
56 Secondary hose outlet cap
202 Main hose
203 Whip end hose
204 “Contractor” gun with RAC
IV Dripless tip guard and
517 size SwitchT ip
203
204
53
E
F
G
47
H
J
K
L
M
A
B
C
D
4
51
28
202
0137
N
56
