Graco Reactor 2 E-XP2 Operation

Setup
Connect Connect
Connect
Heated Heated
Heated
Hose Hose
Hose
to to
to
Proportioner Proportioner
Proportioner
Seetheheatedhosemanualfordetailedinstructions.
1.Forproportionerswithterminationbox(TB):
a.Connecthosepowerwirestoterminalblock
(T)onterminationbox(TB).Removebox
coverandloosenlowerstrainrelief(E).
Routehosewires(V)throughtheboxstrain
reliefandfullyinsertintoterminalblock(T).A
andBhosewirepositionsarenotimportant.
Torqueto35–50in-lb(4.0–5.6N·m).
b.Fullytightenstrainreliefscrewsandreplace
cover.

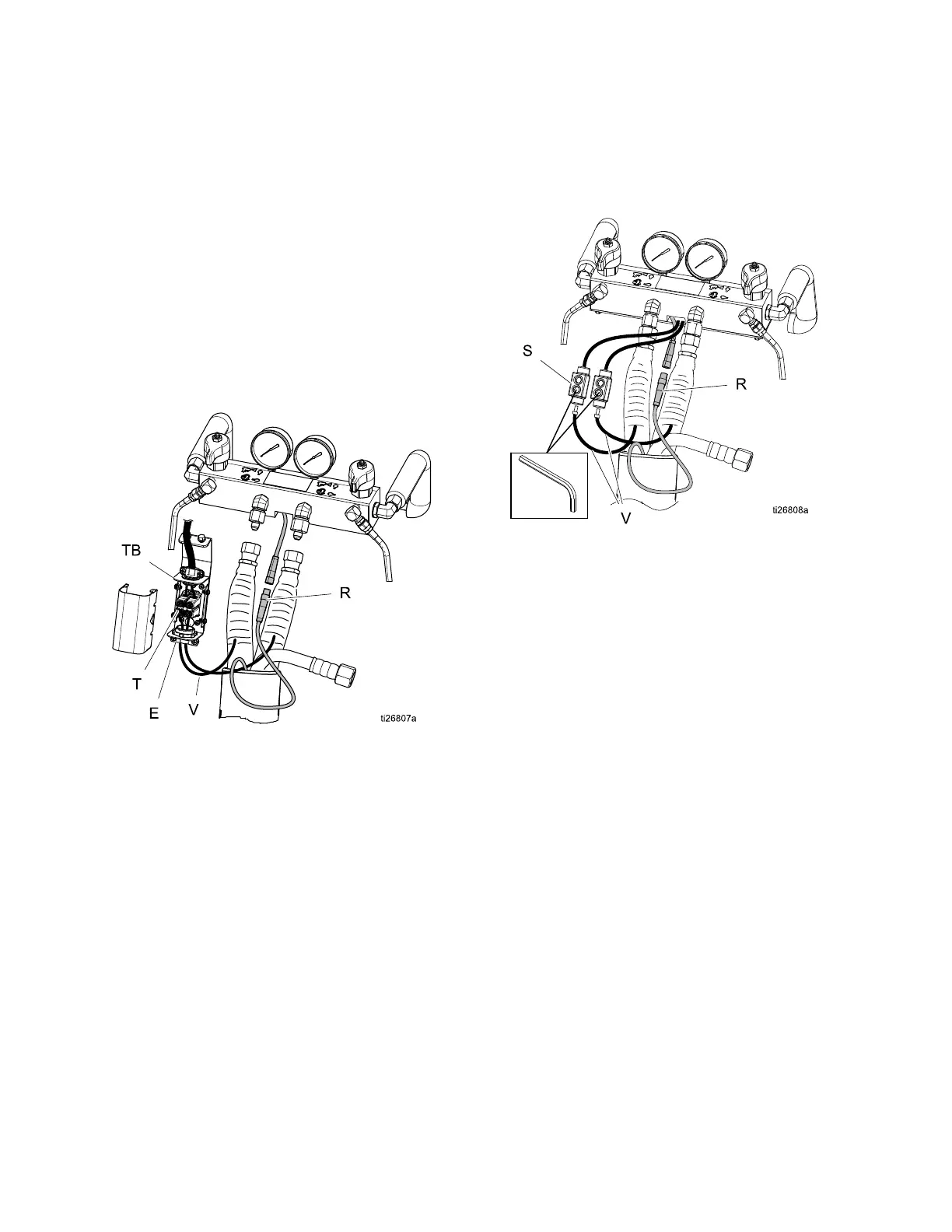

Figure11TerminationBox
2.Forproportionerswithelectricalspliceconnectors
(S):
a.Connecthosepowerwirestoelectricalsplice
connectors(S)fromproportioner.Wrap
connectionswithelectricaltape.
Figure12ElectricalSpliceConnectors
3.ConnectFTScableconnectors(R).Fullytighten
RTDconnectors,ifprovided.
30333023M

Graco Reactor 2 E-XP2 Specifications

General

Brand	Graco
Model	Reactor 2 E-XP2
Category	Paint Sprayer
Language	English
