ManualHoseMode
Manual Manual
Manual
Hose Hose
Hose
Mode Mode
Mode
IfthesystemproducestheT6DHsensorerrorhose
alarmortheT6DTsensorerrorTCMalarm,use
ManualHoseModeuntilthehoseRTDcableorFTS
temperaturesensorcanberepaired.
NOTE: NOTE:
NOTE:
DonotusetheManualHoseModefor
extendedperiodsoftime.Thesystemperformsbest
whenthehosehasavalidRTDandcanoperatein
temperaturecontrolmode.IfahoseRTDbreaks,the
󰘰rstpriorityisto󰘰xtheRTD.ManualHoseModecan
help󰘰nishajobwhilewaitingforrepairparts.
Enable Enable
Enable
Manual Manual
Manual
Hose Hose
Hose
Mode Mode
Mode

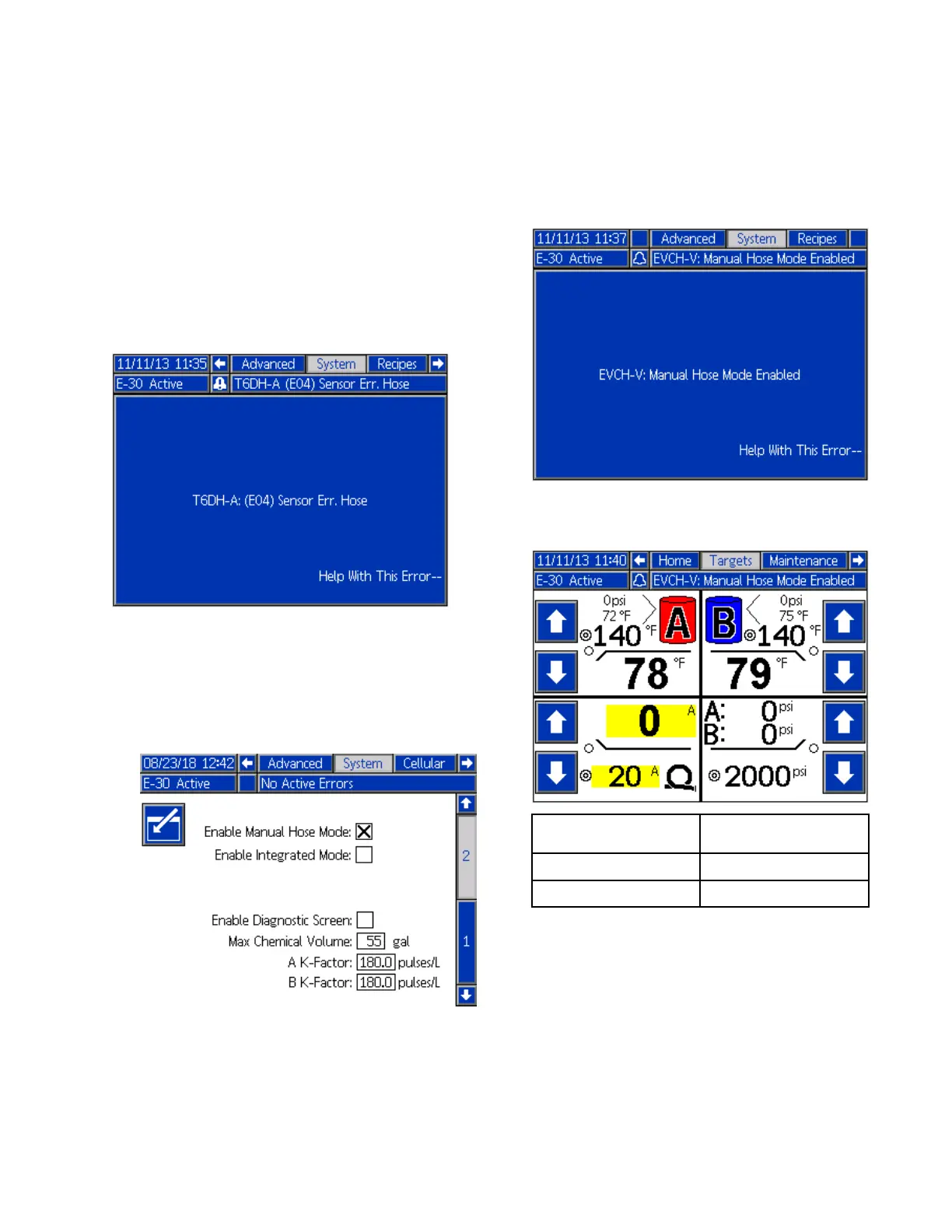

1.DisconnectthehoseRTDsensorfromtheTCM.
2.EnterSetupModeandnavigatetoSystem
Screen2.
3.SelectEnableManualHoseMode.
Note
Whenmanualhosemodeisenabled,the
manualhosemodeadvisoryEVCH-V
willappear.
4.EnterRunModeandnavigatetotheTarget
screen.Usetheupanddownarrowstosetthe
desiredhosecurrent.
Hose Hose
Hose
Current Current
Current
Settings Settings
Settings
Hose Hose
Hose
Current Current
Current
Default
20A
Maximum37A
333023M51
