System1
System System
System
1 1
1

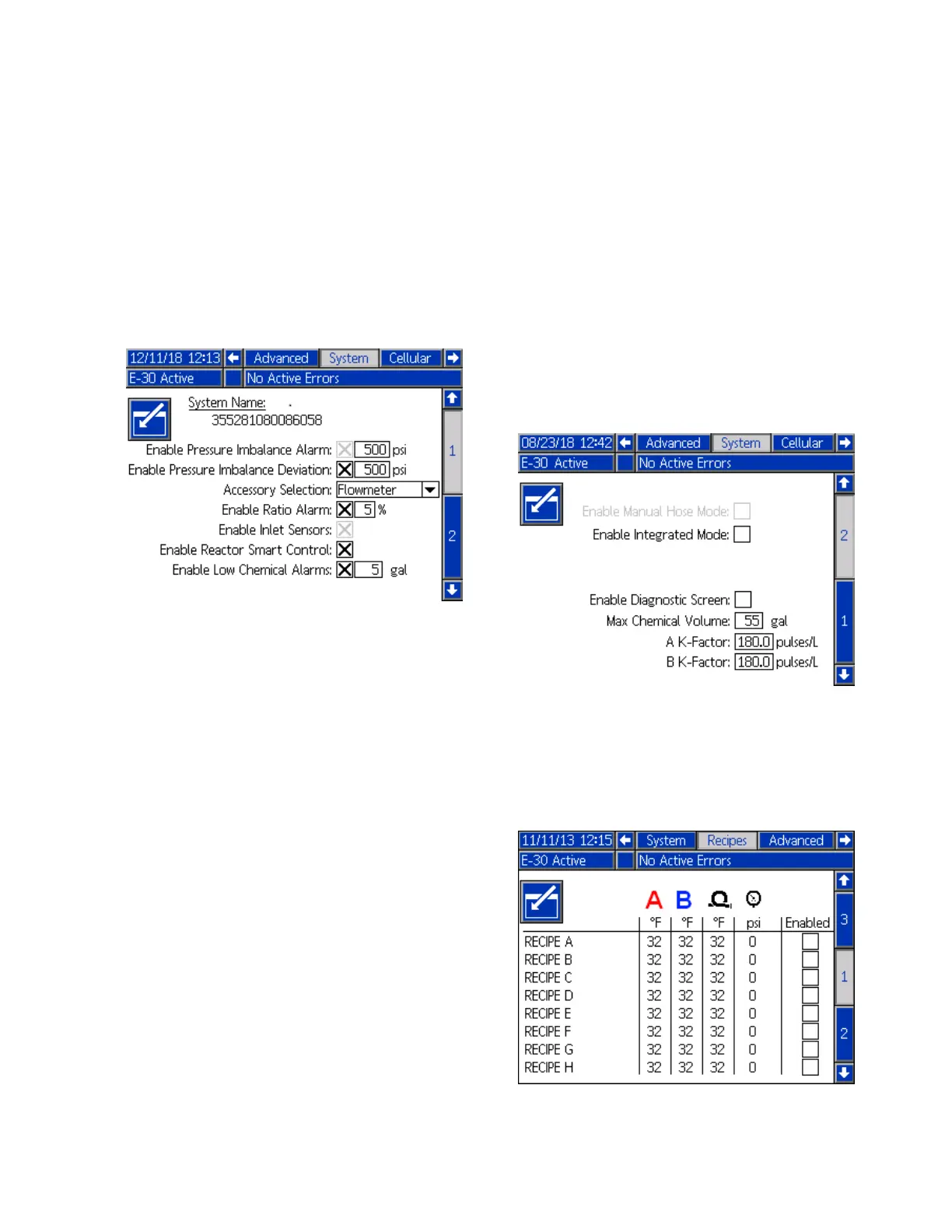

Usethisscreentoenablepressureimbalancealarms
anddeviations,setpressureimbalancevalues,
enablelowchemicalalarm,andenableinletsensors.
Selectaccessoriesusingthisscreen.Ifthe󰘱ow
meteraccessoryisinstalled,usethisscreento:
Enableratioerrors.
Settheratioalarmpercentage.
EnableReactorSmartControl.
System System
System
2 2
2
UsethisscreentoenableManualHoseMode,
IntegratedMode,andthediagnosticscreen.This
screencanalsobeusedtosettheprimaryheater
size,setthemaximumandminimumdrumvolume,
andenablethedrumalarms.
ManualHoseModedisablesthehosetemperature
RTDsensorsothesystemcanoperateifthe
sensorsweretomalfunction.ManualHoseMode
isonlyavailablewhenthehosetemperatureRTD
sensorisdisconnected.IntegratedModeallowsthe
Reactor2tocontrolanIntegratedPowerStation,if
theIntegratedPowerStationisinstalled.Ifthe󰘱ow
meteraccessoryisinstalled,usethisscreentoset
thek-factors.K-factorsareprintedonthe󰘱owmeter
serialnumberlabels.
Recipes Recipes
Recipes
Usethisscreentoaddrecipes,viewsavedrecipes,
andenableordisablesavedrecipes.Enabled
recipescanbeselectedattheHomeRunScreen.24
recipescandisplayedonthethreerecipescreens.
333023M35
