Graco Reactor 2 E-XP2 Operation

RunMode

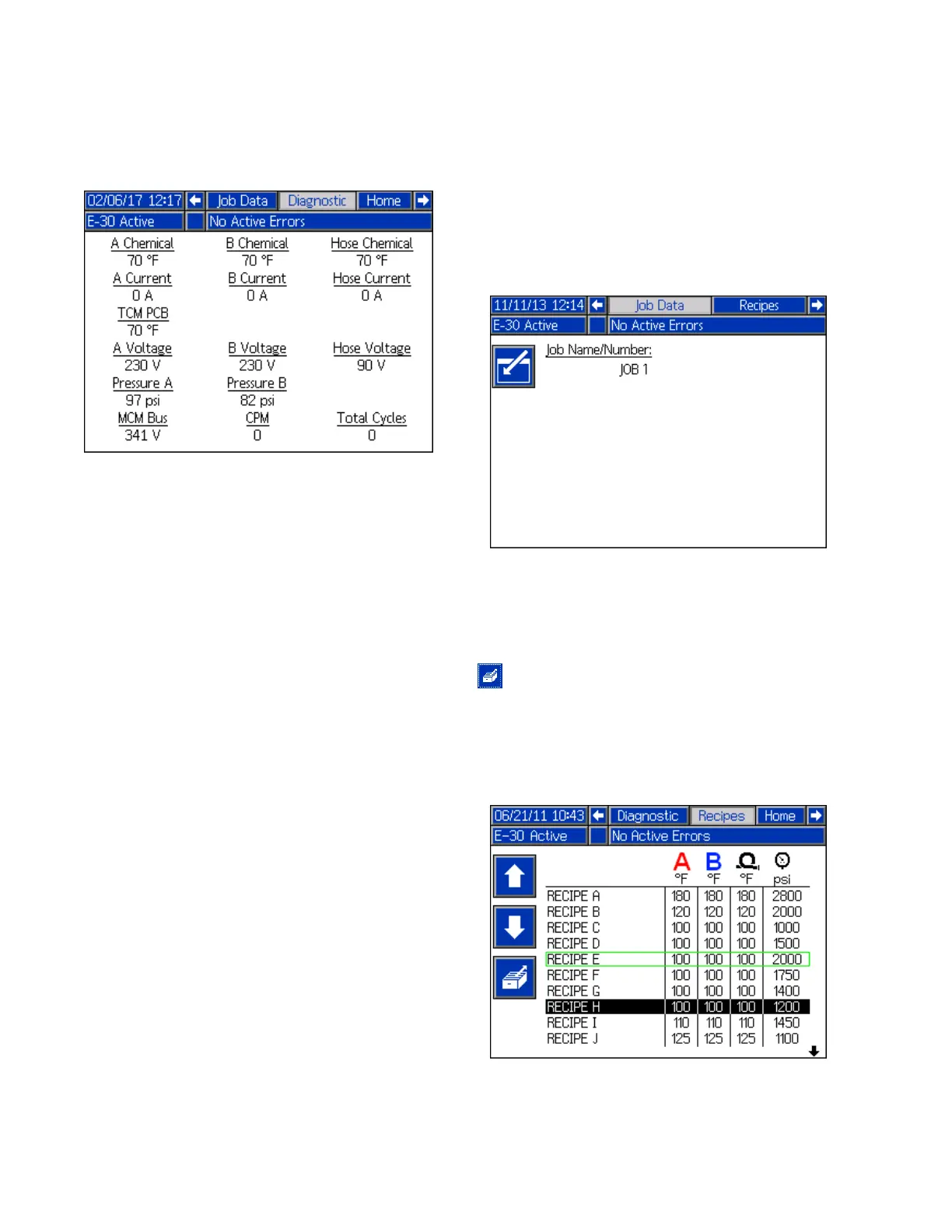

Diagnostic Diagnostic
Diagnostic
Usethisscreentoviewinformationforallsystem
components.
Thefollowinginformationisdisplayed:
Temperature Temperature
Temperature
•AChemical
•BChemical
•HoseChemical
•TCMPCB—temperaturecontrolmodule
temperature
Amps Amps
Amps
•ACurrent (0–25Afor10kWheater,0–38Afor
15kWheater)
•BCurrent (0–25Afor10kWheater,0–38Afor
15kWheater)
•HoseCurrent (0–45Atypical)
Volts Volts
Volts
•MCMBus —displaysthevoltagesuppliedtothe
motorcontroller,whichistheDCvoltagethathas
beenconvertedfromtheACvoltagesuppliedto
thesystem(275–400Vtypicalfullrange)
•AVoltage–VoltagesuppliedtoAheater(195–240
Vtypical)
•BVoltage–VoltagesuppliedtoBheater(195–240
Vtypical)
•HoseVoltage(90V)
Pressure Pressure
Pressure
•PressureA—chemical
•PressureB—chemical
Cycles Cycles
Cycles
•CPM—cyclesperminute
•TotalCycles—lifetimecycles
Note
Maximumvaluesbasedonmaximuminput
voltage.Valueswilllowerwithlowerinput
voltage.
Job Job
Job
Data Data
Data
Usethisscreentoenterajobnameornumber.
Recipes Recipes
Recipes
Usethisscreentoselectanenabledrecipe.Usethe
upanddownarrowstohighlightarecipeandpress
toload.Thecurrentlyloadedrecipeisoutlined
byagreenbox.
Note
Thisscreenwillnotdisplayiftherearenot
anyenabledrecipes.Toenableordisable
recipes,seeRecipesSetupScreen,page35.
42
333023M
