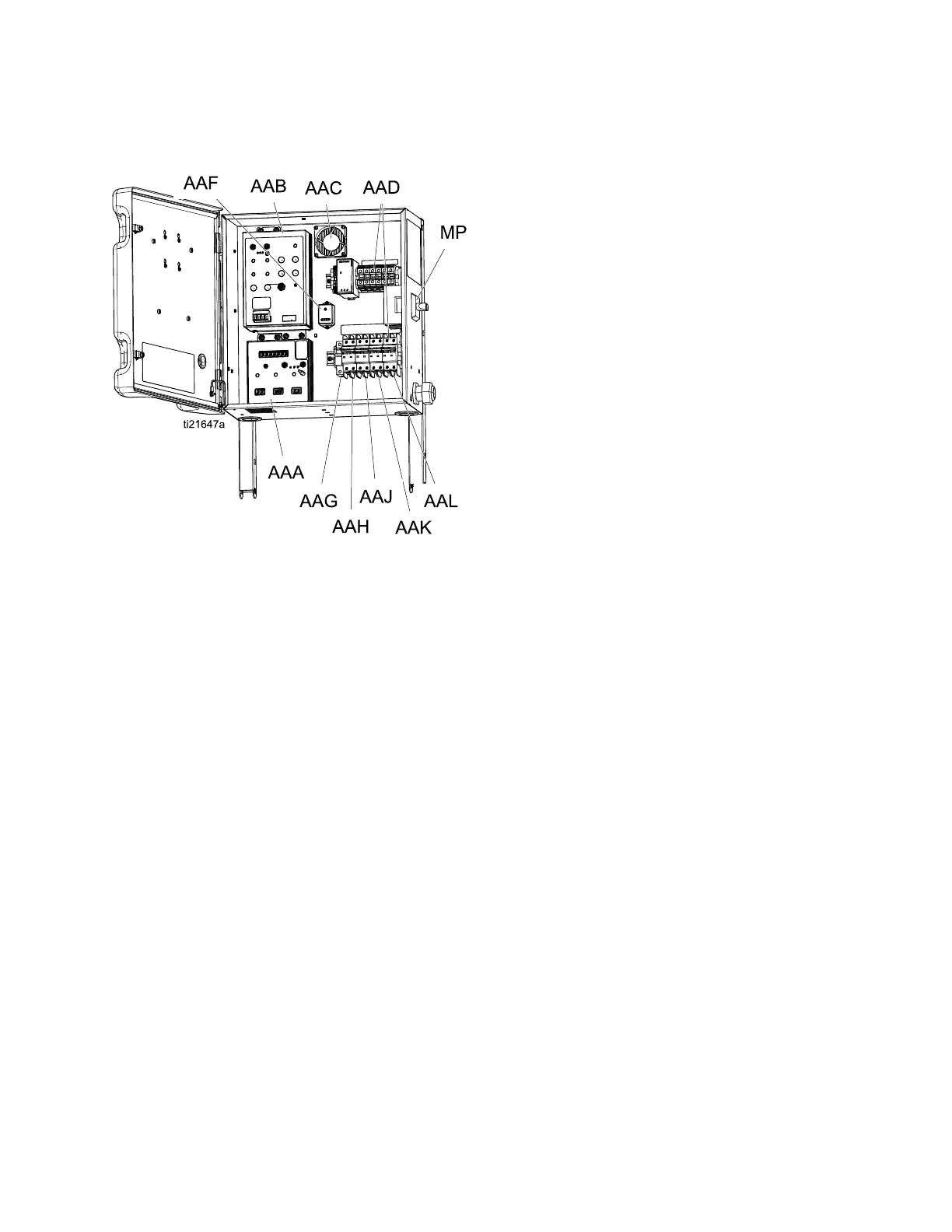

ElectricalEnclosure
Electrical Electrical
Electrical
Enclosure Enclosure
Enclosure
AAATemperatureControlModule(TCM)
AABMotorControlModule(MCM)
AACEnclosureFan
AADWiringTerminalBlocks
AAEPowerSupply
AAFSurgeProtector
AAGHoseBreaker
AAHMotorBreaker
AAJASideHeatBreaker
AAKBSideHeatBreaker
AALTransformerBreaker
MPMainPowerSwitch
333023M23
