Graco Reactor 2 E-XP2 Operation

AdvancedDisplayModule(ADM)Operation
Advanced Advanced
Advanced
Display Display
Display
Module Module
Module
(ADM) (ADM)
(ADM)
Operation Operation
Operation

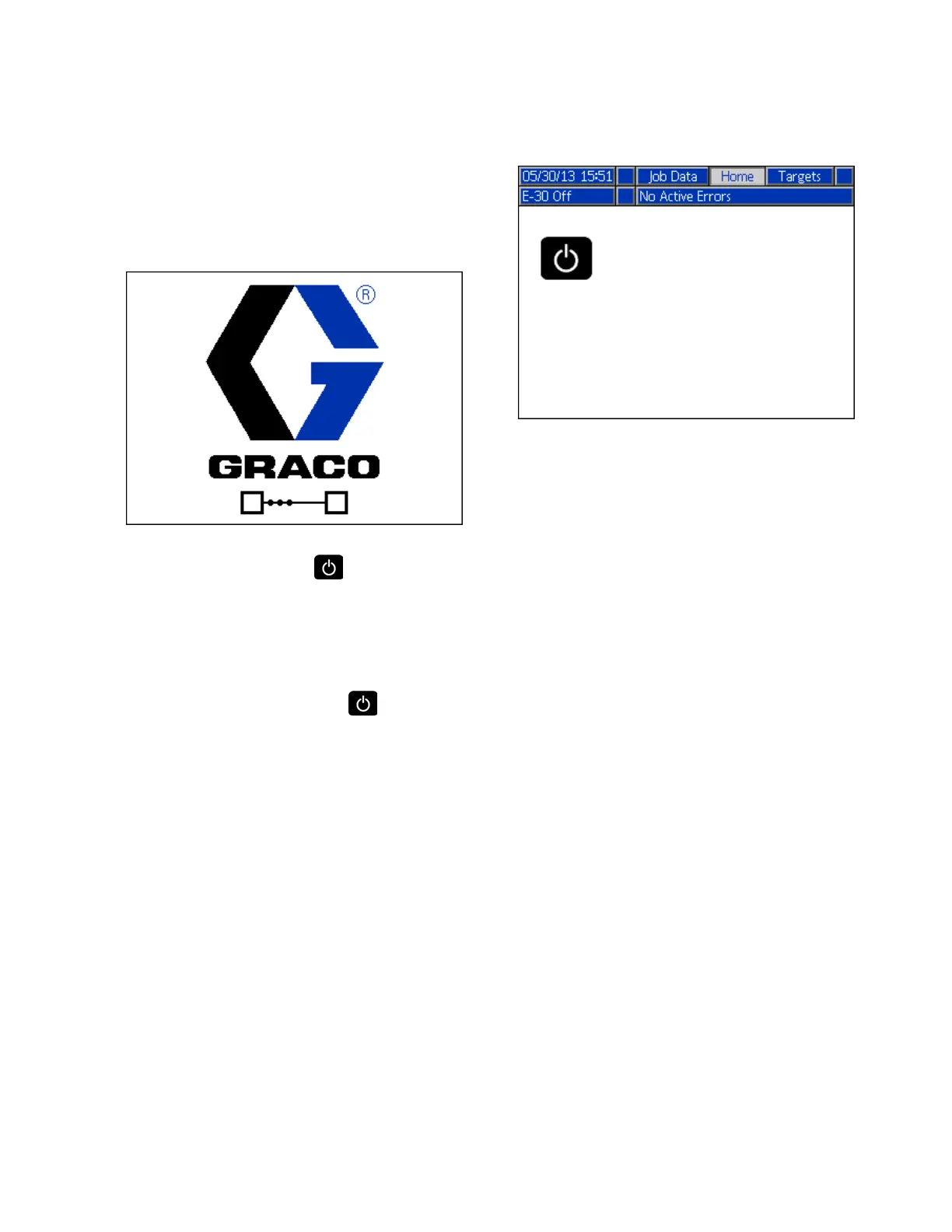

Whenmainpoweristurnedonbyturningthemain
powerswitch(MP)totheONposition,thepowerup
screenwillbedisplayeduntilcommunicationand
initializationiscomplete.
Thenthepowerkeyiconscreenwilldisplayuntilthe
ADMpoweron/offbutton(A) ispressedforthe
󰘰rsttimeaftersystempower-up.
TobeginusingtheADM,themachinemustbeactive.
Toverifythemachineisactive,verifythattheSystem
StatusIndicatorLight(B)isilluminatedgreen,see
AdvancedDisplayModule(ADM),page18.Ifthe
SystemStatusIndicatorLightisnotgreen,press
theADMPowerOn/Off(A)button
.TheSystem
StatusIndicatorLightwillilluminateyellowifthe
machineisdisabled.
Performthefollowingtaskstofullysetupyoursystem.
1.SetpressurevaluesforthePressureImbalance
Alarmtoactivate.SeeSystemScreen1,page35.
2.Enter,enable,ordisablerecipes.See
RecipesScreen,page35.
3.Setgeneralsystemsettings.See
AdvancedScreen1—General,page34.
4.Setunitsofmeasure.See
AdvancedScreen2—Units,page34.
5.SetUSBsettings.See
AdvancedScreen3—USB,page34.
6.Settargettemperaturesandpressure.See
Targets,page39.
7.SetcomponentAandcomponentBsupply
levels.SeeMaintenance,page39.
333023M31
