Graco Reactor 2 E-XP2 Operation

PurgeAirProcedure

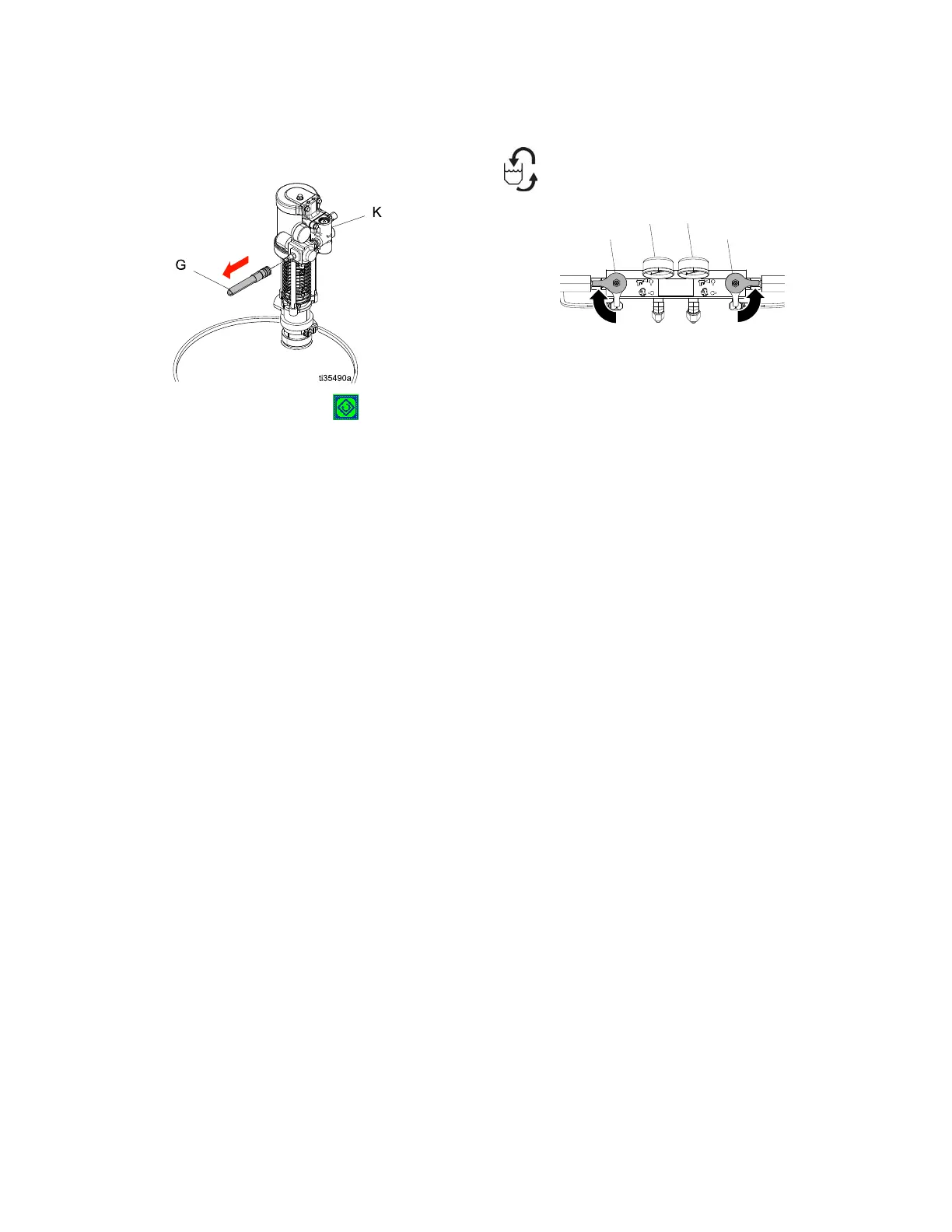

11.Torelieveairpressurefromthefeedpumps,
disconnecttheairsupplylines(G)fromthefeed
pumps(K).
12.Pressthejogmodestopbutton toexitJog
mode.
13.SetthePRESSURERELIEF/SPRAYvalves
(SA,SB)toPRESSURERELIEF/CIRCULATION
.
SA
SB
GA
GB
14.Listenfora“spitting”soundfromthebleed
lines(N)orrecirculationlines(R).See
TypicalInstallation,withoutcirculation,page13,
TypicalInstallation,withsystem󰘱uid
manifoldtodrumcirculation,page14,and
TypicalInstallation,withgun󰘱uidmanifoldto
drumcirculation,page15.Thissoundindicates
thattheReactor2systemstillcontainsunwanted
air.Ifthesystemstillcontainsair,repeatthe
purgeairprocedure.
56333023M
