P a g e | 22

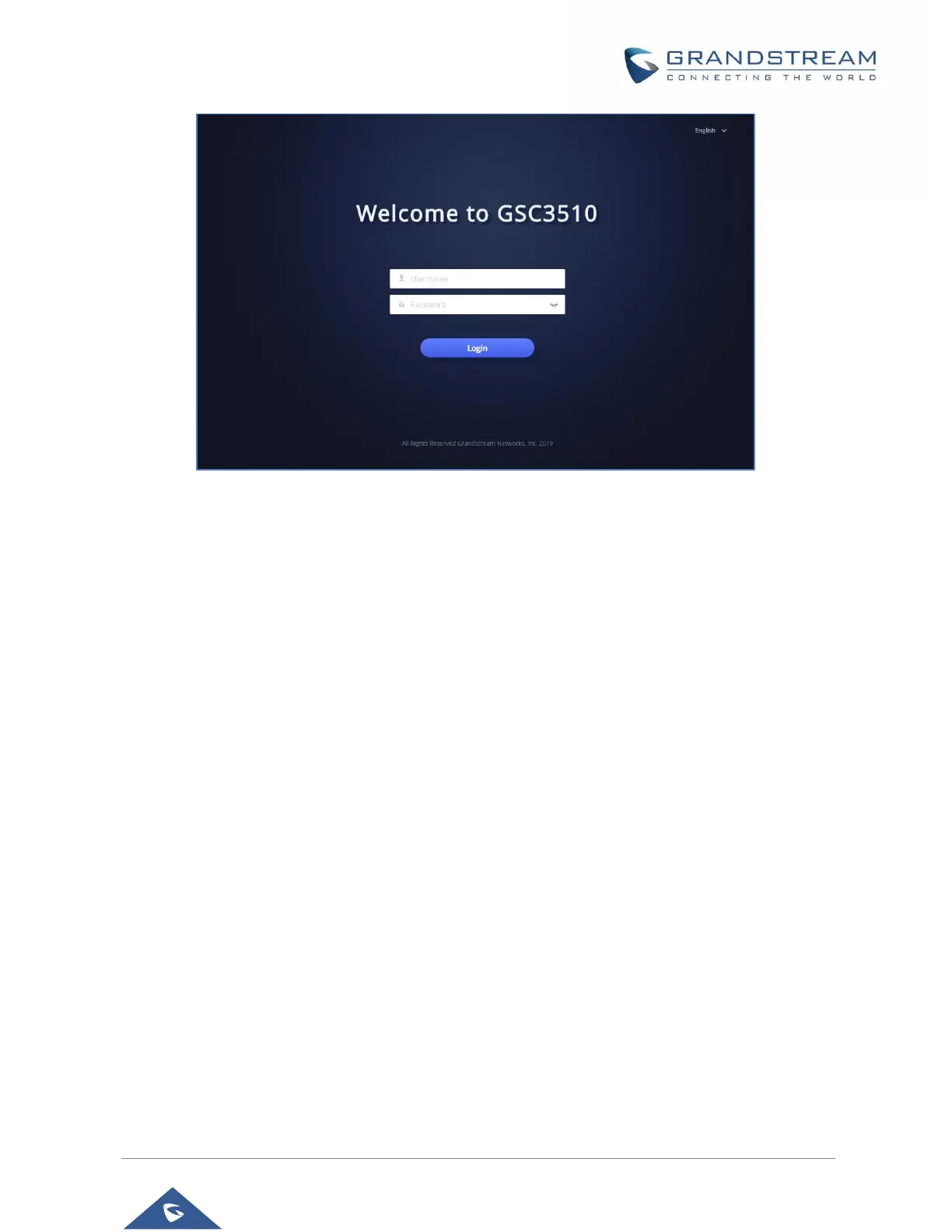

Figure 14: GSC3510 Web GUI – Login
Users can use a computer connected to the same network as the GSC3510/GSC3505 to discover and
access the GSC3510/GSC3505 Configuration Interface using its MAC Address.
Please, refer to the following steps in order to access the GSC3510/GSC3505 Web GUI:
1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on
the package.
2. From a computer connected to same network as the GSC3510/GSC3505, type in the following
address using the GSC3510/GSC3505’s MAC address on your browser: https://gsc_<mac>.local
Example: if a GSC3510/GSC3505 has the MAC address 00:0B:82:xx:xx:xx, this unit can be accessed by
typing https://gsc_000b82xxxxxx.local on the browser.
