Grandstream Networks GSC35 Series User Manual

GSC35XX Series User Manual
Version 1.0.0.15
P a g e | 30
2-pin Multi-Purpose Input Applications
GSC3510/GSC3505 supports 2-pin multi-purpose input that can connect a “Key with LED” or “Normal Key”.
By configuring the sensor settings users can enable the GSC3510/GSC3505 to play an audio file
(.wav/.mp3 format), trigger a SIP call to a pre-configured extension, or to start recording audio locally when
triggered.

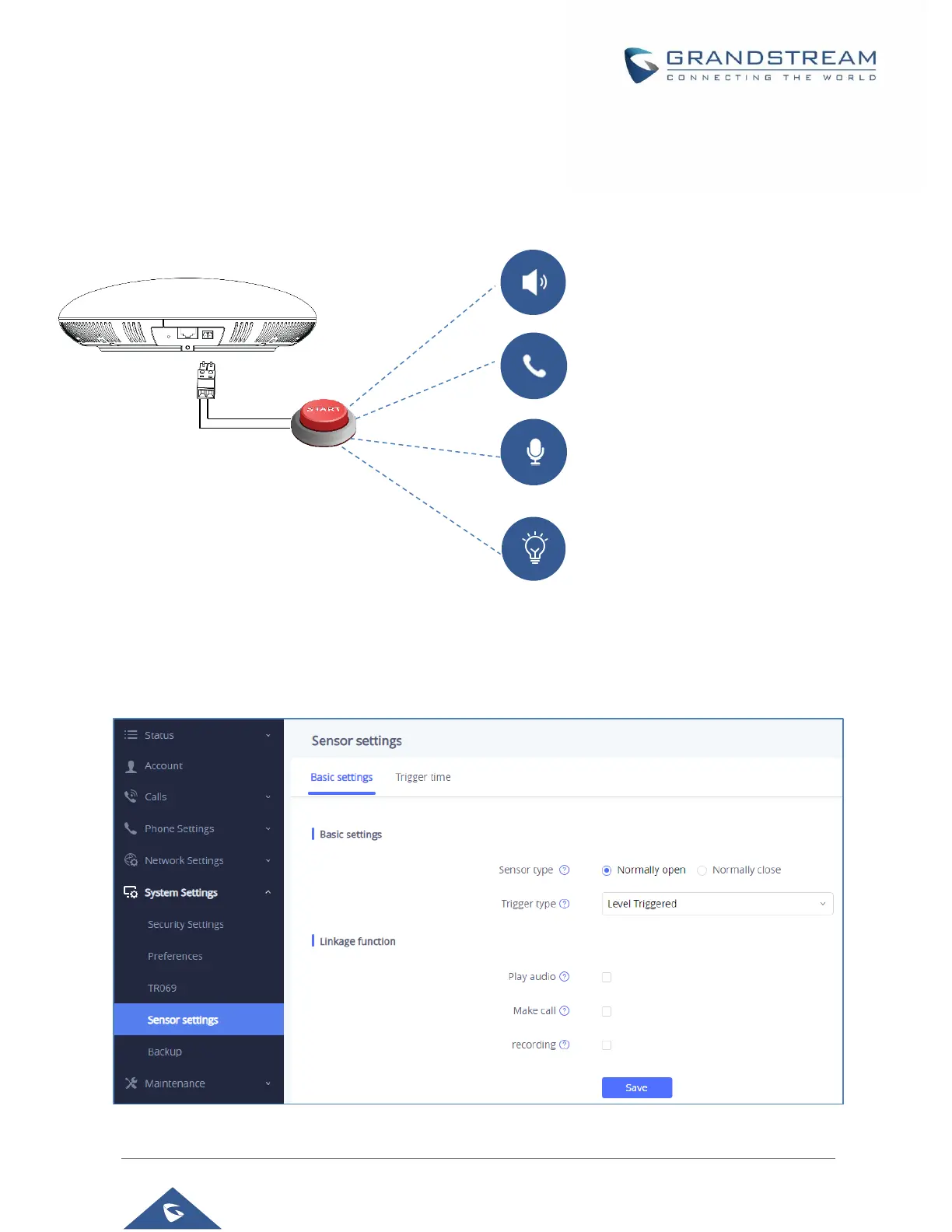

Figure 25: 2-pin Multi-Purpose Input Applications
To configure sensor settings, access to web UI → System Settings → Sensor Setting → Basic Settings:
Figure 26: Sensor Settings
Voice prompt
Play sound when trigger switch,
support upload custom ring/alarm sound
Call dial
Dial the configured number when switch is triggered
Call recording
Record with one key when the switch is triggered
Turn off the lights
The key will trigger the light ON and OFF.
Support parallel connection of an incandescent lamp (with
less than 1W) or an LED lamp (with less than 100mA).
