Grandstream Networks UCM6208 - DHCP Client List; Figure 13: UCM6202 Network Interface Method: Dual; Figure 14: DHCP Client List

P a g e | 47
UCM6200 Series User Manual
• Method: Dual
Both WAN port and LAN port are used for uplink connection. Users will need assign LAN 1 or LAN 2 as the
default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this interface.

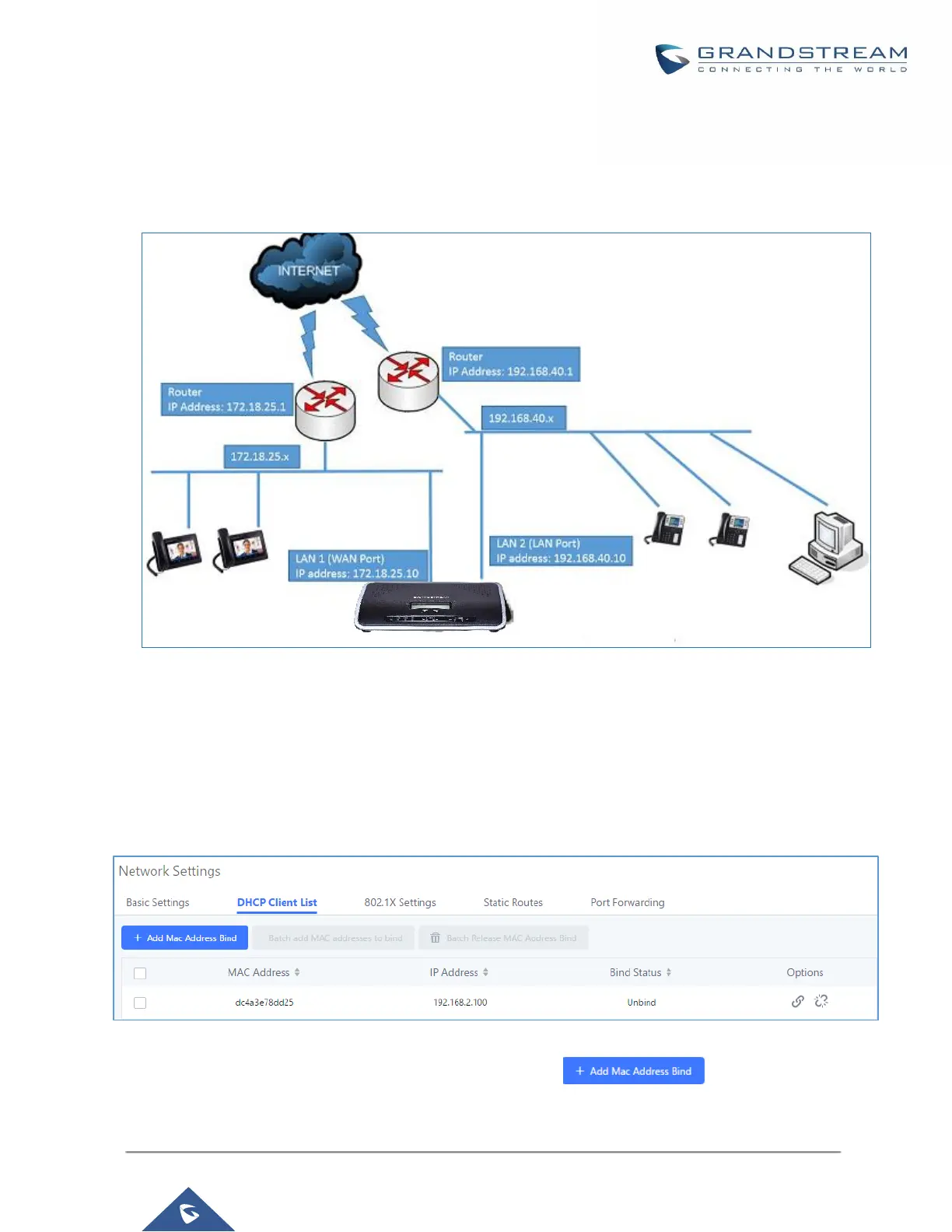

Figure 13: UCM6202 Network Interface Method: Dual
DHCP Client List
This feature can bind MAC to IP addresses on the LAN port when UCM6200 is set to Route mode.
When devices receive IP addresses from LAN port, they will be listed on the webGUI under “System
SettingsNetwork SettingsDHCP Client List” as shown below.
Figure 14: DHCP Client List
User can bind manually a MAC to an IP address by clicking on , the following figure will
pop up.
