Grandstream Networks UCM6208 User Manual

P a g e | 65
UCM6200 Series User Manual
LDAP Server Configurations

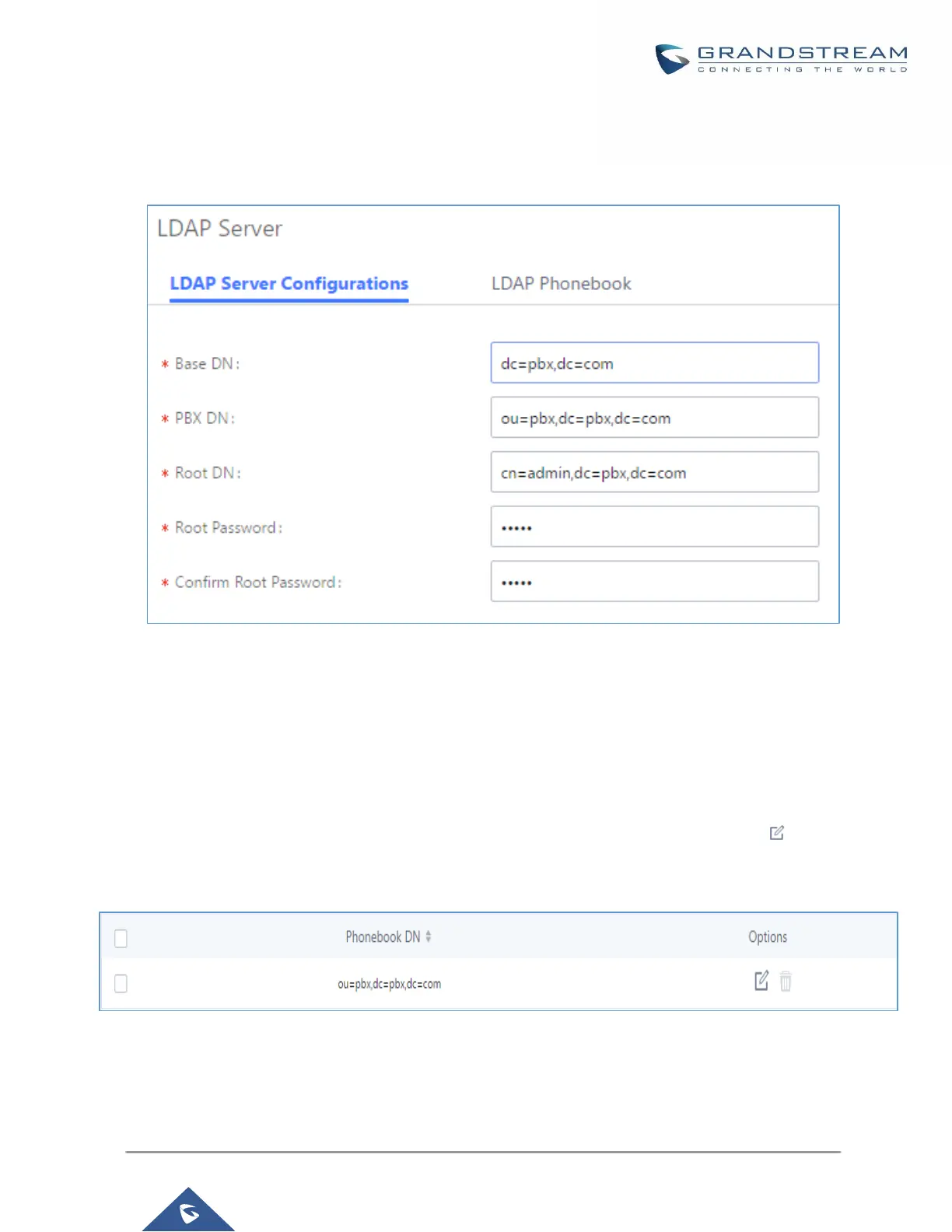

The following figure shows the default LDAP server configurations on the UCM6200.
Figure 32: LDAP Server Configurations
The UCM6200 LDAP server supports anonymous access (read-only) by default. Therefore, the LDAP client
doesn't have to configure username and password to access the phonebook directory. The "Root DN" and "Root
Password" here are for LDAP management and configuration where users will need provide for authentication
purpose before modifying the LDAP information.
The default phonebook list in this LDAP server can be viewed and edited by clicking on for the first
phonebook under LDAP Phonebook.
Figure 33: Default LDAP Phonebook DN

Grandstream Networks UCM6208 Specifications

General

Brand	Grandstream Networks
Model	UCM6208
Category	PBX
Language	English
