P a g e | 86

UCM6200 Series User Manual

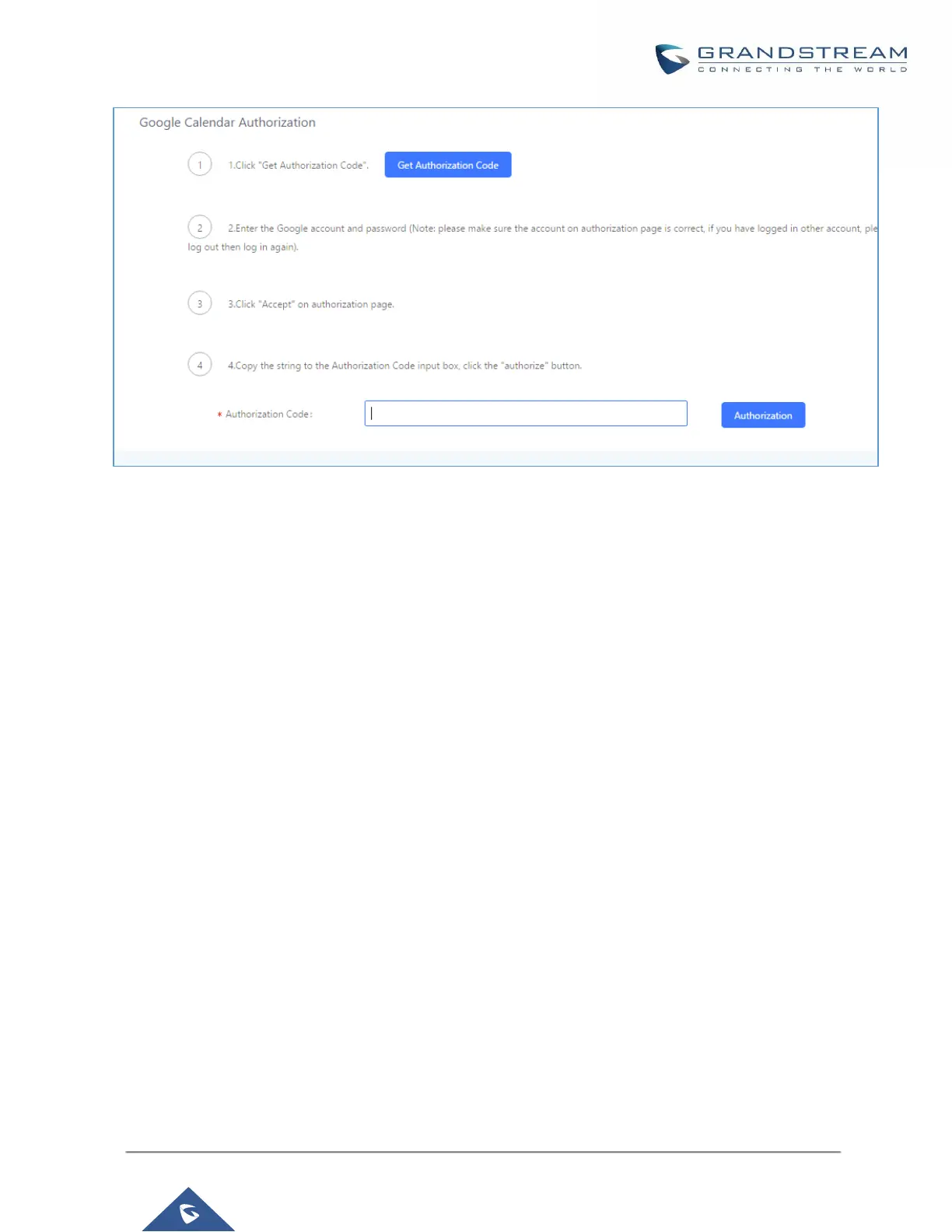

Figure 60: Google ServiceOAuth2.0 Login

6. Now UCM6200 is connected with Google Service.

You can also configure the Status update, which refresh automatically your Google Calendar with the configured

time (m). Note: Zero means disable.

Default Chapter4
