P a g e | 54

UCM6200 Series User Manual

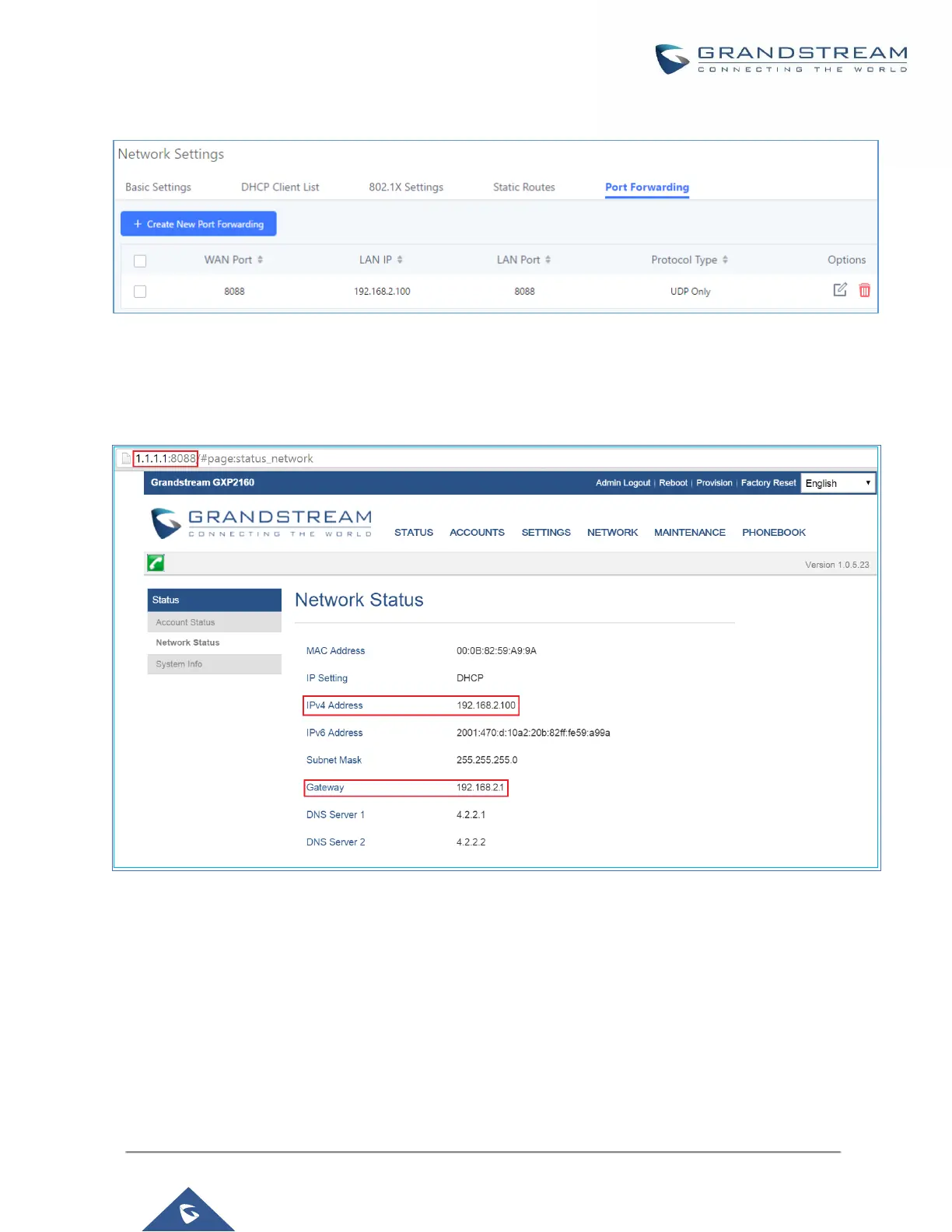

Figure 22: UCM6200 Port Forwarding Configuration

This will allow users to access the GXP2160 Web GUI from public side, by typing in public IP address (example:

1.1.1.1:8088).

Figure 23: GXP2160 Web Access using UCM6202 port forwarding

OpenVPN

Open VPN settings allow the users to configure UCM6200 to use VPN features, the following table gives details about

the various options in order to configure the UCM as OpenVPN Client.
